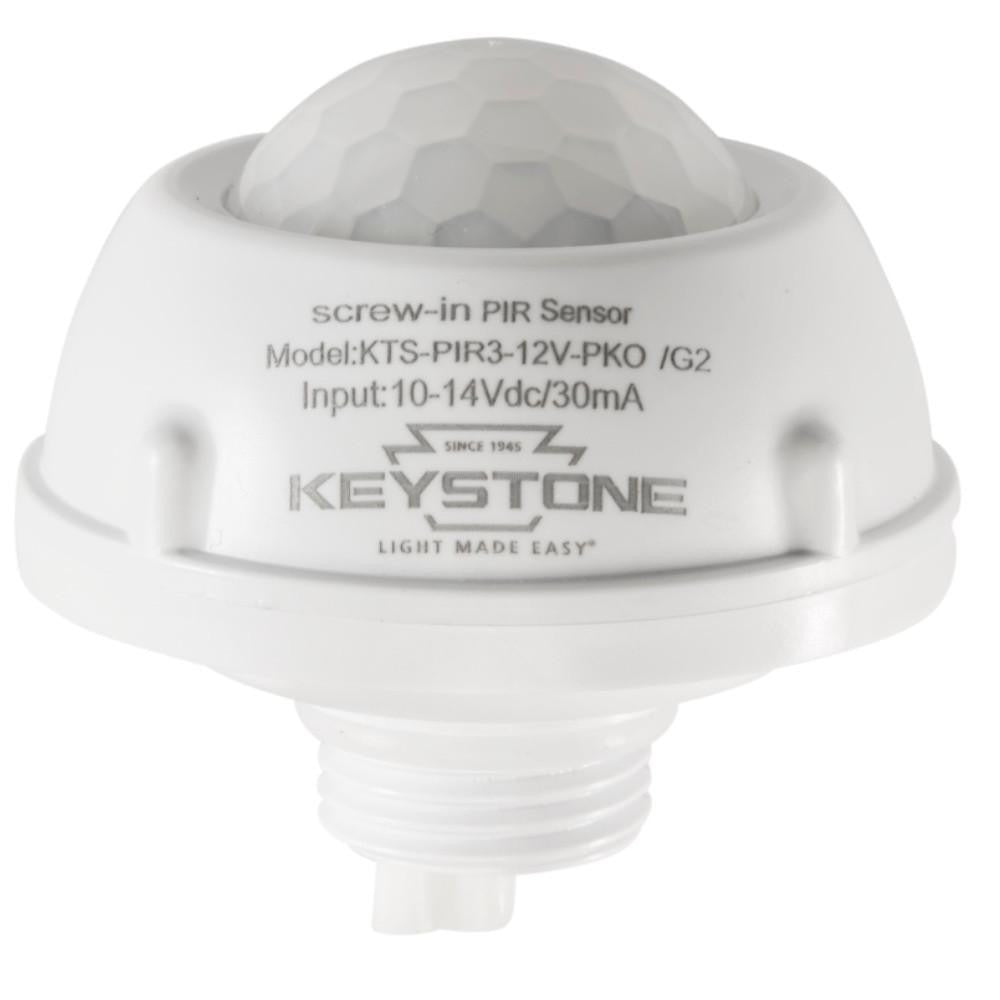

Keystone KTS-PIR3-12V-PKO /G2 Screw-in PIR Occupancy and Daylight Sensor 12V (360° Ceiling)

Product Description

Keystone Technologies KTS-PIR3-12V-PKO /G2 is a screw-in passive infrared (PIR) occupancy and daylight sensor that operates at 12 V DC and provides a 0-10V dimming output for LED drivers. It delivers 360° ceiling coverage with a 46 ft diameter detection range (suitable to 40 ft mounting height), adjustable hold time (10 s to 30 min), configurable daylight threshold (10–100 lux), selectable standby dim levels, remote programming capability, and UL listing.

• 0-10V dimming output compatible with dimmable LED drivers; operates at 12 V DC
• 360° ceiling detection with 46 ft diameter range and up to 40 ft mounting height
• Adjustable hold time (10 s–30 min), daylight threshold (10–100 lux), standby period and selectable standby dim levels; remote programmable

Product Highlights

Screw-in 12 V PIR occupancy and daylight sensor with 0-10V dimming, 360° ceiling coverage, adjustable timing and daylight settings, UL listed.

Product Information

Standard Information

• Brand: KEYSTONE TECHNOLOGIES
• Manufacturer Part Number: KTS-PIR3-12V-PKO /G2
