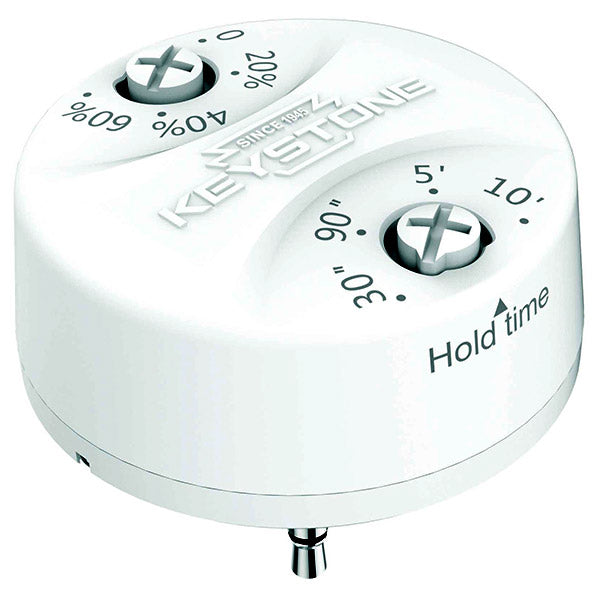

Keystone KTS-PIR1-12V-AUX Smart Port LED Passive Infrared PIR Occupancy Sensor, 12V

Product Description

The Keystone KTS-PIR1-12V-AUX is a Smart Port LED Passive Infrared occupancy sensor designed to operate at twelve volts. This sensor provides reliable functionality in occupancy detection and lighting control. It is suitable for various electrical applications where energy efficiency and automation are important.

• Smart Port LED PIR occupancy sensor for efficient control
• Adjustable standby dimming level with on and off capability
• Designed for twelve volt systems with a standard AUX port

Product Highlights

Compact design with a standard AUX port connection enables quick integration into existing systems.

Product Information

Standard Information

• Brand: Keystone Technologies
• Part Number: KTS-PIR1-12V-AUX

Technical Specifications

• Detection Angle: 120 degrees
• Detection Radius: 13.2 feet
• Input Voltage: 12 V
• Max Mounting Height: 26 feet
• Operating Current: 20 mA
• Operating Frequency: 5.8 GHz
• Output Voltage: 0-10 V
• Transmit Power: 1 mW
