Keystone KTS-MW1-12-AUX Smart Port LED Microwave Occupancy Sensor 12V

Product Description

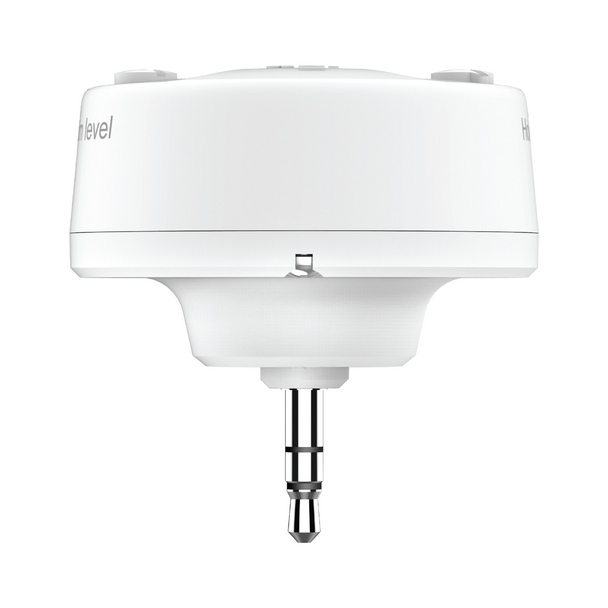

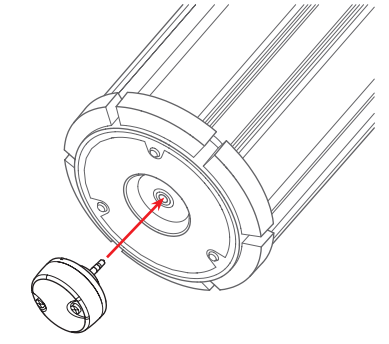

The KEYSTONE KTS-MW1-12-AUX Smart Port LED Microwave Occupancy Sensor is designed for 12V input systems. This sensor features on/off functionality with adjustable standby dimming levels and a 0-10V output. It utilizes a 3.5mm standard AUX port connection method and is rated IP20 for indoor use.

• On/Off with adjustable standby dimming level
• Smart Port LED Microwave Occupancy Sensor
• 120 Degree Detection

Product Highlights

Microwave occupancy sensor with adjustable dimming, 12V input, and IP20 rating.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KTS-MW1-12-AUX

Technical Specifications

• Sensing Technology: MicroWave (MW)
• Input Voltage: 12
• Features: On/Off with adjustable standby dimming level
• Detection Angle: 120
• Dimming: Yes
• Location Rating: IP20
• Manufacturer: Keystone Technologies
• Brand / Product Series: Keystone
• MPN: KTS-MW1-12V-AUX
• Model: KTS-MW1-12V-AUX
• Sensor Type: Motion
• Sensor Technology: Microwave
• Connection: AUX
• Max Mounting Height: 26 ft.

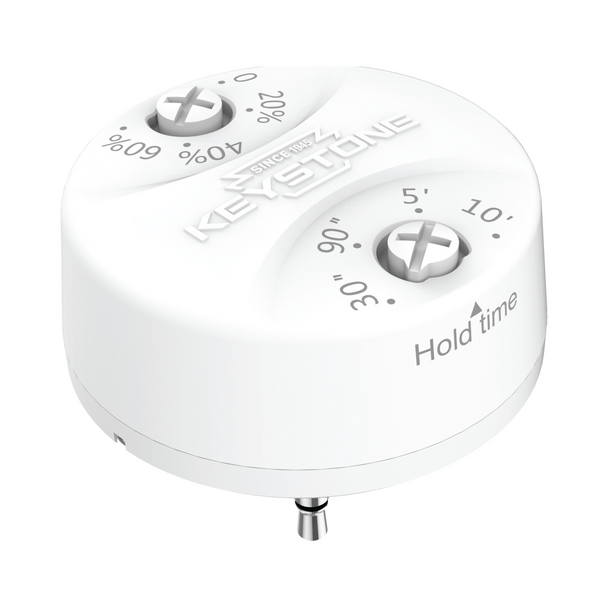

• Settings Adjust: Dial
• Time Delays: 0.5, 1.5, 5, or 10 min
• Sensitivity: N/A
• Standby Levels: 0%, 20%, 40%, or 60%
• Sensor Coverage: 16.5 ft. Radius
