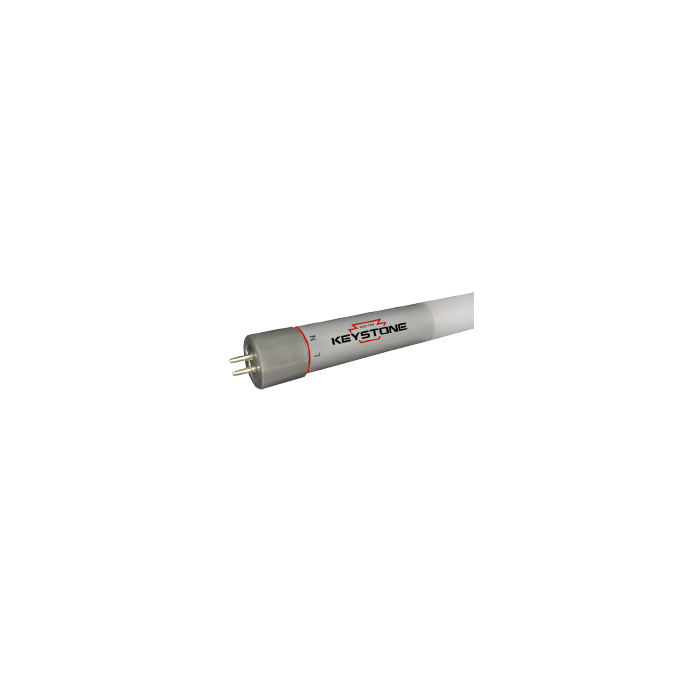

Keystone KTLED25T5HO48GC850DX2/G2 LED T5 Tube 25W 4 feet KT-LED25T5HO-48GC-850-D/G2

Product Description

The KEYSTONE KTLED25T5HO48GC850DX2/G2 is a ballast bypass LED T5 tube designed to replace conventional linear fluorescent T5 lamps. This 25W LED T5 tube operates on 120-277V and delivers 3500 lumens. It features a coated glass design with an NSF rating for food equipment applications and a 5-year manufacturer warranty. The lamp can be single or double-end wired.

• Ballast bypass eliminates the need for ballasts, saving energy and reducing heat.
• Single or double-end wiring provides flexible installation options.
• Coated glass construction is NSF rated for food equipment applications.

Product Highlights

This 25W LED T5 tube is a direct replacement for F54T5/HO fluorescent lamps. It has shatterproof coated glass and an integral isolated driver.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KTLED25T5HO48GC850DX2/G2

Technical Specifications

• Manufacturer: Keystone
• Watts: 25W
• Fluorescent Equivalent: 54W HO
• Lumens: 3500
• Lumens Per Watt: 140
• Volts: 277V
• CRI: 80+
• Color Temperature: 5000K
• Kelvin: 5000K
• Dimmable: No
• Base Type: G5 Miniature Bi-Pin
• Bulb Shape: T5
• Wiring: Single/Double-Ended
• Lens Type: Frosted
• Construction: Coated Glass
• Nominal Size: 48"
• Length (M.O.L.) Inches: 45.19
• Width (Inches): 0.82
• Beam Angle: 240°
• Light Emitting Area: 325°
• Driver: Internal Driver
• Rated Hours: 50,000
• DLC Listed: Yes
• Wet/Damp Rated: Damp Rated
• Maximum Temp: 113°F
• Minimum Starting Temp: -4°F
• Certifications: NSF/UL
• Manufacturer Part #: KT-LED25T5HO-48GC-850-DX2
• Mfg #: KT-LED25T5HO-48GC-850-DX2
• Order Code: KT-LED25T5HO-48GC-850-DX2
• Input Voltage: 120-277V
• Retrofit Type: Direct Wire (Type B)
• Life Hours: 50000
• Shape: T5HO
• Average Life: 50000 hr
• Amperage Rating: 0.21 A at 120 VAC, 0.09 A at 277 VAC
• Bulb Type: LED
• Bulb Base: Miniature Bi-Pin G5
• Diameter: 0.82"
• Part Number: KT-LED25T5HO-48GC-850-DX2 /G2
• Certificate: cUL/UL Listed, NSF, UR Listed, RoHS Compliant, FCC
• Connection Type: Direct Wire
• Efficacy: 140 lm/W
• Lamp Base: G5
• Maximum Voltage: 120V-277V
• Product Dimensions: 45.24-in (L)
• UPC: 843654130606
• Min Operating Temp: -4 Degrees F
