Keystone Ktld-20-Uv-Sc730-56-Vdim-Af4/Usb Programmable Led Driver 20W

Product Description

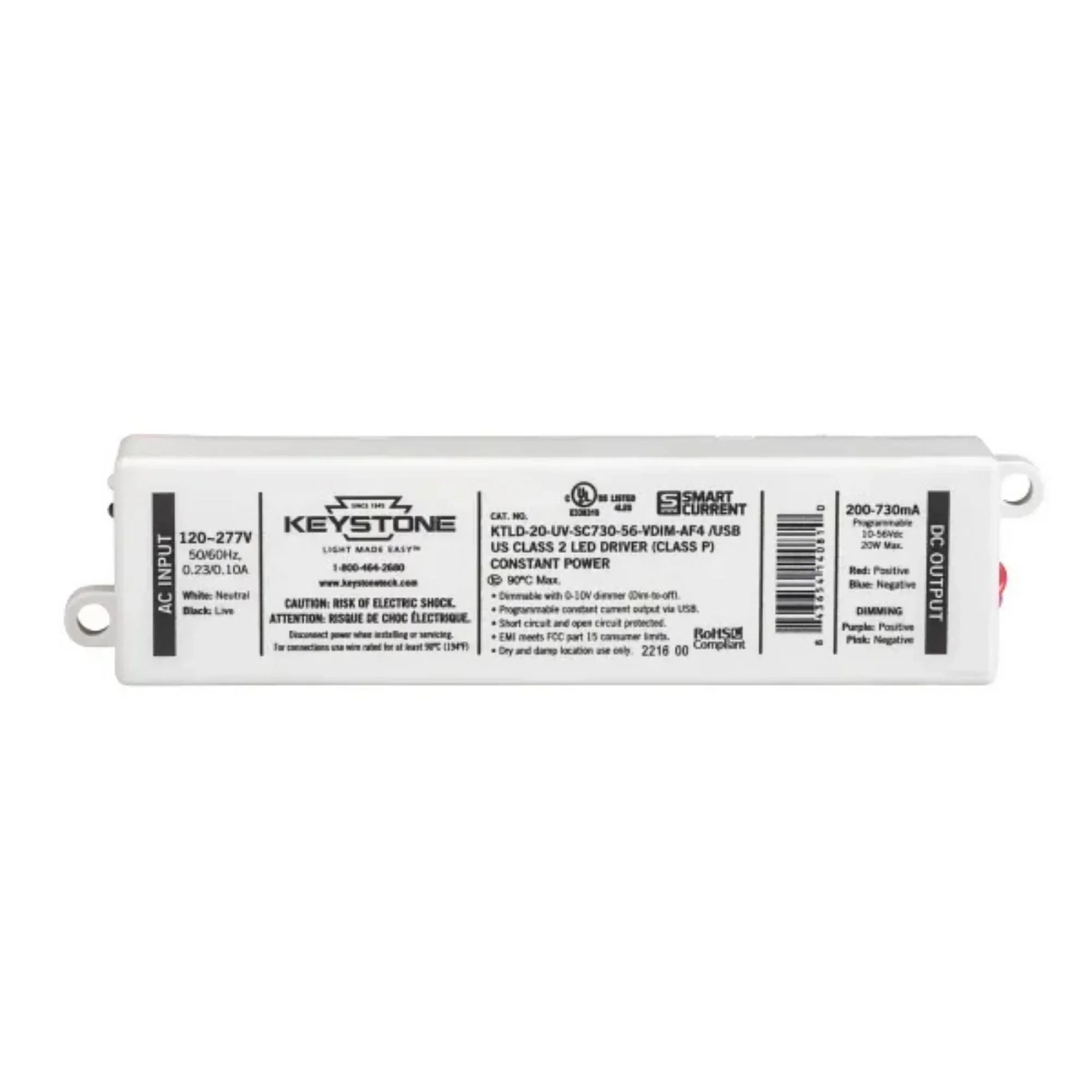

The KEYSTONE KTLD-20-UV-SC730-56-VDIM-AF4/USB is a 20W programmable constant current LED driver with a universal 120-277V input. It features a programmable output current from 200-730mA, factory set at 730mA, and an output of 10-56Vdc. It is dimmable with Analog 0-10V down to 1% at max output current.

• Output Power 12 Watt Max
• Programmable Output Current 200-730mA in 10mA increments
• Dimmable with 0 –10V dimmer (down to 1% at max. output current)

Product Highlights

This LED driver meets FCC Part 15 (Class B) consumer limits and has short circuit overload and open load protection. Suitable for dry and damp locations.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KTLD-20-UV-SC730-56-VDIM-AF4/USB

Technical Specifications

• Manufacturer Part No.: KTLD-20-UV-SC730-56-VDIM-AF4
• Brand: Keystone
• Fixture Type: LED
• Driver Type: Constant-Current-Programmable
• Input Voltage: 120-277V (Universal)
• Max Output Power: 20W
• Max Output Current: 730mA
• Output Current Factory Setting: 730mA
• Output Current Programmable Range: 200-730mA
• Max Output Voltage: 56V
• Output Voltage Range: 10-56V
• Dimming: Analog (0-10V)
• Location Rating: Dry/Damp
• UL Class: Class 2
• Case Size: 10
• Certificate: cUL/UL Listed, FCC, RoHS Compliant, FCC
• Wattage: 20W
• UPC: 843654140810
• Output Voltage: 10-56V DC
• Wattage Rating: 20.0W
• Product Rating: Dry Rated

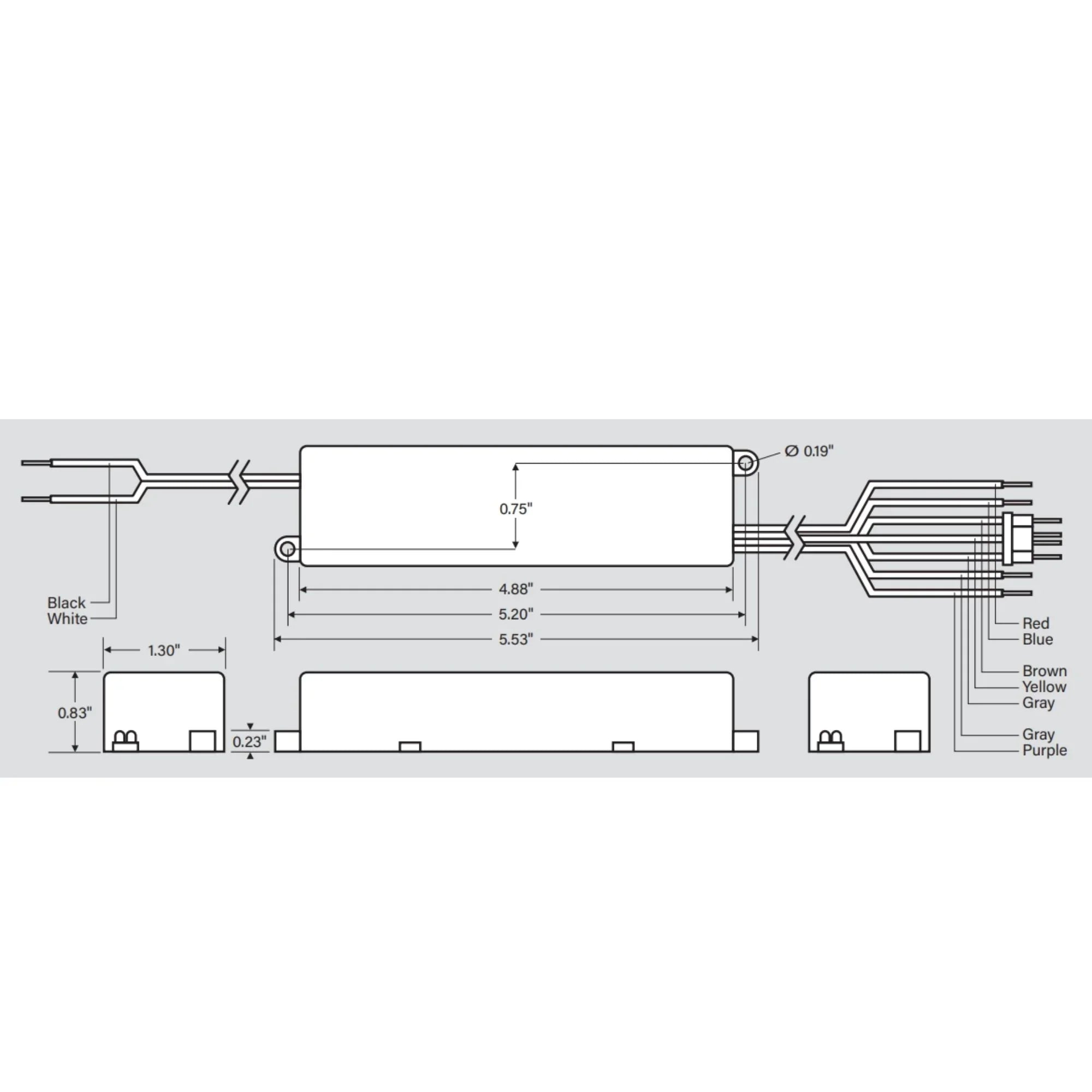

• Length/Depth: 5.53 in
• Width/Diameter: 1.3 in
• Height: 0.83 in
