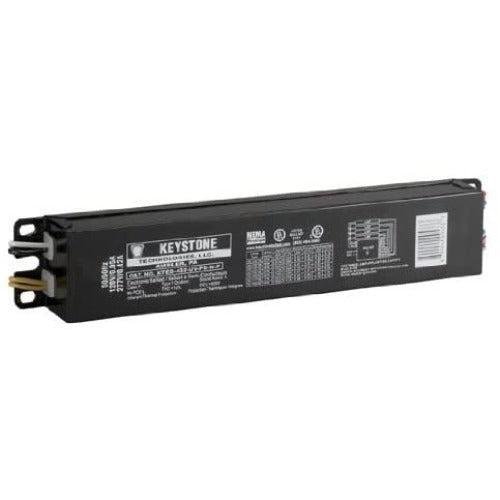

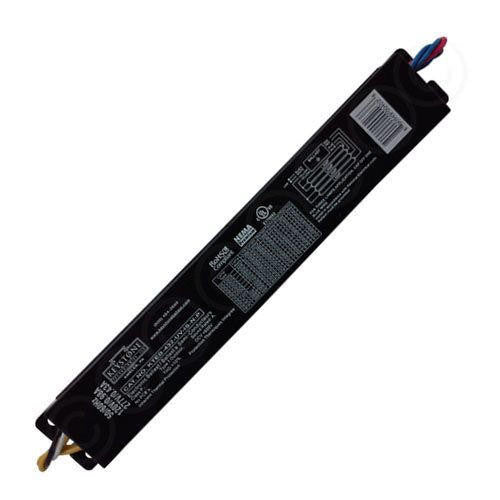

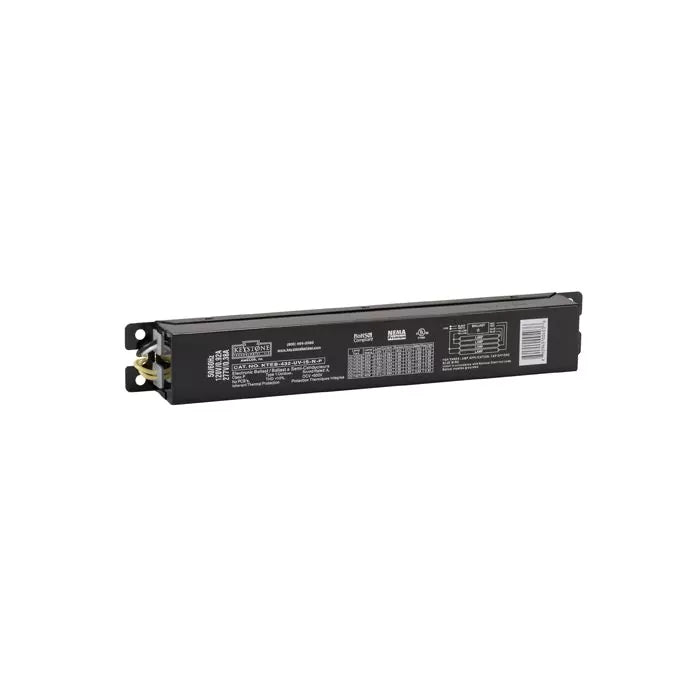

Keystone KTEB-432-UV-IS-N-P T8 Fluorescent Ballast - Instant Start

Brand: KEYSTONE
SKU: KTEB-432-UV-IS-N-P
Availability: Out Of Stock
$36.49
$36.49
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The KEYSTONE KTEB-432-UV-IS-N-P is an electronic fluorescent ballast with universal 120-277V input, designed to operate (3 or 4) F32T8, F25T8, F17T8, F15T8, and F40T8 lamps with instant start. It is suitable for use in dry and damp locations. This ballast meets FCC Part 18 Class A non-consumer limits and ANSI standards C82.11-2002 and C62.41-2002.

  • Operates 3 or 4 F32T8, F25T8, F17T8, F15T8, F40T8 Lamps
  • Instant Start
  • Input Voltage 120 to 277 VAC

Product Highlights

This electronic ballast is UL Listed and RoHS compliant, ensuring safety and environmental standards are met.

Product Information

Standard Information

  • Brand: KEYSTONE
  • Manufacturer Part Number: KTEB-432-UV-IS-N-P
  • Country of Origin: Unknown
Technical Specifications
Starting Type
Instant Start
Circuit Type
HPF
Lamp Type
F17T8/F25T8/F32T8
Number of Lamps
4
Lamp Wattage
32 W
Input Voltage
120 to 277 VAC
Input Current
0.93/0.72/0.49 Ampere at 120 VAC, 0.4/0.32/0.22 Ampere at 277 VAC
Input Power
59/87/112 W at 120 VAC, 58/85/108 W at 277 VAC
Frequency Rating
50/60 Hz
Power Factor
0.98
Ballast Factor
0.88/0.89/0.93
Maximum THD
10 Percent
Wiring
Parallel
Minimum Starting Temperature
-18 Deg C
Maximum Case Temperature
75 Deg C
Crest Factor
1.7
Ballast Efficacy Factor
0.8/1.02/1.57 at 120 V, 0.81/1.05/1.59 at 277 V
Case Material
Metal
Mounting Size
8.9 Inch
Open Circuit Voltage
600 V
Applicable Standard
ANSI C82.11-2002 and C62.41-2002
Manufacturer
KEYSTONE TECHNOLOGIES
Brand
Keystone
RoHS Compliant
True
Sound Rated
A
Operating Temperature
0oF, -18oC -> 167oF, 75oC
Type
Type HL
Amperage Rating
0.93 A
Start Type
Instant
Temperature Rating
167 deg F
Input Frequency
50/60 Hz
Lamps
(3 or 4) F32T8 32W, (3 or 4) F32T8 30W, (3 or 4) F32T8 28W, (3 or 4) F32T8 25W, (3 or 4) F25T8 25W, (3 or 4) F17T8 17W, (3) F40T8 40W 3, (3 or 4) PLL 25W, (3 or 4) PLL 28W, 3 PLL 40W
Maximum Temperature
167 Degree F
Minimum Start Temperature
0 Degree F
Mount
8.90
Voltage
120/277V
Catalog No
11045
Model Name
KTEB-432-UV-IS-N-P
Cooling Method
Air
Compatible Brand
Keystone
Electronic Ballast
Electronic Ballast
Model
KTEB-432-UV-IS-N-P
Manufacturer Part Number
KTEB-432-UV-IS-N-P
Compatible Model
KTEB-432-UV-IS-N-P
Material
Steel
MPN
KTEB-432-UV-IS-N-P / KTEB432UVISNP
UPC
890949004036
Condition
New
Fixture Type
Electronic Fluorescent
Operates
F17T8, F25T8, F32T8, F40T8
Number Of Lamps
3, 4
Ballast frequency for all listed lamps
> 40kHz
Our Part No
KTEB-432-UV-IS-N-P
Mfr Part #
KTEB-432-UV-IS-N-P
