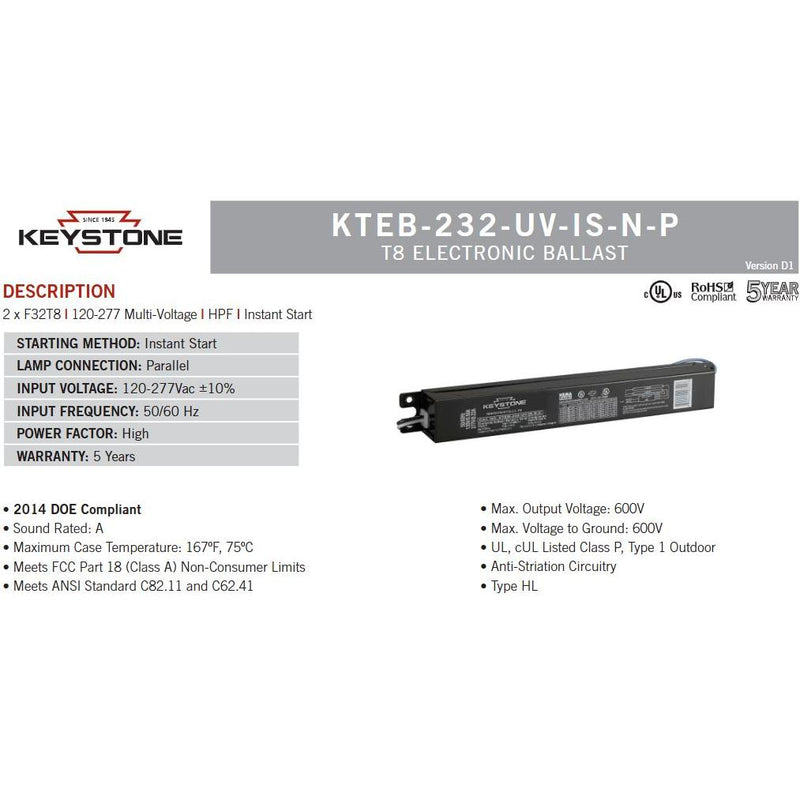

Keystone KTEB-232-UV-IS-N-P KTEB-232-UV-IS-N-P-DP 60W Max, 2 Lamp T8 Ballast

Product Description

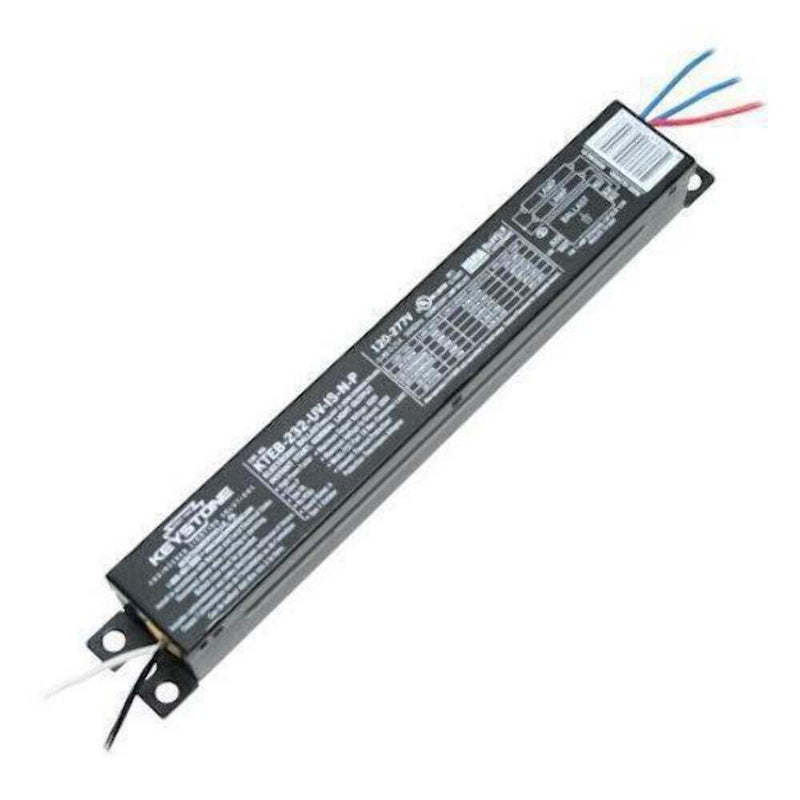

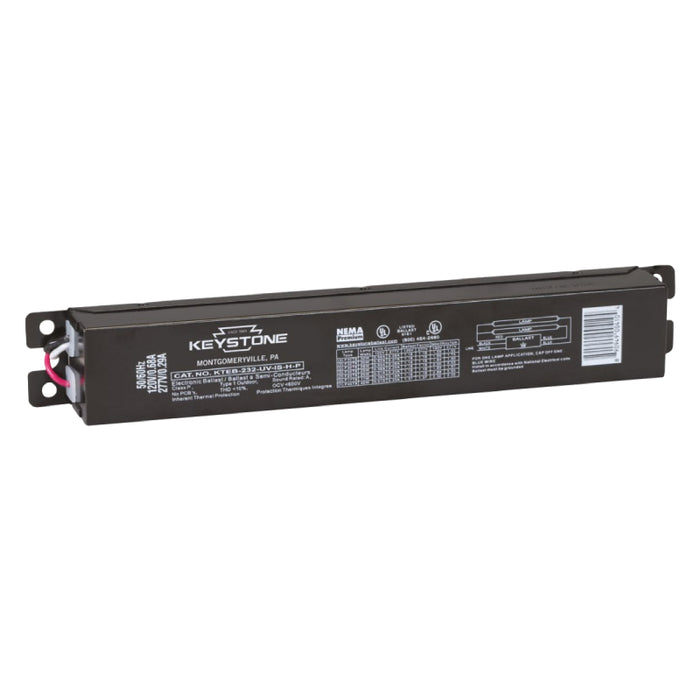

The KEYSTONE KTEB-232-UV-IS-N-P KTEB-232-UV-IS-N-P-DP is a fluorescent electronic ballast with an instant start. This HPF circuit type ballast is suitable for F32T8/F17T8/F25T8 lamps and supports two lamps with a 32 W lamp wattage. It features an input voltage of 120 to 277 VAC and is RoHS compliant.

• Fluorescent Electronic Ballast
• Instant Start
• HPF Circuit Type

Product Highlights

This ballast is designed for efficient and reliable performance in various lighting applications.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KTEB-232-UV-IS-N-P
• Country of Origin: Unknown

Technical Specifications

• Starting Type: Instant Start
• Circuit Type: HPF
• Lamp Type: F32T8/F17T8/F25T8
• Number of Lamps: 2
• Lamp Wattage: 32 W
• Input Voltage: 120 to 277 VAC
• Input Current: 0.42/0.36/0.22 Ampere at 120 VAC, 0.11/0.16/0.18 Ampere at 277 VAC
• Input Power: 120W (2-lamp F32T8)
• Frequency Rating: 50/60 Hz
• Power Factor: >0.97
• Ballast Factor: 0.88/0.89/0.91
• Maximum THD: 10 Percent at 120 VAC, 10/12 Percent at 277 VAC
• Wiring: Parallel
• Minimum Starting Temperature: -18 Deg C
• Maximum Case Temperature: 75 Deg C
• Maximum Ambient Temperature: 40 Deg C
• Crest Factor: 1.7
• Ballast Efficacy Factor: 1.62/2.05/2.96 at 120 V, 1.64/2.06/2.94 at 277 V
• Mounting Size: 9 Inch
• Applicable Standard: ANSI C82.11 and C62.41
• Sound Rated: A
• Operating Temperature: 0oF, -18oC -> 167oF, 75oC
• Features: Instant Start
• Lamps Operated: 2 x F32T8 (or compatible T8 lamps)
• Start Type: Instant Start
• Total Harmonic Distortion (THD%): ≤10%
• Mounting Length: 9.00”
• Case Material: Metal
• Light Source: Fluorescent
• Bulb Type: F32T8, F25T8, F17T8, or F40T8
• Maximum Temperature: 167 Degree F
• Minimum Start Temperature: 0 Degree F
• Mount: Mounting Feet
• Type: Electronic
• Voltage: 120-277V
• Primary Lamp Type: F32T8 (32W)
• Wattage: 32 W
• Voltage Rating: 120 - 277 V
• Amperage Rating: 0.48 A at 120 V, 0.21 A at 277 V
• Total Harmonic Distortion: 10%
• Temperature Rating: 167 deg C
• RoHS Compliant: True
