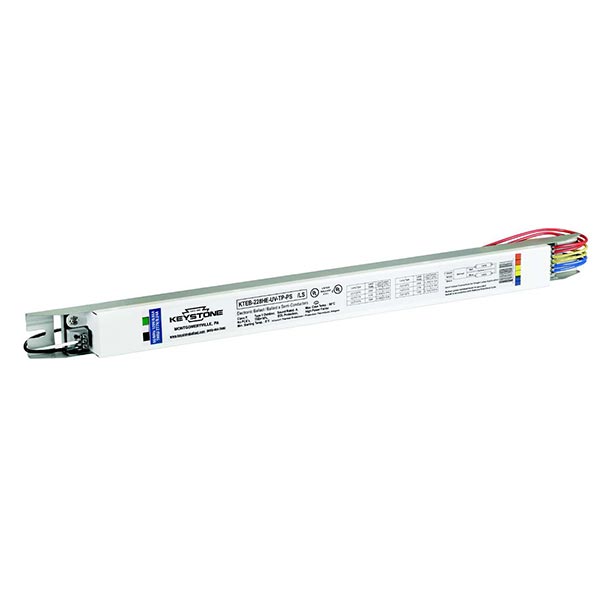

Keystone KTEB-228HE-UV--PS-CP Fluorescent 2W High Efficiency Electronic Ballast

Product Description

The Keystone Technologies KTEB-228HE-UV--PS-CP is a fluorescent electronic ballast designed for high efficiency. Its dimensions measure sixteen point eighty-nine inches in length, one point twenty inches in width, and one inch in height.

• 2014 DOE Compliant
• Sound Rated: A
• Minimum Starting Temperature: 0°F, -18°C

Product Highlights

Ideal for many lighting applications while providing energy savings and improved performance.

Product Information

Standard Information

• Brand: Keystone Technologies
• Part Number: P4510

Technical Specifications

• Case Style: U4
• Enclosure: Class P, Type 1 Outdoor
• Frequency: 50/60 Hz
• Height: 1.0 inches
• Lamp Connection: Series
• Lamp Type: T5 Fluorescent
• Length: 16.89 inches
• Maximum Case Temperature: 194°F
• Minimum Starting Temperature: 0°F
• Mounting: 16.02 inches
• Power Factor: High
• Sound Rated: A
• Standard Lead Lengths: 31 inches (Black, White), 28 inches (Blue, Red), 48 inches (Yellow)
• Starting Method: Program Start
• Voltage: 120-277 VAC
• Warranty: 5 years
• Width: 1.20 inches
