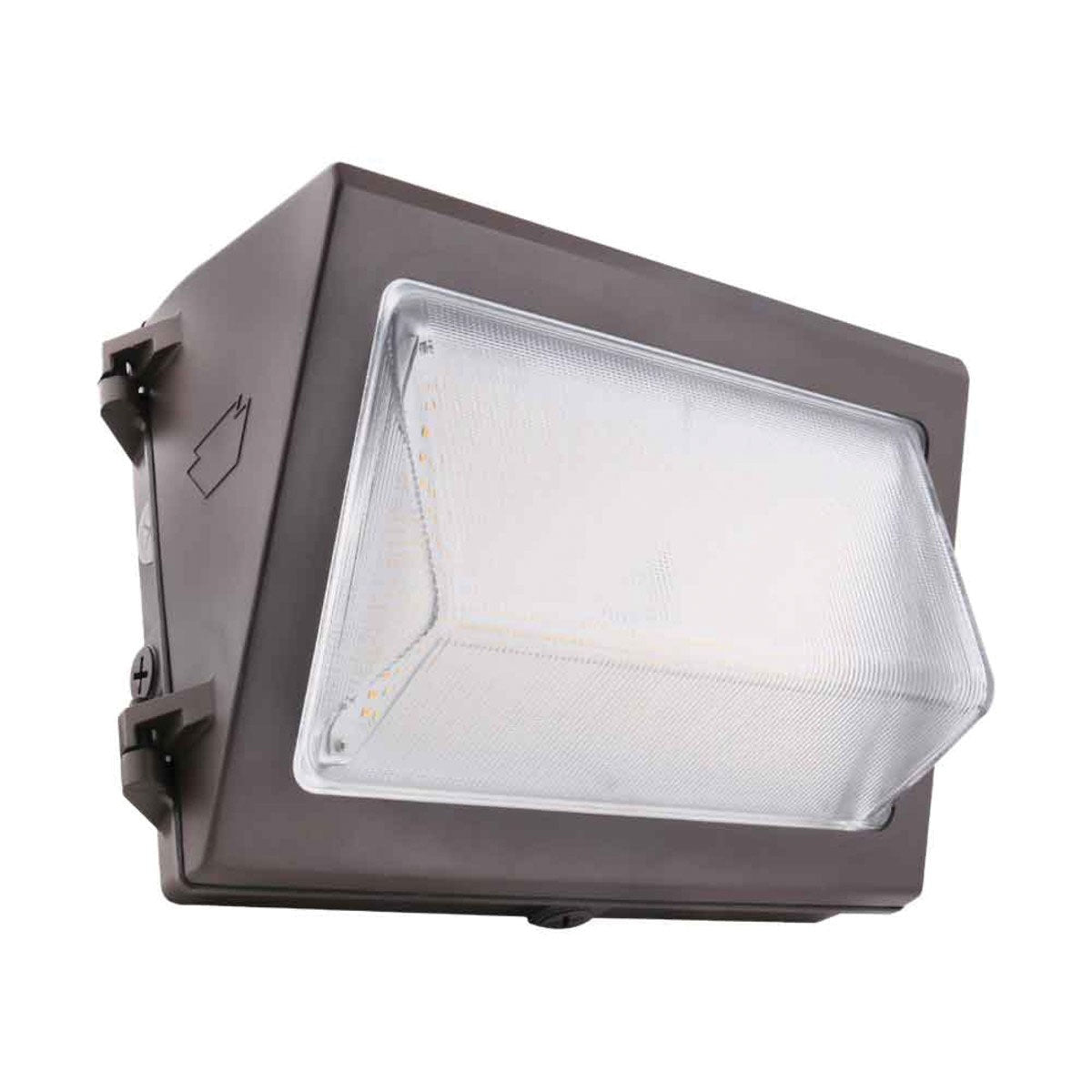

Keystone KT-WPLED80-M1-8CSB-VDIM LED Wall Pack 80W

Product Description

The KEYSTONE KT-WPLED80-M1-8CSB-VDIM is an 80W LED Wall Pack featuring color selection and a traditional open face medium housing. Operating on 120-277V input, it offers 3000K, 4000K, and 5000K color temperature options and is 0-10V dimmable. Designed for one-for-one replacements to upgrade to energy-efficient LED lighting, it matches the appearance of legacy HID fixtures.

• Traditional design matches appearance and light distribution pattern of legacy HID, optimized for one-for-one replacements
• Heavy duty, die cast aluminum housing with (5) available 1/2 Inch threaded conduit hubs: (1) on back and (1) on all four sides
• Built-in dusk-to-dawn photocell behind translucent 3/4 Inch threaded plug with anti-yellowing agent

Product Highlights

This LED wall pack is ideal for building perimeters, pathways, loading docks, and general security lighting, offering energy savings and controllability with dimming drivers and a dusk-to-dawn photocell.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-WPLED80-M1-8CSB-VDIM
• Country of Origin: China

Technical Specifications

• Catalog Number: KT-WPLED80-M1-8CSB-VDIM
• Manufacturer: Keystone Technologies
• Brand: Keystone
• Country of Origin: China
• Made in USA: No
• Light Technology: LED
• Lumens: 10800
• UPC: 843654129037
• GTIN: 00843654129037
• Wattage: 80 W
• Power Factor: >0.95
• Mounting: Wall
• Lamp Wattage: 80 Watt
• Temperature Rating: -4 to 113 deg F
• For Use With: Building Perimeters, Pathways, Loading Docks and Other General Outdoor Applications
• Finish: Bronze
• Environmental Conditions: Outdoor, Wet Location
• Dimmable: Yes
• CRI: 80.0000
• Construction: Die Cast Aluminum
• Color Temperature: 3000K/4000K/5000K
• Style: Traditional, Non-Cutoff
• Voltage Rating: 120 - 277 Volt
• Type: Medium
• Standards: cULus Listed, DLC Premium Qualified, FCC Part 15, Part B, Class A, RoHS Compliant
• Shade Type: Frosted Borosilicate Glass Lens
• Lamp Type/Designation: LED
• Lamp Included: No
• Fixture Wattage: 80 Watt
• Driver Type: 0 - 10 Volt Dimming
• Average Life: 50000 Hour
• Collection: XFiT
• Manufacturer Name: Keystone
• Feature8: Actual CRI is >80
• Energy Star Flag: No
• Manufacturer Part Number: KT-WPLED80-M1-8CSB-VDIM
• UNSPSC: 39111600
• Includes: Dip Switch
• Metal Halide Equivalent: 250-320 Watt
• Efficacy: 137-149 lumens / Watt
• Life Rating: 50,000 Hours
• Voltage: 120/208/240/277
• Frequency: 50/60 Hz
• THD: <20%
• Surge Protection: N/A
• Operating Temperature: -40°F to 122°F
• Photocontrol: Integrated, On / Off.
• Housing Material: Aluminum
• Lens Material: Glass
• IP Rating: IP65
• Location Rating: Wet
• Length: 7.32 in.
• Width: 14.37 in.
• Height: 9.23 in.
• UL: Yes
• ETL: No
• RoHS: No
• FCC: Yes
• DLC: Yes
• DLC ID: P7RBDFAF
• Dark Sky: No
• Input Voltage: 120-277V
