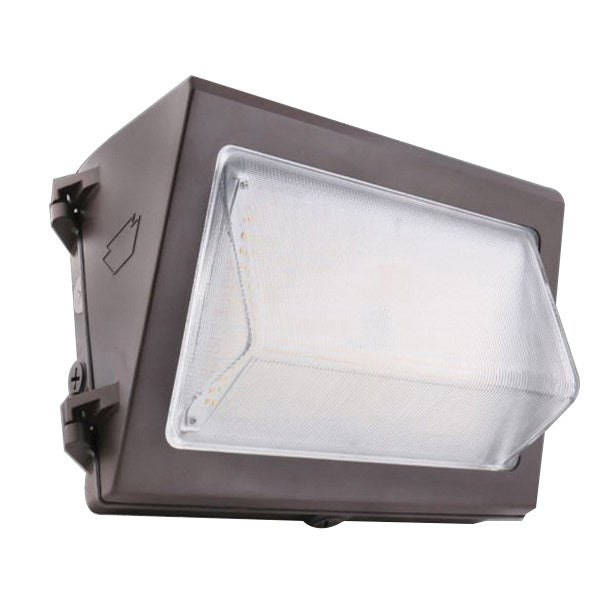

Keystone KT-WPLED55-M1-8CSB-VDIM 55W LED Wall Pack feat. Color Select, Traditional Open Face Medium Housing 120-277V Input 3000K/4000K/5000K

Product Description

The Keystone KT-WPLED55-M1-8CSB-VDIM is a 55-watt LED wall pack designed for outdoor lighting. It features a color-select option and operates with a wide voltage range of 120 to 277 volts. This wall pack delivers high efficiency with luminous output of 6115 lumens and is dimmable using a 0-10V driver.

• Features easy installation with five knockout access points.
• Includes a built-in dusk-to-dawn photocell for energy savings.
• Constructed with heavy-duty die-cast aluminum housing.

Product Highlights

Ideal for upgrading from traditional HID fixtures while maintaining the same footprint, this wall pack provides uniform light distribution and is suitable for use in wet locations.

Product Information

Standard Information

• Brand: Keystone
• Catalog Number: KT-WPLED55-M1-8CSB-VDIM

Technical Specifications

• Wattage: 55 W
• Lumens: 6115
• Voltage Rating: 120 - 277 Volt
• Color Temperature: 3000K/4000K/5000K
• Dimensions: 14.37 inches Width x 7.32 inches Depth x 9.29 inches Height
• Construction: Heavy-Duty Die Cast Aluminum Housing
• Driver Type: 0-10 Volt Dimming
• Average Life: 50000 Hours
• IP Rating: IP65
