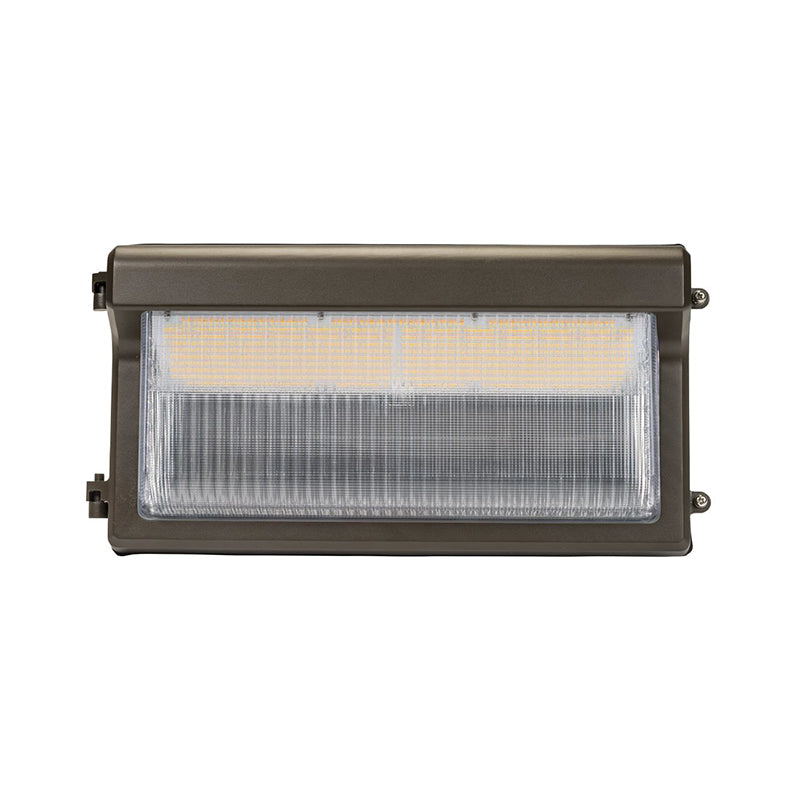

Keystone KT-WPLED120PS-L4-8CSB-VDIM Slim Wall Pack 80/100/120W (Open Face) Replacement for HID

Product Description

Keystone KT-WPLED120PS-L4-8CSB-VDIM is a slim, open-face LED wall pack with field-selectable power (80/100/120W) and selectable color temperature (3000K/4000K/5000K). It operates on 120-277V input, supports 0-10V dimming, and includes a built-in dusk-to-dawn photocell behind a translucent threaded plug. The fixture features a die-cast aluminum housing, borosilicate glass lens, IP65 wet location rating, and certifications including cUL/UL, DLC Premium, and FCC.

• Power select 80/100/120W and color select 3000K/4000K/5000K with universal 120-277V input
• 0-10V dimmable with built-in dusk-to-dawn photocell (translucent 3/4-in threaded plug)
• Die-cast aluminum housing, borosilicate glass lens, IP65 wet location; cUL/UL, DLC Premium, FCC certified

Product Highlights

Field-selectable wattage and CCT, universal voltage, 0-10V dimming, integrated photocell, IP65 rated

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-WPLED120PS-L4-8CSB-VDIM
• Country of Origin: China

Technical Specifications

• Brand: Keystone
• Manufacturer Part Number: KT-WPLED120PS-L4-8CSB-VDIM
• Wattage: 80W / 100W / 120W (field-selectable)
• Power Select: 80W, 100W, 120W
• Color Temperature: 3000K / 4000K / 5000K (selectable)
• CRI: 80
• Lumens: 13,900 lm, 14,300 lm (SEE NOTE: lumen values appear inconsistent with listed efficacy; see removed/notes)
• Efficacy: 147 lm/W
• Life Hours: 50,000 hours
• Input Voltage: 120-277V (universal)
• Dimmable: 0-10V dimmable
• Photocell: Built-in dusk-to-dawn photocell (behind translucent 3/4-in threaded plug)
• Housing: Die-cast aluminum
• Lens: Borosilicate glass lens
• Conduit Hubs: (5) 1/2-inch threaded conduit hubs (one on back and one on each of four sides)
• IP Rating: IP65 (wet location rated)
• Certifications: cUL/UL Listed; DLC Premium; FCC

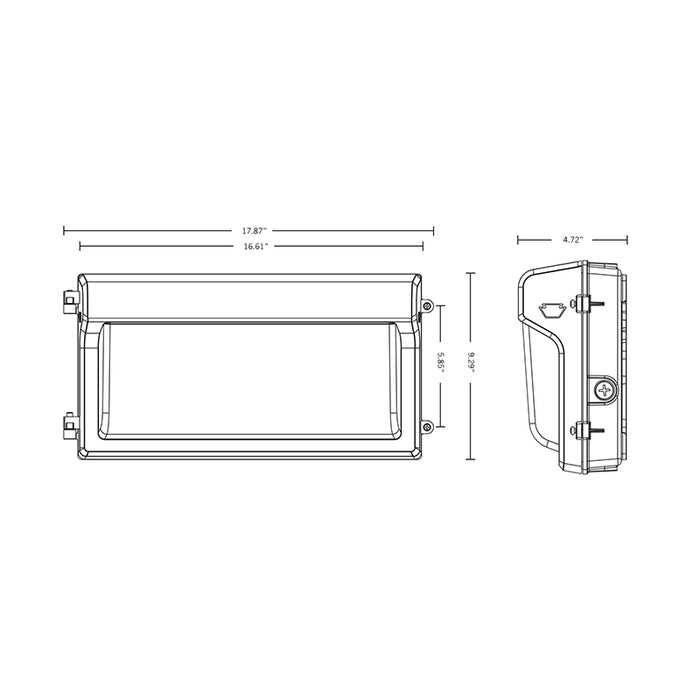

• Dimensions (L x W x H): 4.72" x 17.87" x 9.29" (inches)
• Ambient Operating Temperature: -20°C (-4°F) to 45°C (113°F)
• Knockouts: 5 knockout access points
• Mounting/Application: One-for-one replacement for mid-size HID wall packs; outdoor wall-mounted illumination
• UPC: 843654155555
