Keystone KT-WDLED8-4A-9CSF-FDIM-G 4in Gimbal Wafer Downlight 8W

Product Description

The KEYSTONE KT-WDLED8-4A-9CSF-FDIM-G is a 4in Gimbal Wafer Downlight featuring color selection. This 8W downlight offers adjustable color temperatures of 2700K, 3000K, 3500K, 4000K, and 5000K with a 90 CRI and 120V input. It features phase dimming and a remote driver for easy installation and use in new construction, remodel, or retrofit applications.

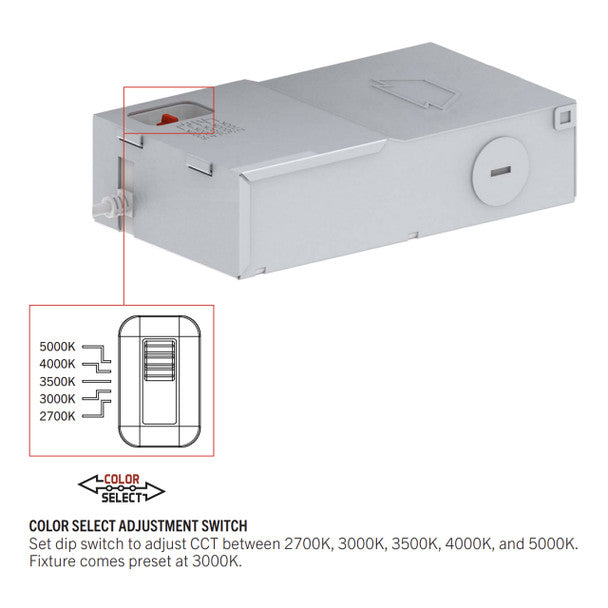

• Features Color Select technology for adjustable color temperatures.
• Gimbal models have a 25° vertical tilt and 355° horizontal rotation.
• Long-life LEDs are rated for 50,000 hours.

Product Highlights

This 8W, 4in downlight is easy to install and customize with adjustable color temperatures and directional lighting control.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-WDLED8-4A-9CSF-FDIM-G

Technical Specifications

• Watts: 8 W
• Lumens: 710
• Color Temperature (CCT): 2700/3000/3500/4000/5000 Kelvin
• Nominal Size: 4 in
• Manufacturer: Keystone Technologies
• Brand / Product Series: Keystone
• MPN: KT-WDLED8-4A-9CSF-FDIM-G
• Model: KT-WDLED8-4A-9CSF-FDIM-G
• Wattage: 8 Watt
• Equivalent: 60 Watt
• Efficacy: 89 lumens / Watt
• Beam: 110°
• Life Rating: 50,000 Hours
• CRI: 90+
• Size: 4 inch
• Voltage: 120
• Frequency: N/A
• Power Factor: >0.90
• Operating Temperature: -22°F to 104°F
• Dimmable: Yes, 120V
• Connection: Remote Junction Box
• Shape: Round
• Adjustable: Gimbal
• Housing Material: N/A
• Finish: White
• Lens Material: Plastic
• Trim Color: White
• Trim Design: Smooth
• IP Rating: N/A
• Location Rating: Wet
• Mounting: Spring Clips
• Length: 4.72 in.
• Width: 4.72 in.
• Height: 1.65 in.
• UL: Yes
• ETL: No
• RoHS: Yes
• Energy Star: Yes
• Fire Rated: No
• FCC: Yes
• Air Tight: Yes
• NEC: No
• IC: Yes
• Title 20: No
• Title 24: Yes
• DLC: No
• DLC ID: N/A
