Keystone KT-VTLED75PS-M4A-8CSA-VDIM 4 Foot Vapor Tight Fixture 75W/65W/45W (4 ft)

Product Description

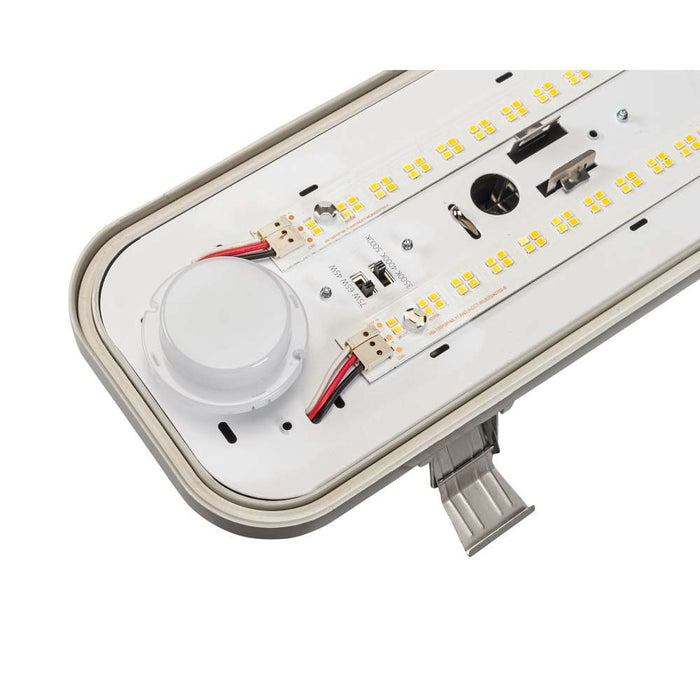

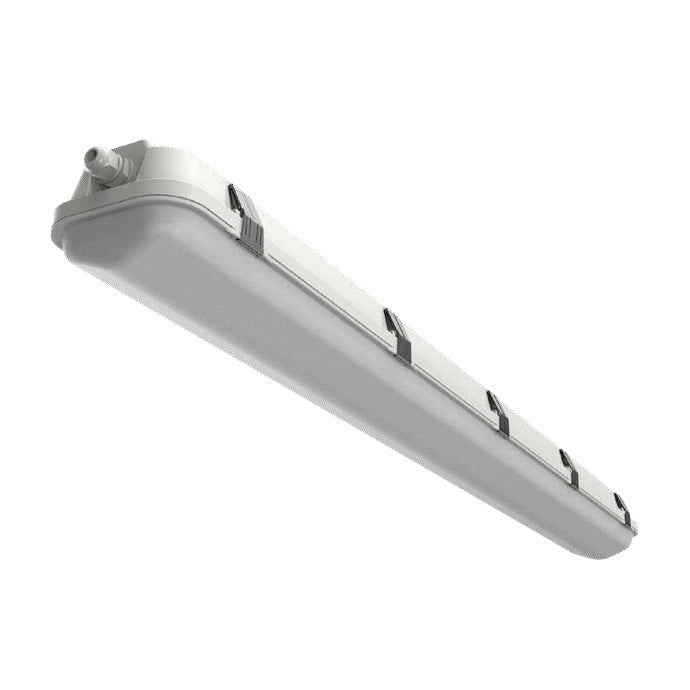

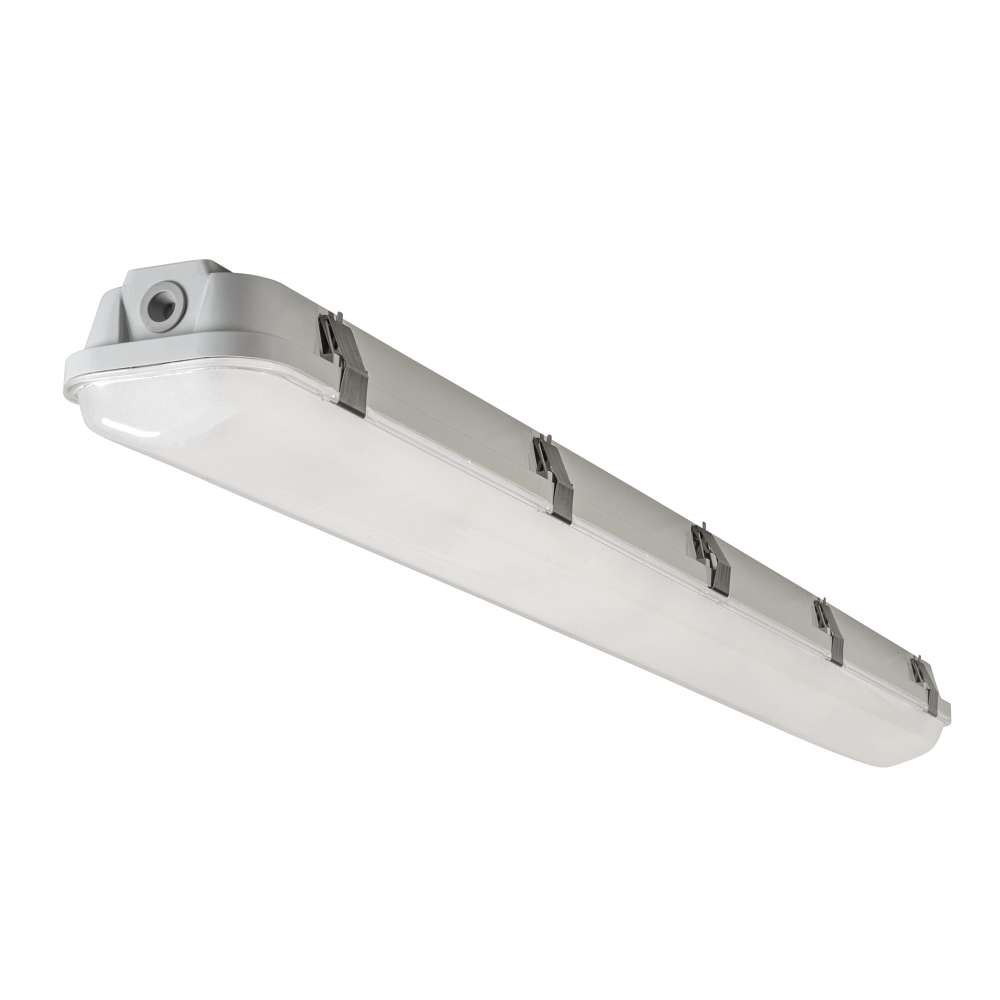

The Keystone KT-VTLED75PS-M4A-8CSA-VDIM is a 4-foot vapor tight LED fixture with selectable wattage and color temperature for industrial and commercial environments. It offers selectable power (75W/65W/45W) and selectable CCT (3500K/4000K/5000K), multivolt 120–277V operation, frosted polycarbonate lens, 0-10V dimming, an integrated 10 kV surge protector, and a built-in sensor receptacle for optional sensors.

• Selectable wattage 75W / 65W / 45W and selectable CCT 3500K / 4000K / 5000K; lumen output 6,525–11,250 lumens
• Multivolt input 120–277V, 0-10V dimming driver, integrated 10 kV surge protection, sensor receptacle
• NEMA 4X / IP66 / IK08 rated enclosure, stainless steel 304 lens clips, includes V-hooks/surface mount clips/hole plug; ambient -40°F to 122°F

Product Highlights

Power and color selectable 4 ft vapor tight LED fixture with 0-10V dimming, integrated surge protection, NEMA 4X/IP66 ratings, L70 >100,000 hours.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-VTLED75PS-M4A-8CSA-VDIM
• Country of Origin: USA

Technical Specifications

• Manufacturer: Keystone
• MPN: KT-VTLED75PS-M4A-8CSA-VDIM
• Product Type: 4 Foot vapor tight fixture, medium width
• Fixture Length: 4 ft (48 in)
• Wattage (Selectable): 75W / 65W / 45W
• Color Temperature (Selectable): 3500K / 4000K / 5000K
• Input Voltage: 120-277V
• Lumen Output: 6,525 - 11,250 lumens
• Lens: Frosted polycarbonate lens
• Lens Material: Polycarbonate
• Dimming: 0-10V dimming
• Built-in Features: Sensor receptacle
• Surge Protection: 10 kV integrated surge protection
• Ratings: NEMA 4X, IP66, IK08
• CRI: >80
• LED Lifetime: L70 >100,000 hours at 25
