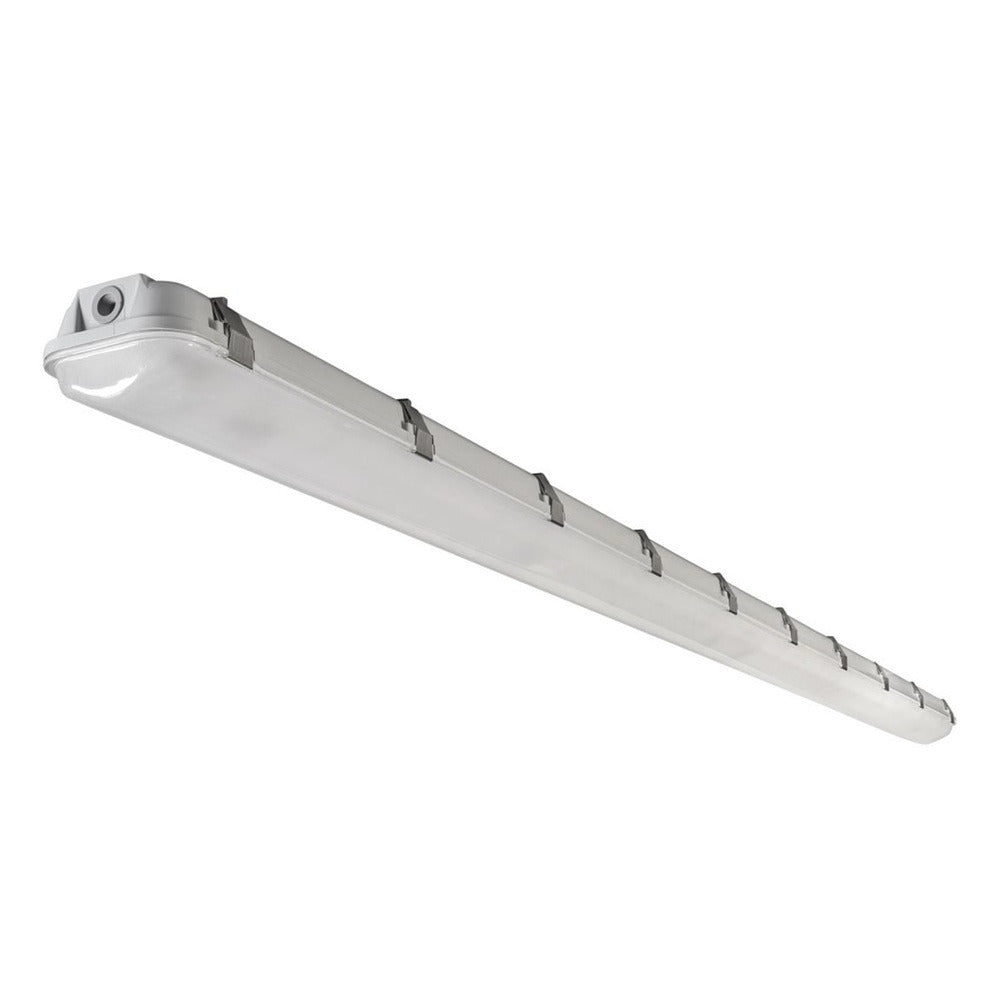

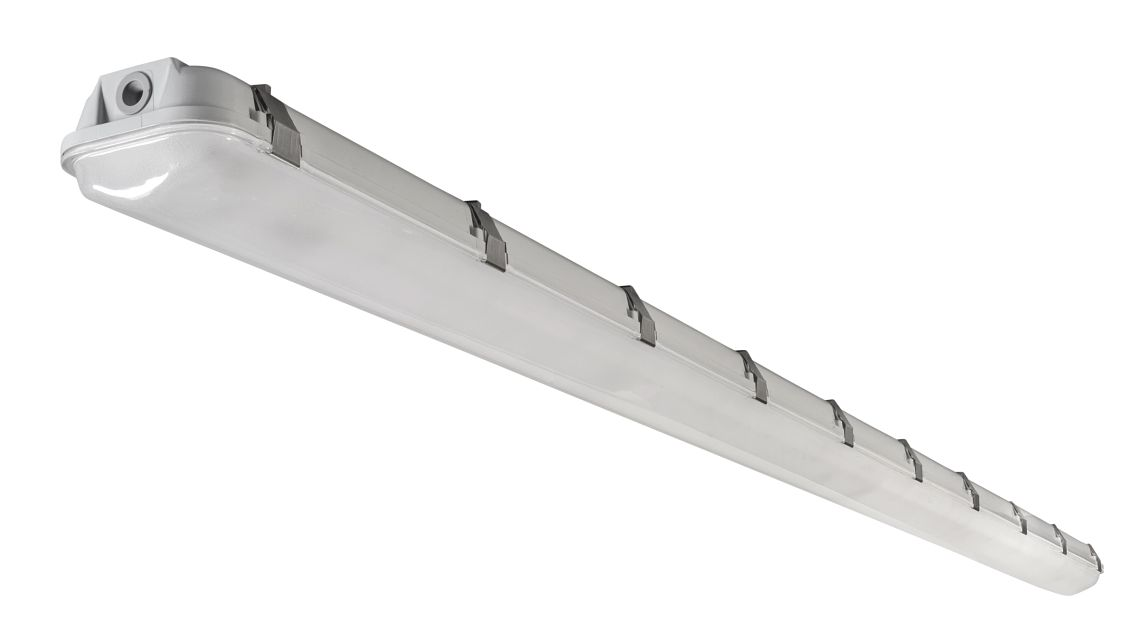

Keystone KT-VTLED100PS-M8A-8CSA-VDIM Power and Color Select 100 Watt LED Vapor Tight Fixture (8 ft)

Product Description

The Keystone KT-VTLED100PS-M8A-8CSA-VDIM is an 8-foot vapor-tight LED fixture with Power Select and Color Select for adjustable wattage and selectable CCT. It accepts 120-277V input and includes a 0-10V dimming driver with 10kV surge protection. The fixture is rated IP66/NEMA 4X with IK08 impact resistance, stainless steel lens clips, a 5VA polycarbonate lens, and an L70 LED lifetime greater than 100,000 hours at 25°C.

• Power Select adjustable wattage and Color Select CCT (3500K / 4000K / 5000K)

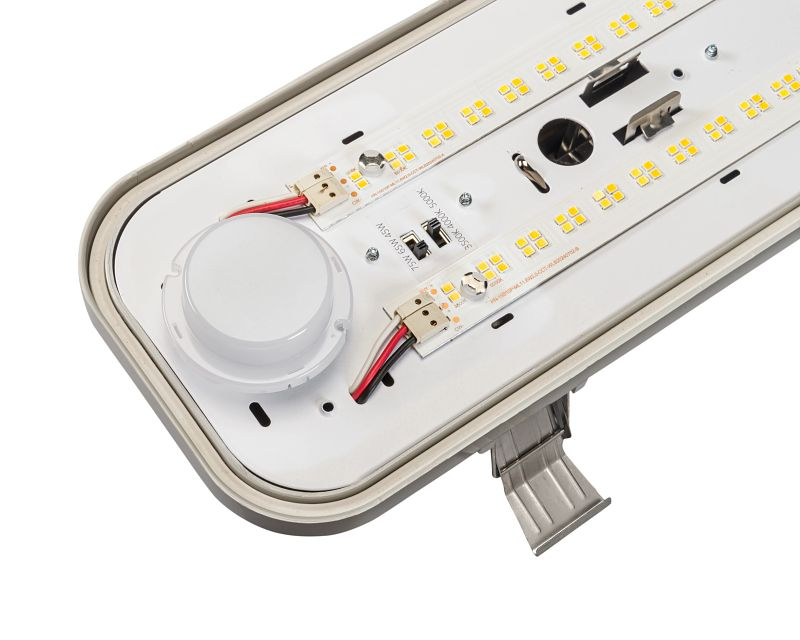

• 0-10V dimming driver with integrated 10kV surge protection and sensor receptacle
• IP66 / NEMA 4X enclosure with IK08 impact rating, stainless steel 304 lens clips

Product Highlights

8 ft vapor-tight LED fixture, 120-277V, 0-10V dimmable, IP66/NEMA 4X, L70 >100,000 hours

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-VTLED100PS-M8A-8CSA-VDIM
• Country of Origin: USA

Technical Specifications

• Brand: Keystone
• Manufacturer Part Number: KT-VTLED100PS-M8A-8CSA-VDIM
• Product Type: 8 ft LED vapor tight fixture
• Input Voltage: 120-277V
• Wattage: 100 Watt (Power Select adjustable)
• Color Temperature: Selectable CCT (3500K / 4000K / 5000K)
• Lumen Output: 8,700 - 15,000 lm
• CRI: >80
• Dimmable: Yes (0-10V)
• Surge Protection: 10 kV (included)
• Enclosure Rating: NEMA 4X
• Ingress Protection: IP66
• Impact Rating: IK08
• Lens Material: 5VA polycarbonate (anti-aging)
• Lens Clips: Stainless steel 304
• Dimensions: 98.42 in x 5.31 in x 3.74 in
• Ambient Operating Temperature: -40°F to 122°F (-40°C to 50°C)
• LED Lifetime (L70): >100,000 hours @ 25°C
• Mounting Hardware: V-hooks, surface mount clips, hole plug (included)
• Sensor Receptacle: Provided for optional sensors
• Certifications: DLC qualified; DLC Premium; ETL Listed; UL Listed; CUL Listed
• Technology: LED - New Fixture
• Environment Rating: Certified for wet locations
