Keystone KT-RHLED200PS-14CD-OSD-8CSB-VDIM-P XFit OpticSwap UFO LED High Bay 200W (14-inch/90 degree-120 degree) KT-RHLED200PS-14CD-OSD-8CSB-VDIM-P

Product Description

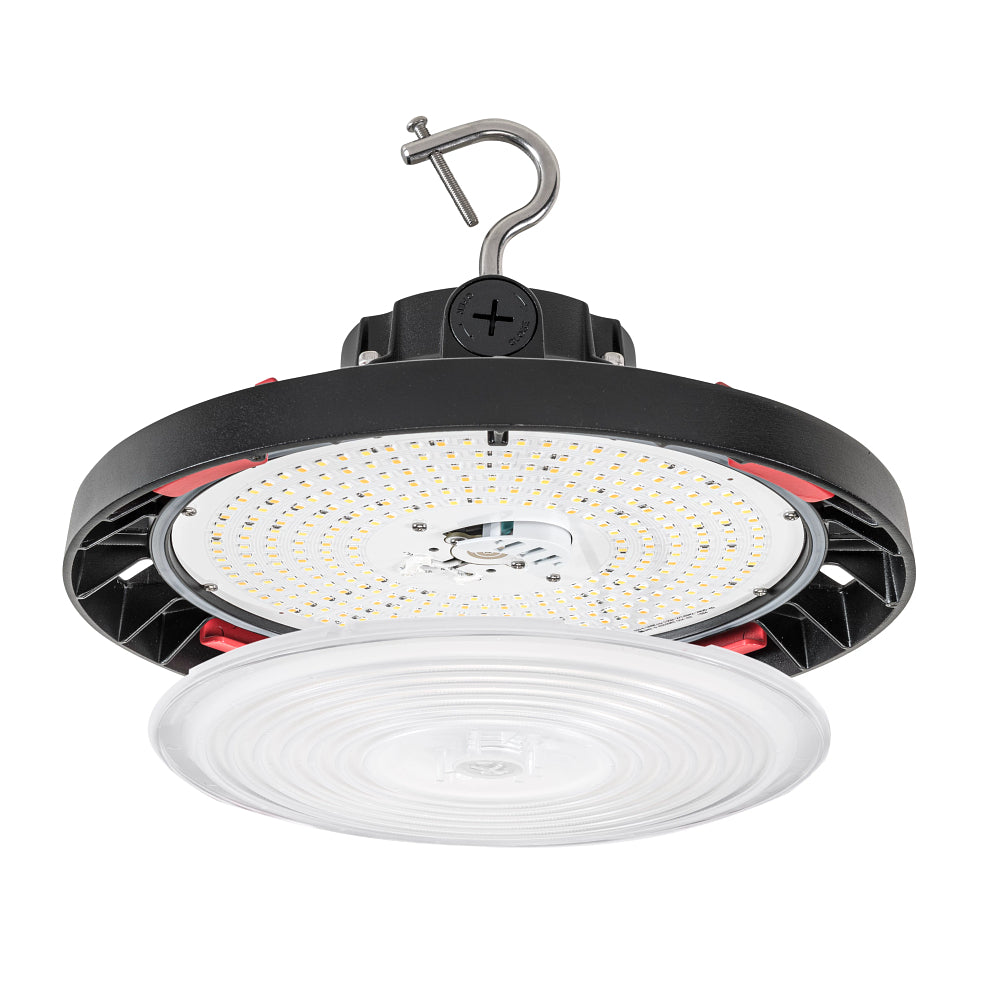

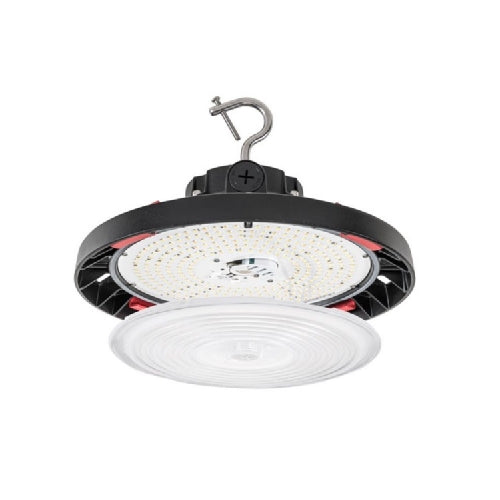

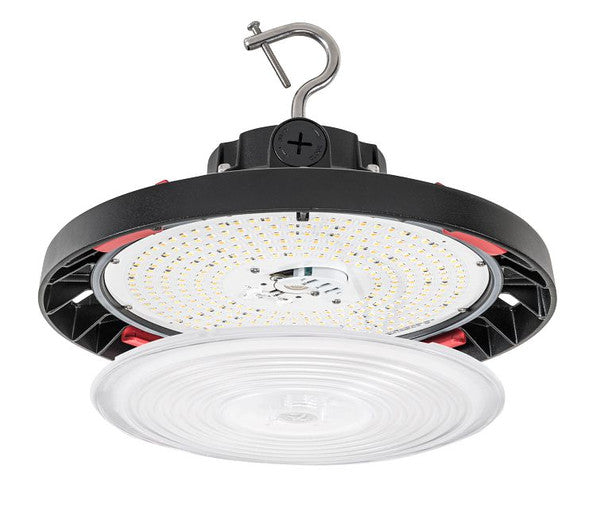

Keystone KT-RHLED200PS-14CD-OSD-8CSB-VDIM-P is a 14-inch XFit OpticSwap UFO LED high bay fixture with field-adjustable wattage (100/150/200W) and up to 31,400 lumens output at 200W. It operates on 120-277V, is 0-10V dimmable, and offers selectable 3000K/4000K/5000K CCT and adjustable optics (90 degree installed, 120 degree included). The fixture is wet location rated (IP65) and includes mounting accessories and a 6-foot cord.

• Field-adjustable 100/150/200W output; up to 31,400 lumens and up to 157 lm/W efficacy
• Selectable 3000K/4000K/5000K CCT, 0-10V dimming, and built-in 6 kV surge protection
• Optic Swap with 90° and 120° lenses, ribbed polycarbonate lens, O-bolt and J-hook mounting; IP65 wet location rated

Product Highlights

14-inch round LED high bay; universal 120-277V; 80+ CRI; 100,000 hour rated life

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-RHLED200PS-14CD-OSD-8CSB-VDIM-P
• Country of Origin: United States

Technical Specifications

• Brand: Keystone
• Manufacturer Part Number: KT-RHLED200PS-14CD-OSD-8CSB-VDIM-P
• Product Name: XFit OpticSwap UFO LED High Bay
• Wattage: 200 Watts (field-adjustable to 100/150/200W)
• Lumens: 31,400 Lumens (at 200W)
• Efficacy: Up to 157 lm/W
• Input Voltage: 120-277V
• Dimmable: 0-10V analog dimming
• Color Temperature: Selectable 3000K / 4000K / 5000K
• CRI: 80+
• Beam Angle: Adjustable optics: 90° installed; 120° included
• Lens: Ribbed polycarbonate lens; optic swap with two lenses
• Mounting: O-bolt and J-hook mounting accessories included
• Power Cord: 6-foot power cord for input and dimming wires
• IP Rating: IP65 (wet location rated)
• Surge Protection: Built-in 6 kV surge protection
• Rated Life: 100,000 Hours
• Operating Temperature: -40°F to 122°F
• Dimensions: 13.74 in diameter x 5.07 in height
• Diameter: 14 inch
• Weight: 8.00 lb
• Housing: Powder-coated aluminum housing (white as listed in primary source)
• Certifications: DLC Premium; cULus
• UPC: 843654160764
