Keystone KT-RDLED29PS-8A-8CSG-VDIM 8in Circular LED Commercial Downlight feat. Power Select and Color Select 29/ 23/ 16.5W

Product Description

The KEYSTONE KT-RDLED29PS-8A-8CSG-VDIM is an 8in Circular LED Commercial Downlight featuring Power Select and Color Select. It operates at 29/ 23/ 16.5W with a 120-277V input, and offers 2700/ 3500/ 5000K color temperature and 80CRI with 0-10V dimming. Ideal for new construction, remodel and retrofit applications.

• Power Select
• Color Select
• 0-10V Dimming

Product Highlights

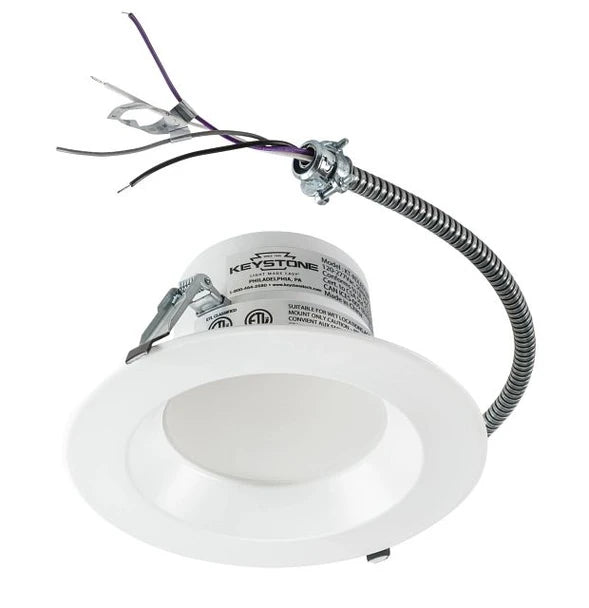

This downlight is designed with an integral whip for direct junction box connection and features a smooth reflector trim for a modern appearance.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-RDLED29PS-8A-8CSG-VDIM

Technical Specifications

• Watts: 29/ 23/ 16.5 W
• Lumens: 1500 lm, 1550 lm, 2100 lm, 2150 lm, 2600 lm, 2650 lm, 2700 lm
• Color Temperature (CCT): 2700/ 3500/ 5000 K
• Nominal Size: 8 in
• Input Voltage: 120-277V
• CRI: 80
• Dimming: 0-10V
• Mfr Part #: KT-RDLED29PS-8A-8CSG-VDIM
• Brand: Keystone
• Lamp: LED Downlight
• Wattage: 16.5W/23W/29W
• Color Temp: 2700K/3500K/5000K
• Voltage: 120-277V (Universal)
• Fixture Length: 8"
• Finish: White
• Dimmable: Yes
• Efficacy: 94 lm/W
• Life Hours: 50000
• Maximum Voltage: 120V-277V
• Certificate: cETLus Listed, Energy Star, RoHS Compliant, Wet Location
