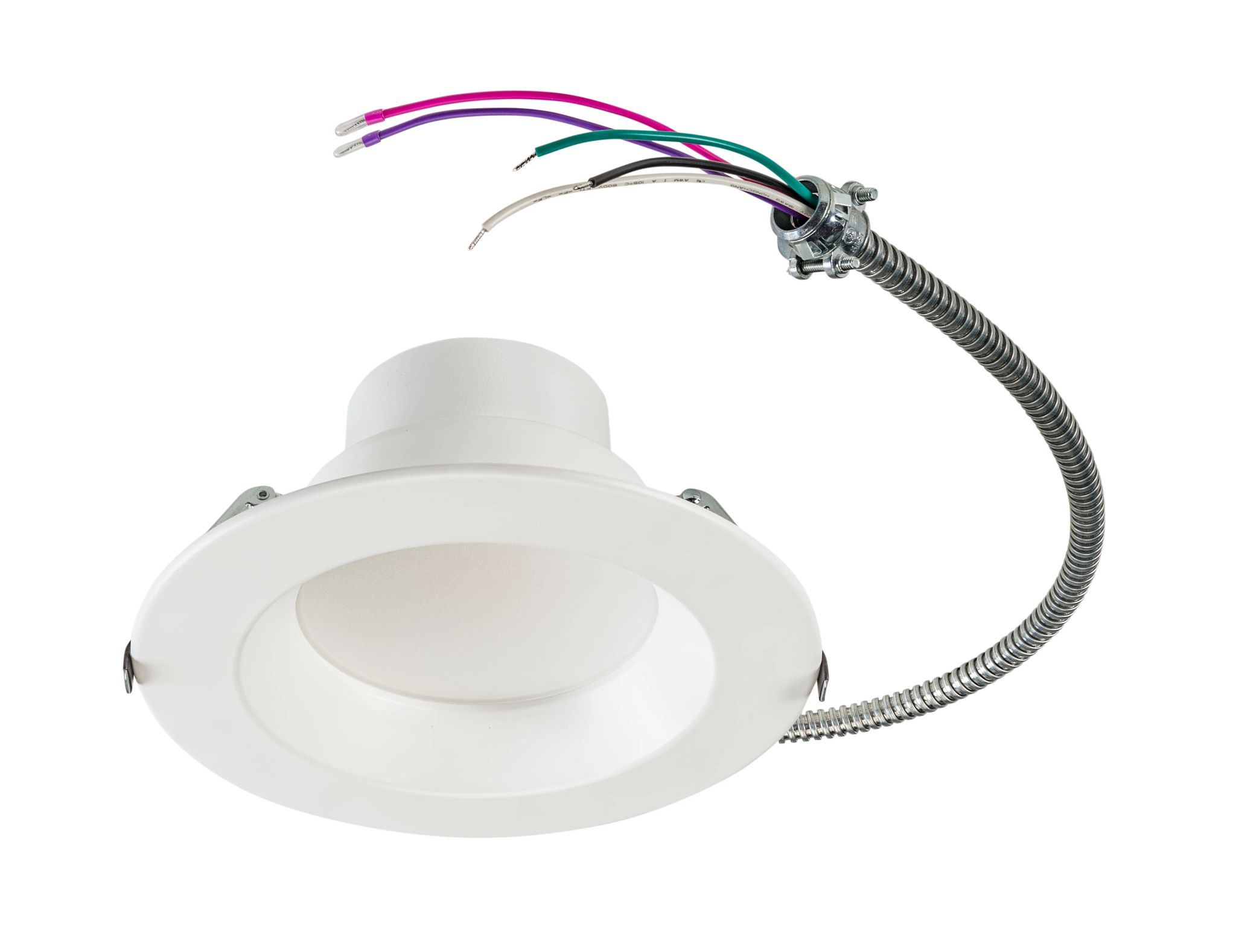

Keystone KT-RDLED24PS-6A-9CSF-CDIM Advanta round LED commercial downlight 24W (6in) LRD6INCCTPS24WCDIM-K

Product Description

Keystone KT-RDLED24PS-6A-9CSF-CDIM is a 6-inch Advanta commercial recessed LED downlight with field-selectable wattage and color temperature. The fixture operates on 120-277V with an integral driver and supports 0-10V and phase dimming. It is airtight, Type IC-rated, wet-location rated, and delivers up to 2,750 lumens at >90 CRI.

• Field-selectable wattage: 24W default; selectable 24, 21, 18.5, 13, 9.5W
• Field-selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K; up to 2,750 lumens
• Integral driver for 120-277V with 0-10V and phase dimming; airtight and Type IC-rated

Product Highlights

6-inch recessed commercial downlight; selectable wattage/CCT; up to 2,750 lm; >90 CRI; 120-277V; combination dimming support; airtight, IC-rated; wet-location rated.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-RDLED24PS-6A-9CSF-CDIM

Technical Specifications

• Brand: Keystone
• Manufacturer Part Number: KT-RDLED24PS-6A-9CSF-CDIM
• Model Name: Advanta
• Wattage: 24W (field selectable to 21W, 18.5W, 13W, 9.5W)
• Selectable Wattages: 24, 21, 18.5, 13, 9.5 W
• Selectable Color Temperatures: 2700K, 3000K, 3500K, 4000K, 5000K
• Lumens: Up to 2,750 lm
• Selectable Lumen Outputs: 2,750; 2,450; 2,200; 1,950; 1,450; 1,050 (nominal outputs listed across selections)
• Input Voltage: 120-277V
• Dimmable: 0-10V and phase dimming
• Color Rendering Index (CRI): 90+
• Efficacy: Up to 126 lm/W
• Beam Angle: 90 degrees
• Rated Life: 80,000 hours
• Operating Temperature Range: -13°F to 104°F
• Minimum Operating Temperature: -13°F
• Mounting Type: Recessed downlight (6 in)
• Downlight Diameter: 6 in nominal
• Overall Diameter: 8.41 in
• Height: 4.08 in
• Cut-Out Diameter: 5.89 in to 8.10 in
• Trim Type: Smooth reflector trim
• Enclosure Rating: Type IC-rated; airtight
• Wet Location Rated: Yes
• Power Factor: >0.90
• Total Harmonic Distortion (THD): <25%
• Certifications: Energy Star; Title 20/24 compliant; cETLus listed; JA8 compliant
• UPC: 843654168869
• Weight: 0.75 lb
• Form Factor / Type: 6 in commercial recessed LED downlight
• Integral Driver: Yes
