Keystone KT-LED31T8-72P2S-865-D /G2 6 ft. LED Sign Tube 31W

Product Description

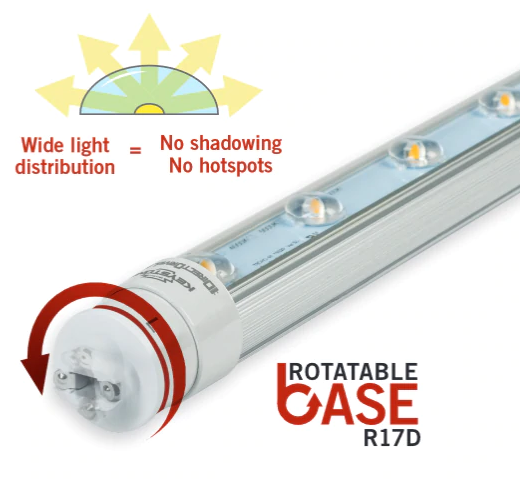

The Keystone KT-LED31T8-72P2S-865-D /G2 is a 6 ft. LED sign tube with a 6500K color temperature, double-sided output, and rotatable R17d end caps. Operating at 31W with a 120-277V input, this LED tube is designed as a replacement for conventional T12HO and T8HO sign tubes. It provides an effective 360° beam spread for optimal light distribution within the sign.

• Ideal for both single-sided and double-sided signs.
• 129 lm/W 50,000+ hour lifetime.
• Installs using existing sockets in the sign; all necessary wiring can be done within ballast raceway.

Product Highlights

This 6ft LED sign tube offers energy-efficient, long-lasting illumination for various signage applications, ensuring clear visibility and reduced maintenance.

Product Information

Standard Information

• Brand: Keystone
• Manufacturer Part Number: KT-LED31T8-72P2S-865-D /G2
• Country of Origin: China

Technical Specifications

• Catalog Number: KT-LED31T8-72P2S-865-D /G2
• Manufacturer: Keystone Technologies
• Brand: Keystone
• Country of Origin: China
• Made in USA: No
• Lamp Type: LED
• UPC: 843654132303
• GTIN: 00843654132303
• Wattage: 31 W
• Lamp: T8HO/T12HO Replacement
• Bulb Shape: Linear
• Feature: Type B Ballast Bypass
• Lumens: 4000
• Color Temp: 6500K
• Dimming: No
• Lamp Footage: 6'
• Finish: Clear
• Voltage: 120-277V (Universal)
• Base Type: R17d (Recessed Double Contact HO/VHO)
• Beam Angle: 360°
• Bulb Life: 50000 Hours
• Case Size: 9
• Step: 9
• Lumens Per Watt: 129
• Volts: 120-277V
• Kelvin: 6500K
• Wiring: N/A
• Lens Type: Clear
• Construction: Coated Glass
• Nominal Size: 72"
• Length (M.O.L.) Inches: 69.91
• Width (Inches): 1.1
• Light Emitting Area: 360°
• Driver: Internal
• Rated Hours: 50,000
• DLC Listed: No
• Wet/Damp Rated: N/A
• Maximum Temp: 131°F
• Minimum Starting Temp: -22°F
• Certifications: UL Sam
• Case Quantity: 10
• Fluorescent Equivalent: 85W
• Operating Temperature: -30°C to 55°C (-22°F to 131°F)
• Lifetime: 50,000+ hours
• Ingress Protection (IP) Rating: IP20 (indoor use)
• Efficacy: 129 lm/W
• Product Dimensions: 69.91-in (L)
• Diameter: 1.10-in
• Total Lumens: 4,000
• Lumens Per Side: 2,000
• Lumens Per Foot: 334
