Keystone KT-LED25T8-117P1S-865-D /G2 Sign Hero 25W 117 inches Replacement

Product Description

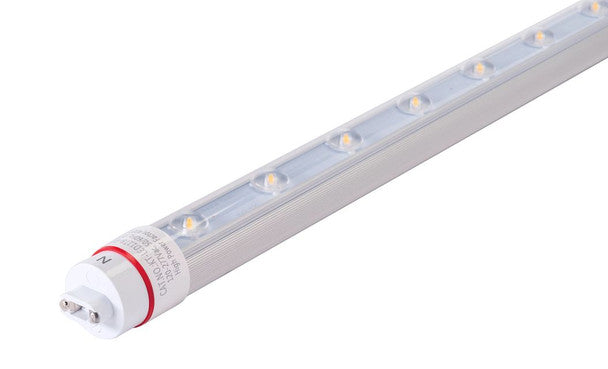

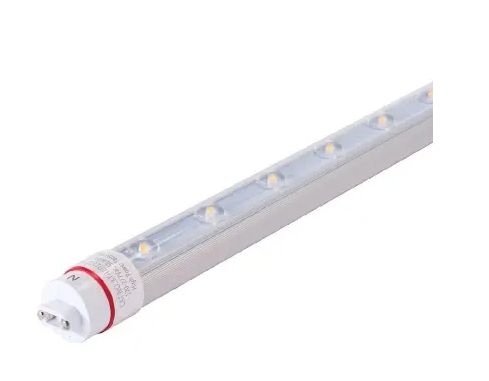

The Keystone KT-LED25T8-117P1S-865-D /G2 Sign Hero is a 25W, 117" single-sided LED lamp designed as a T8/T12 replacement. This ballast bypass lamp emits 3100 lumens with a 180° beam spread and a color temperature of 6500K. It operates on a universal 120-277V and features a R17d base.

• T8/T12 Replacement
• Type B Ballast Bypass
• 180° Beam Angle

Product Highlights

This 25W LED sign tube is a direct replacement for T12HO and T8HO fluorescent lamps, offering energy savings and long-lasting performance.

Product Information

Standard Information

• Brand: Keystone
• Manufacturer Part Number: KT-LED25T8-117P1S-865-D /G2

Technical Specifications

• Our Part No: KT-VKN-12
• Mfr Part #: KT-LED25T8-117P1S-865-D /G2
• Manufacturer Material Code: VKN-12
• Lamp: T8/T12 Replacement
• Bulb Shape: Linear
• Feature: Type B Ballast Bypass
• Wattage: 25W
• Lumens: 3100 lm
• Color Temperature: 6500K
• Voltage: 120-277V
• CRI: 80
• Finish: Clear
• Base Type: R17d
• Beam Angle: 180°
• Bulb Life: 50000 Hours
• Certificate: cUL/UL Listed
• Efficacy: 124 lm/W
• Life Hours: 50000
• Maximum Voltage: 120V-277V
• Diameter: 1.10-in
• Application: Fluorescent Retrofit
• Rate Life: 50,000 Hours
• Certifications: cRUus, RoHS, cULus
• Features: Environmentally Friendly, Frosted Glass Lens, Integrated Driver, Instant On, 120-277Vac Line Voltage, Plastic Construction, Rotatable End Caps, Double Sided LEDs, Non-Dimmable, Ballast Bypass, Clear Lens
• Brand: Keystone
• MPN: KT-LED25T8-117P1S-865-D /G2
• UPC: 843654132846
• Length (Nominal): 117 in.
