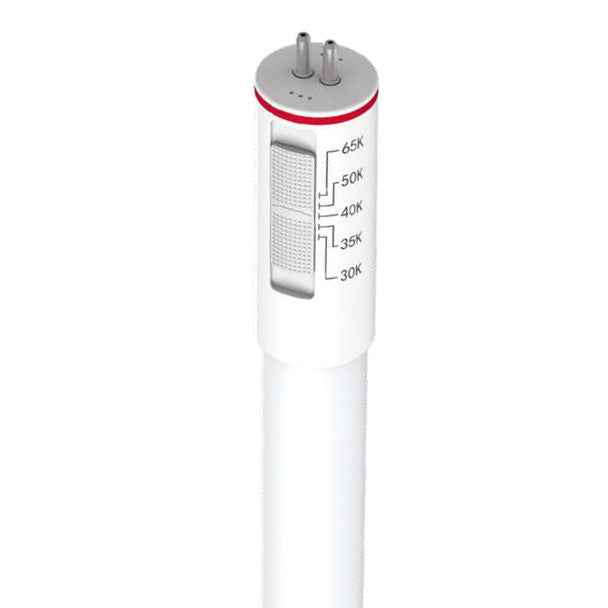

Keystone KT-LED25T5HO-48GC8CSJDX2 LED T5HO CCT Select 3000K-6500K 25W

Product Description

The KEYSTONE KT-LED25T5HO-48GC8CSJDX2 is a 25W LED T5HO lamp with selectable color temperatures. This lamp delivers 3300-3500 lumens. The DX2 install method allows for single-end or double-end wiring when bypassing the ballast. Its coated-glass design makes it suitable for food-safe applications. Rated for 50,000 hours and DLC rated.

• CCT Select LED T5 lamps
• Delivers 3300-3500 lumens on 25W
• DX2 install method allows for single-end or double-end wiring when bypassing the ballast

Product Highlights

This 25W LED T5HO lamp features selectable color temperatures, single or double-end wiring, and a coated-glass design.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-LED25T5HO-48GC8CSJDX2

Technical Specifications

• Manufacturer: Keystone Technologies
• Watts: 25W
• Fluorescent Equivalent: 54W
• Old LED Version: KT-LED25T5HO-48GC-8XX-DX2
• Lumens: 3300-3500
• Lumens Per Watt: 132-140
• Input Voltage: 120-277V
• CRI: 80+
• Color Temperature: 3000K, 3500K, 4000K, 5000K, 6500K
• Kelvin: 3000K-6500K
• Dimmable: No
• Base Type: G5
• Bulb Shape: T5
• Wiring: Single or Double Ended
• Lens Type: Frosted
• Construction: Coated Glass
• Nominal Size: 48"
• Length: 45.24 in.
• Width: 0.81
• Beam Angle: 142°
• Driver: Internal Driver
• Rated Hours: 50,000 Hours
• DLC Listed: Yes
• Wet/Damp Rated: Damp Rated
• Maximum Temp: 113°F
• Minimum Starting Temp: -4 Degrees F
• Certifications: UL/DLC
• Light Technology: LED
• Lamp Shape: T5
• Equivalent Wattage: 54 W
• Replaces: F54T5
• Base Code: G5
• Voltage: 120/208/240/277 V
• Operating Temperature: -4°F to 113°F (-20°C to 45°C)
• Operation: UL Type B
• Lumens per Watt: 140
• Diameter: 0.81 in.
• Location Rating: Damp
• Power Factor: >0.9
• THD: 25%
• Compatible Sockets: Shunted or Non-Shunted
• Material: Coated Glass
• Lens: Frosted
• Dimming Type: N/A
• UL: Yes
• ETL: No
• NSF: Yes
• RoHS: Yes
• FCC: Yes
• Energy Star: No
• DLC: Yes
• DLC ID: S-8BFB69
