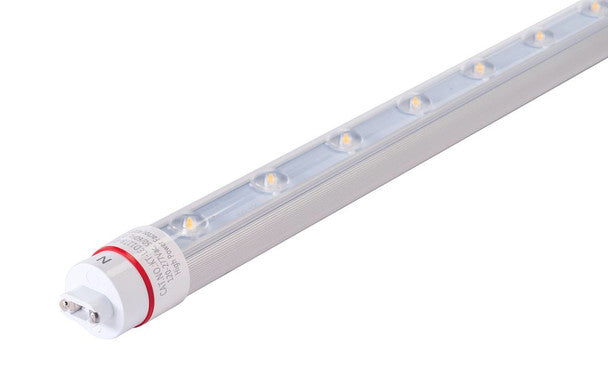

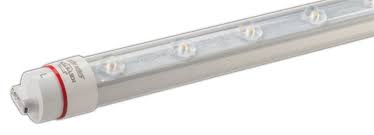

Keystone KT-LED19T8-84P1S-865 19W 84-Inch LED Sign Tube

Product Description

The Keystone KT-LED19T8-84P1S-865 is a durable 84-inch LED sign tube for single-sided applications. It operates at 19 watts and uses an R17d base. Its ballast bypass design allows for straightforward installation. The lamp emits a bright light with a 180-degree beam angle, providing effective light distribution. With a lifespan of 50,000 hours, it is ideal for long-term use. This product is UL Listed and is available in a color temperature of 6500K.

• 84-inch T8 LED sign tube

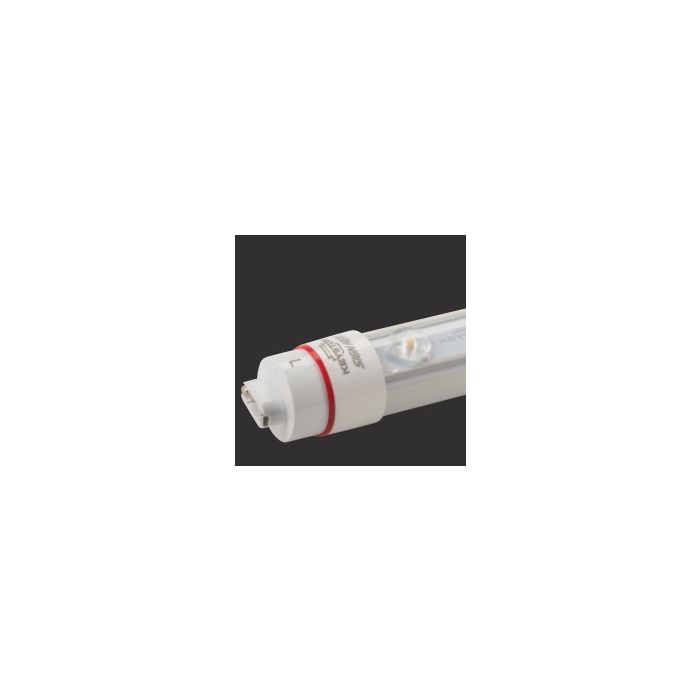

• R17d rotatable base
• Ballast bypass installation

Product Highlights

This LED sign tube is perfect for efficient lighting in commercial signage.

Product Information

Standard Information

• Manufacturer: Keystone
• Part Number: KT-LED19T8-84P1S-865-D /G2

Technical Specifications

• Power Consumption: 19W
• Input Voltage: 120-277V
• Luminous Flux: 2350 lm
• Efficacy: 124 lm/W
• Color Temperature: 6500K
• Color Rendering Index (CRI): 80
• Base Type: R17d
• Bulb Shape: T8
• Beam Angle: 180 degrees
• Rated Life: 50,000 hours
• Length: 81.91 inches
• Diameter: 1.10 inches
• Operating Temperature: -22°F to 131°F
• Certifications: UL Sam, cUL/UL Listed
• Warranty: 5 Year
• Weight: 4.00 lb
