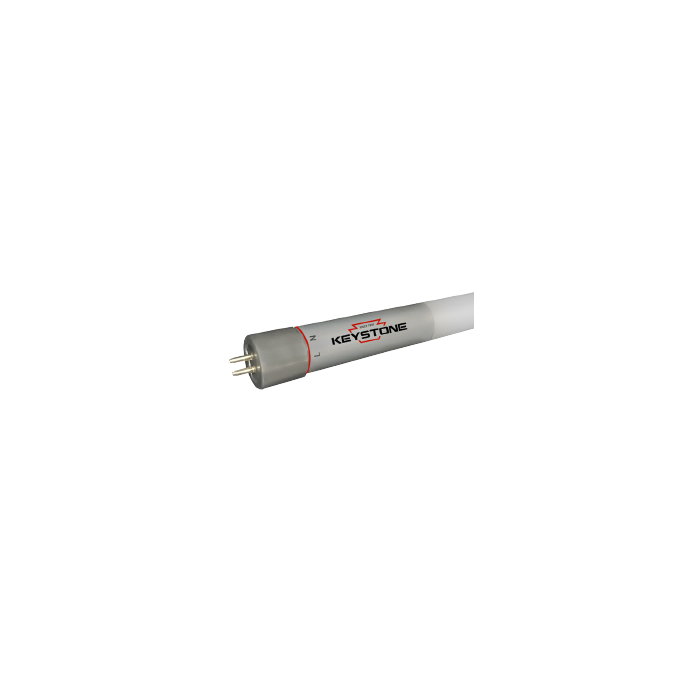

Keystone KT-LED13T5HE-48GC-840-D Direct Drive 4 feet and 13W LED T5 Tube REPLACEMENT MPN

Product Description

The Keystone KT-LED13T5HE-48GC-840-D is a direct drive 4' 13W LED T5 tube designed to replace conventional linear fluorescent T5 lamps by bypassing the ballast. This LED T5 tube saves energy and reduces heat and interference. It can be installed via single-end or double-end wiring and operates on 120-277V. The coated glass design results in an NSF rating for food equipment applications.

• Ballast bypass for energy savings
• Single or double-ended wiring installation
• NSF rated coated glass design

Product Highlights

This Keystone LED T5 tube offers an energy-efficient and NSF-rated lighting solution for replacing fluorescent T5 lamps, featuring ballast bypass and versatile wiring options.

Product Information

Standard Information

• Brand: Keystone
• Manufacturer Part Number: KT-LED13T5HE-48GC-840-D

Technical Specifications

• Manufacturer: Keystone
• Watts: 13W
• Fluorescent Equivalent: 28W
• Lumens: 1650
• Lumens Per Watt: 127
• Input Voltage: 120-277V
• CRI: 80+
• Color Temperature: 4000K
• Kelvin: 4000K
• Dimmable: No
• Base Type: G5 Miniature Bi-Pin
• Bulb Shape: T5
• Wiring: Single/Double-Ended
• Lens Type: Frosted
• Construction: Coated Glass
• Nominal Size: 48"
• Length (M.O.L.) Inches: 45.19
• Width (Inches): 0.82
• Beam Angle: 240°
• Light Emitting Area: 325°
• Driver: Internal Driver
• Rated Hours: 50,000
• DLC Listed: Yes
• Wet/Damp Rated: Damp Rated
• Maximum Temp: 113°F
• Minimum Starting Temp: -4°F
• Certifications: NSF/UL
• Manufacturer Part #: KT-LED13T5HE-48GC-840-DX2
• Premier Part #: LT540K13WHE-K
