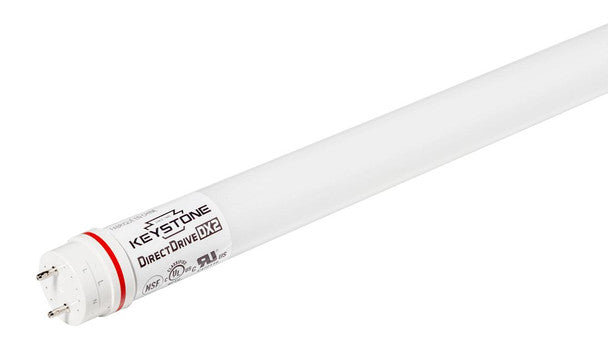

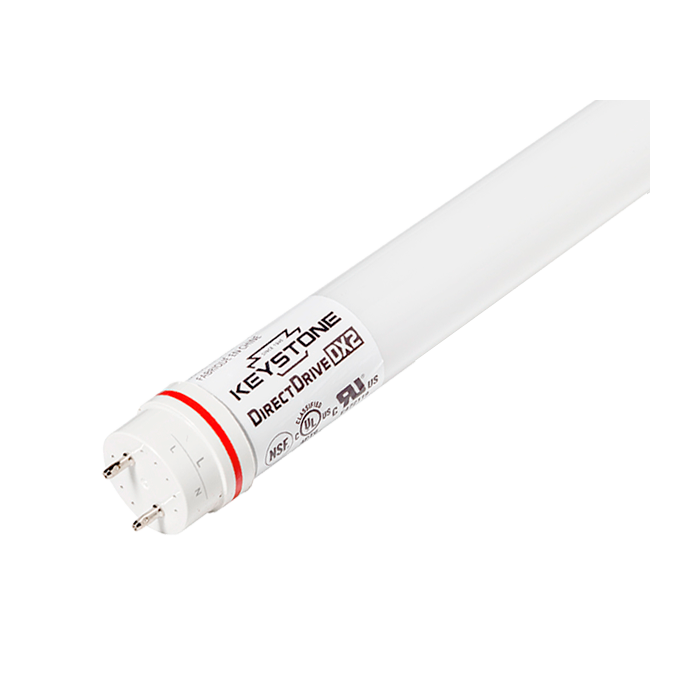

KEYSTONE KT-LED12T8-48G-8CSJ-DX2 12W LED T8 Tube

Product Description

The Keystone KT-LED12T8-48G-8CSJ-DX2 is a twelve-watt LED T8 linear tube specifically designed for use as a direct replacement for traditional fluorescent lamps. This four-foot tube lamp features a G13 medium bi-pin base and utilizes DX2 technology, which allows for both single and double-ended wiring options. The product supports selectable color temperatures of three thousand Kelvin, three thousand five hundred Kelvin, four thousand Kelvin, five thousand Kelvin, and six thousand five hundred Kelvin, making it versatile for various lighting needs.

• 12W LED T8 tube with G13 medium bi-pin base.
• Supports single or double-ended wiring.
• Features selectable color temperatures.

Product Highlights

The Keystone KT-LED12T8-48G-8CSJ-DX2 is designed for ballast bypass operation, operating within a line voltage range of one hundred twenty to two hundred seventy-seven volts.

Product Information

Standard Information

• Brand: Keystone
• Manufacturer Part Number: KT-LED12T8-48G-8CSJ-DX2

Technical Specifications

• Bulb Type: T8
• Base Type: Medium Bi-Pin (G13)
• Wattage: 12 Watt
• Input Voltage: 120-277V
• Lumen Output: 1,700 - 1,800
• Color Temperature: 3000K, 3500K, 4000K, 5000K, 6500K
• CRI: >80
• Rated Hours: 50,000 Hours
• Length: 47.20 inches
• Diameter: 1.10 inches
• Dimmable: Yes
• Minimum Start Temperature: -4 Deg F
• Operating Temperature: -4 Degrees F to 140 Degrees F
• Certifications: CUL Listed, DLC Approved, FCC Compliant, ROHS, UL Listed, cULus
• Beam Angle (LED Only): 240°
• Power Factor: >0.9
• Total Harmonic Distortion [THD]: >20%
• Lumens Per Watt: 150
