Keystone KT-HBLED270-4F-850-VDIM-P/G2 Highbay Fixture 270W

Product Description

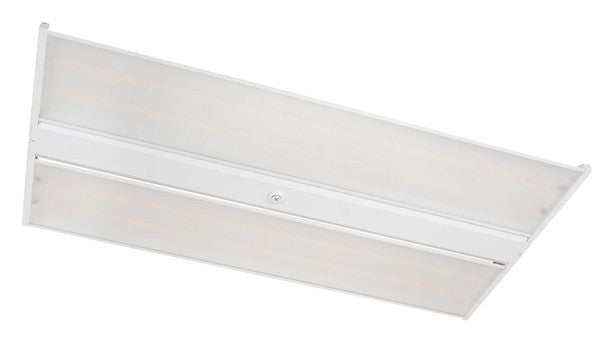

The KEYSTONE KT-HBLED270-4F-850-VDIM-P/G2 is a 4 ft. highbay fixture that delivers 40770 lumens at 270W with a 5000K color temperature. Designed for energy efficiency, light uniformity, and long life, it's an ideal replacement for HID and linear fluorescent high bay lights. The fixture accepts universal 120-277V input and features a frosted lens for diffuse and even lighting.

• Produces a bright daylight light with a 5000K color temperature.
• Fixture comes with a v-hook and chain for mounting.
• Architectural grade compact design only 2.4" in height.

Product Highlights

This highbay fixture ensures comfortable and safe conditions to maximize productivity in commercial, manufacturing, gymnasium, warehouse, and retail aisle applications.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-HBLED270-4F-850-VDIM-P/G2

Technical Specifications

• Our Part No: KT-JWQ-53
• Mfr Part #: KT-HBLED270-4F-850-VDIM-P /G2
• Manufacturer Material Code: JWQ-53
• Brand: Keystone
• Lamp: Highbay Fixture
• Wattage: 270 Watt
• Lumens: 40770
• Color Temp: 5000K
• Voltage: 120-277V (Universal)
• CRI: 80+
• Dimming: Analog (0-10V)
• Dimensions: 46.5" L x 15" W x 2.4" H
• Fixture Length: 48"
• Finish: White
• Features: See Spec Sheet
• Warranty: Manufacturer's
• Case Size: 1
• Manufacturer: Keystone Technologies
• Brand / Product Series: Keystone
• MPN: KT-HBLED270-4F-850-VDIM-P /G2
• Model: KT-HBLED270-4F-850-VDIM-P /G2
• Equivalent: 12-Lamp (T5HO)
• Efficacy: 151 lumens / Watt
• Color Temperature (CCT): 5000 Kelvin
• Life Rating: 50,000 Hours
• Frequency: 60 Hz
• Power Factor: >0.90
• THD: <20%
• Surge Protection: N/A
• Operating Temperature: -4°F to 122°F
• Dimmable: Yes, 0-10V
• Options: Standard
• Mounting: V-Hook and Chains
• Housing Material: Metal
• Lens Material: PMMA
• IP Rating: N/A
• Location Rating: Damp
• Length: 46.5 in.
• Width: 15 in.
• Height: 2.4 in
• Weight: N/A
• UL: Yes
• ETL: No
• RoHS: No
• Energy Star: No
• FCC: N/A
• DLC: Yes
• DLC ID: POY5EWIW
• Input Voltage: 120-277V (Universal)
