Keystone KT-EM-RS1-WHWL-SL Single LED Remote Head for Emergency Light 1.2W (Single Head)

Product Description

Keystone KT-EM-RS1-WHWL-SL is a single LED remote head for emergency lighting that delivers approximately 100 lumens of 6500K illumination while consuming about 1 to 1.2 W. The unit is designed for surface-mount installation and operates on low-voltage input (3.6 to 15 VDC). It uses a thermoplastic housing with UL 94 5VA rating and is damp location rated with cULus and RoHS certifications for commercial and institutional emergency applications.

• Approximately 100 lumens output at 6500K with ~1 to 1.2 W power consumption
• Operates on 3.6 to 15 VDC low-voltage input; surface-mount installation
• Thermoplastic housing (UL 94 5VA), damp location rated, cULus and RoHS certified

Product Highlights

Single-head LED remote emergency light; 100 lm, 6500K; 3.6–15 VDC; surface mount; thermoplastic housing

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-EM-RS1-WHWL-SL

Technical Specifications

• Brand: Keystone
• Manufacturer Part Number: KT-EM-RS1-WHWL-SL
• Technology: LED
• Application: Remote head for emergency lighting
• Delivered Lumens: 100 lm
• Power Consumption: 1–1.2 W
• Input Voltage: 3.6–15 VDC
• Color Temperature: 6500 K
• Mounting Type: Surface mount
• Housing Material: Thermoplastic (UL 94 5VA)
• Certifications: cULus; RoHS; Damp location rated

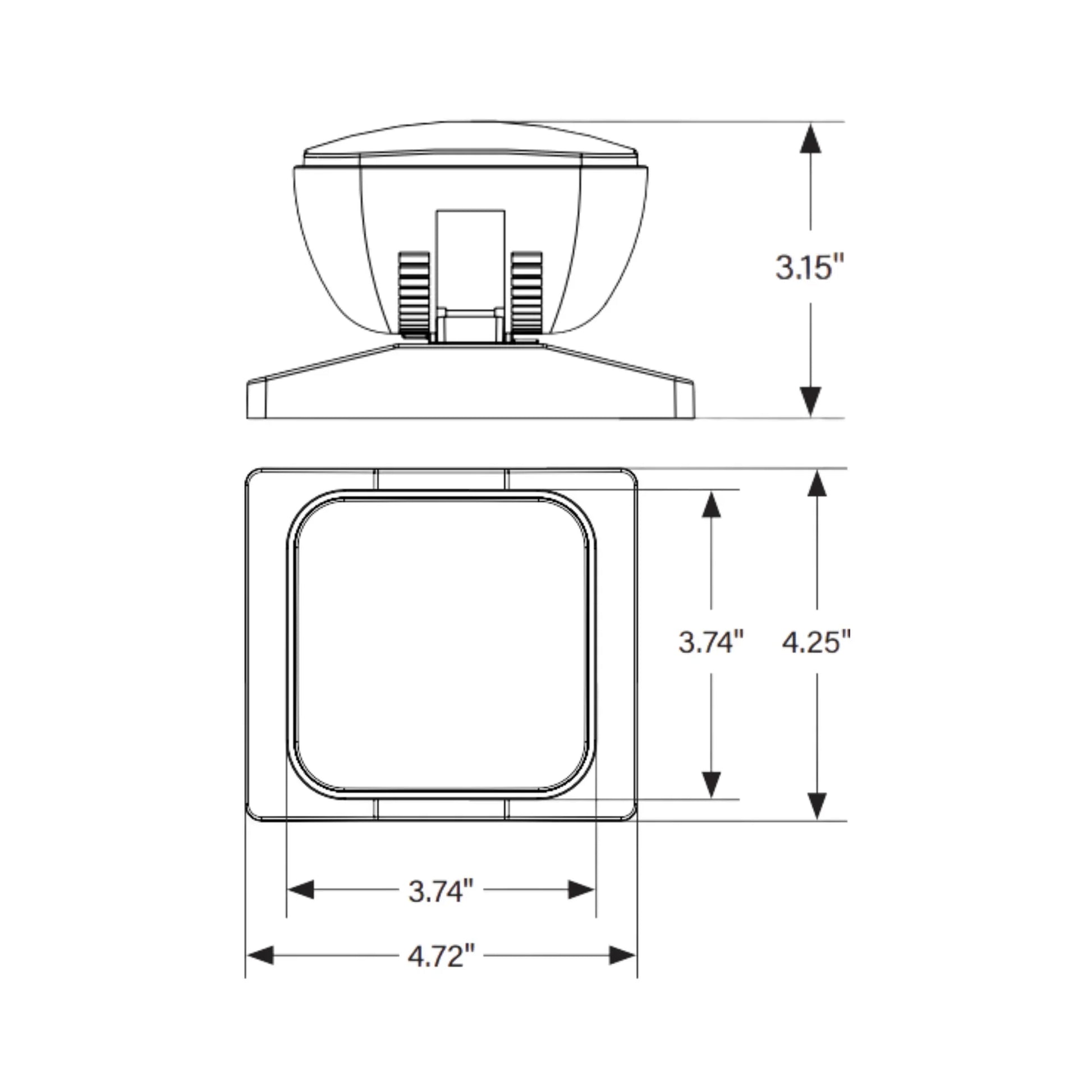

• Dimensions: 4.72 in (L) x 3.15 in (W) x 4.25 in (H)
• Weight: 0.5 lb
• UPC: 843654165165
