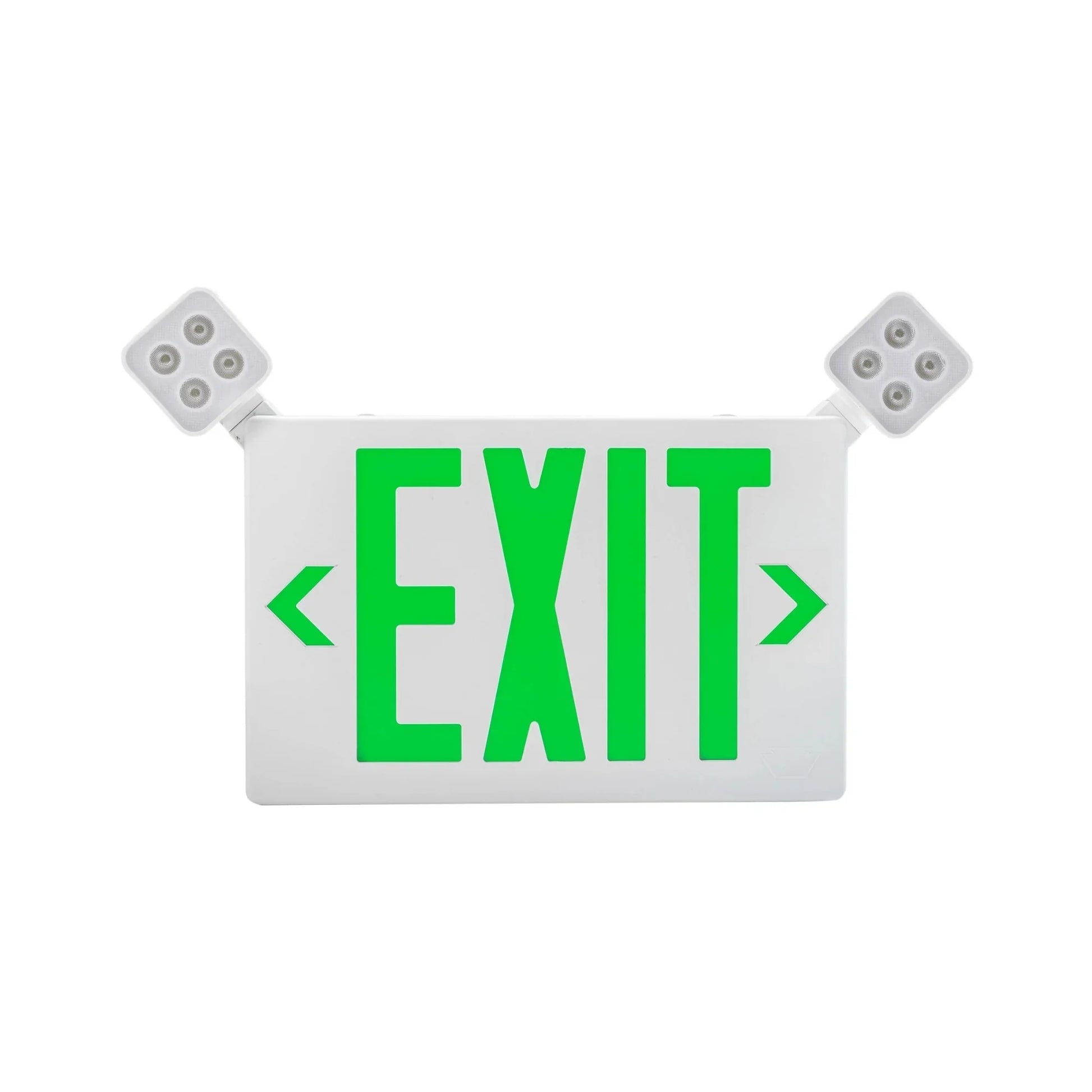

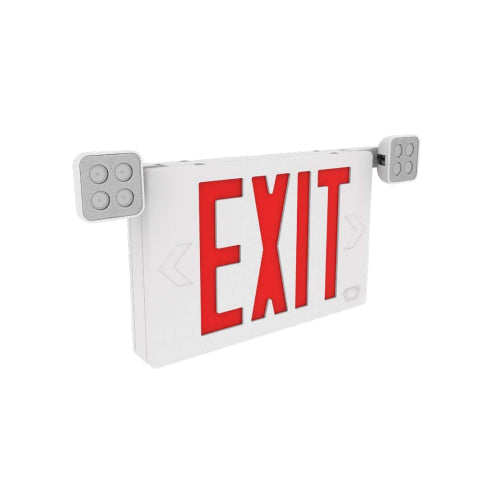

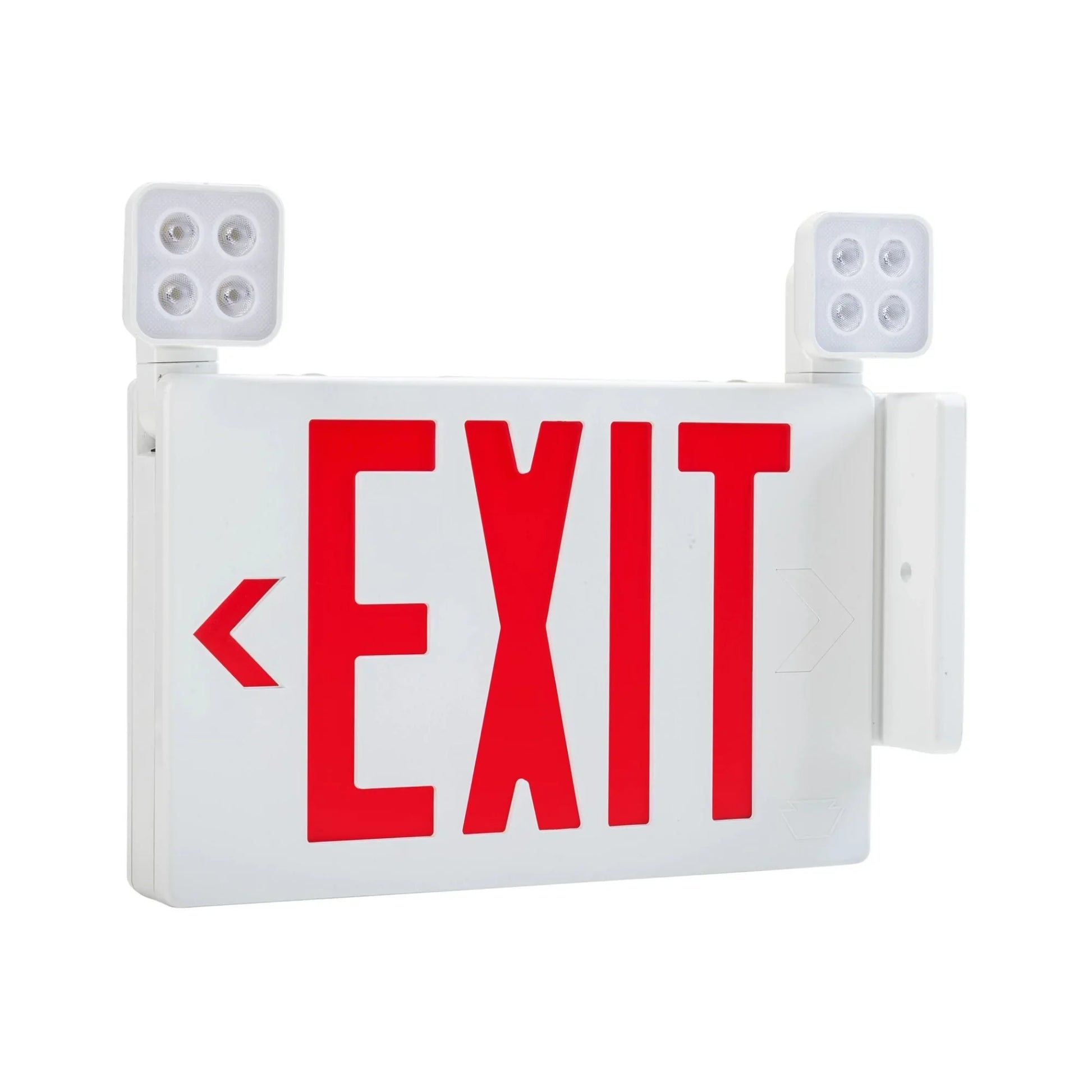

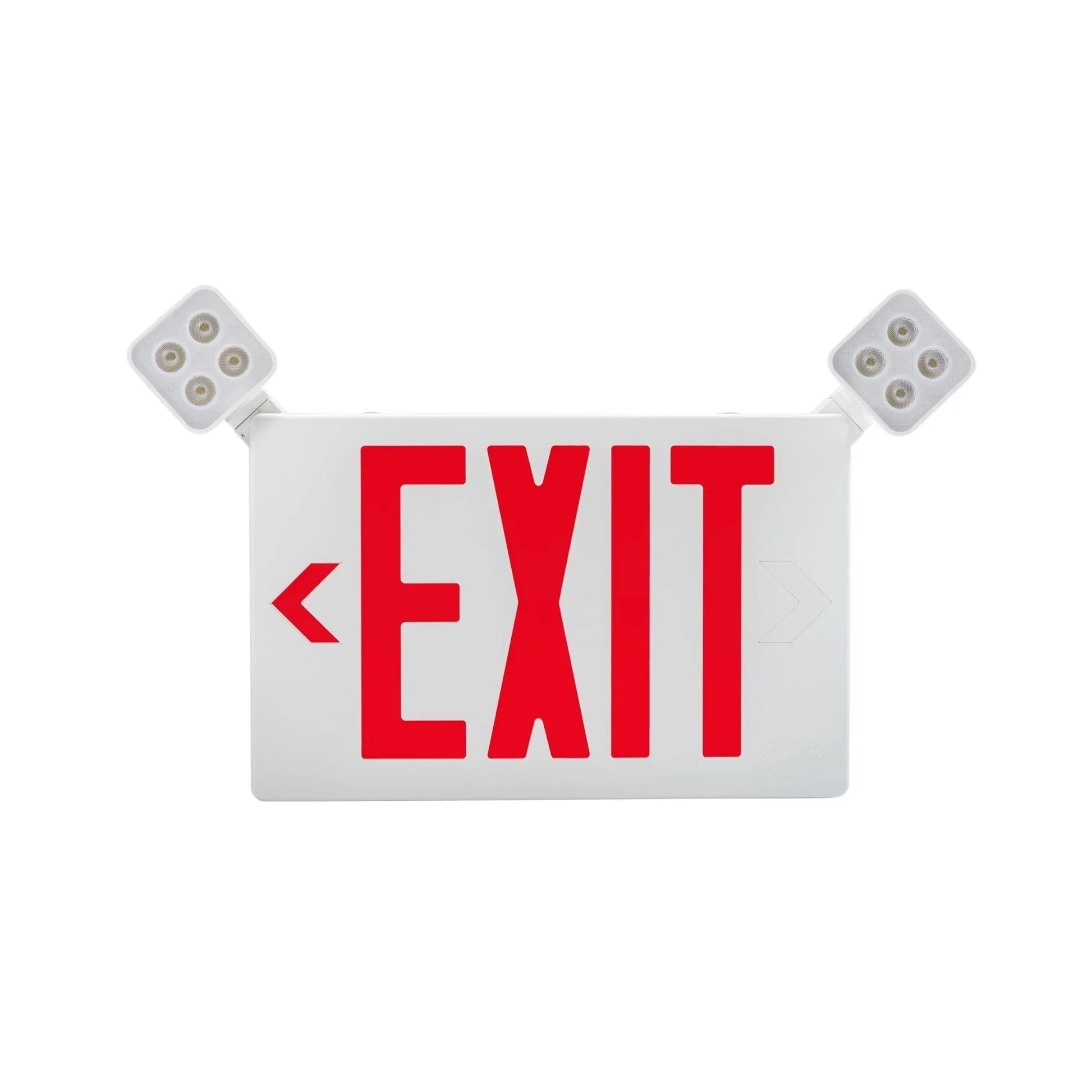

Keystone KT-EC-TP2-WH3RGW-SU-RC LED Exit Emergency Combo 2W (Single or Double Face) KT-EC-TP2-WH3RGW-SU-RC

Product Description

The Keystone KT-EC-TP2-WH3RGW-SU-RC is an LED exit emergency combo featuring dual adjustable heads, remote capability, and universal 120-277V operation. The unit provides 160 lumens at 6500K using a 2W LED module and includes an integrated NiMH battery backup that supplies 90 minutes of emergency power. It supports single- or double-face configurations with switchable red or green letters and is surface mountable with a universal J-box pattern.

• Universal input voltage 120-277V, 2W LED module, 160 lumens, 6500K color temperature
• Integrated 2000mAh NiMH battery providing 90 minutes of emergency backup with 24-hour recharge, integrated test switch and charge indicator
• Dual adjustable LED heads, remote head capable, single- or double-face selectable, switchable red/green letters, surface mount (top/side/back) with universal J-box

Product Highlights

LED exit combo, 2W/160 lm at 6500K, 120-277V, 2000mAh NiMH 90-minute backup, dual adjustable heads, remote capable

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-EC-TP2-WH3RGW-SU-RC

Technical Specifications

• Brand: Keystone
• Manufacturer Part Number: KT-EC-TP2-WH3RGW-SU-RC
• Input Voltage: 120-277V
• Power Consumption: 2 Watts
• Delivered Lumens: 160 Lumens
• Color Temperature: 6500K
• Battery Type: NiMH (2000mAh)
• Battery Backup Duration: 90 minutes
• Recharge Time: 24 hours
• Mounting Type: Surface mount (top, side, back)
• Mounting Pattern: Universal J-box
• Housing Material: Thermoplastic (UL 94 5VA)
• Head Configuration: Dual adjustable LED heads
• Face Options: Selectable single or double face
• Lettering: Switchable red or green letters
• Test/Indicator: Integrated test switch and charge indicator
• Certifications: cULus / UL 924 listed, Damp location rated, RoHS compliant, Title 20

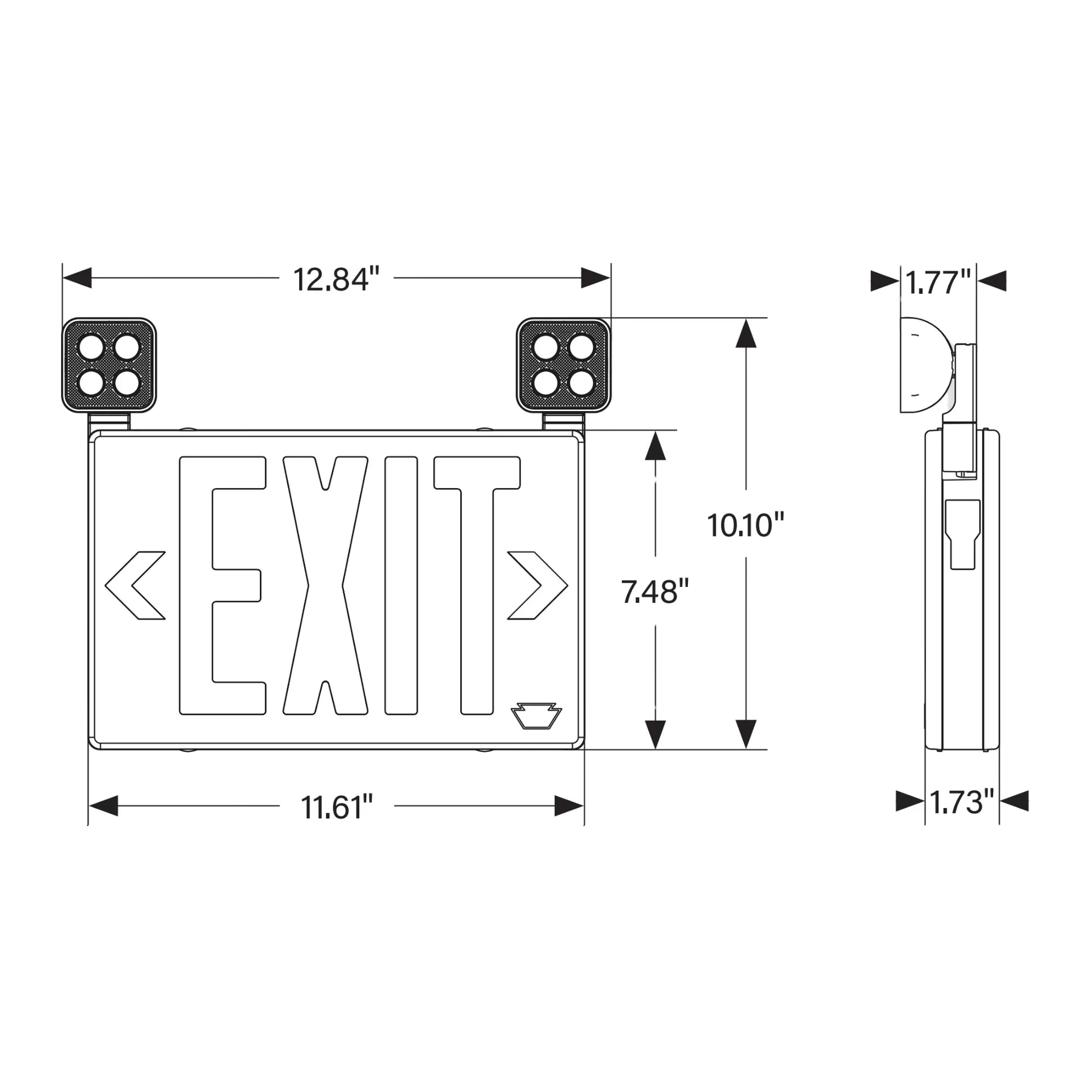

• Dimensions: 12.84 in x 1.77 in x 10.10 in
• Weight: 2.40 lb
• UPC: 843654169217
• Family: Keystone Smart Safe Exit Combo
