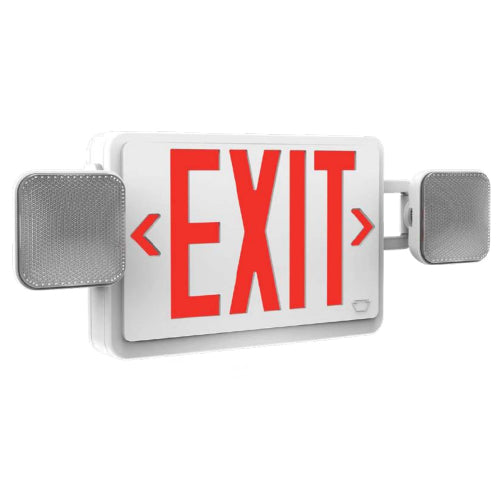

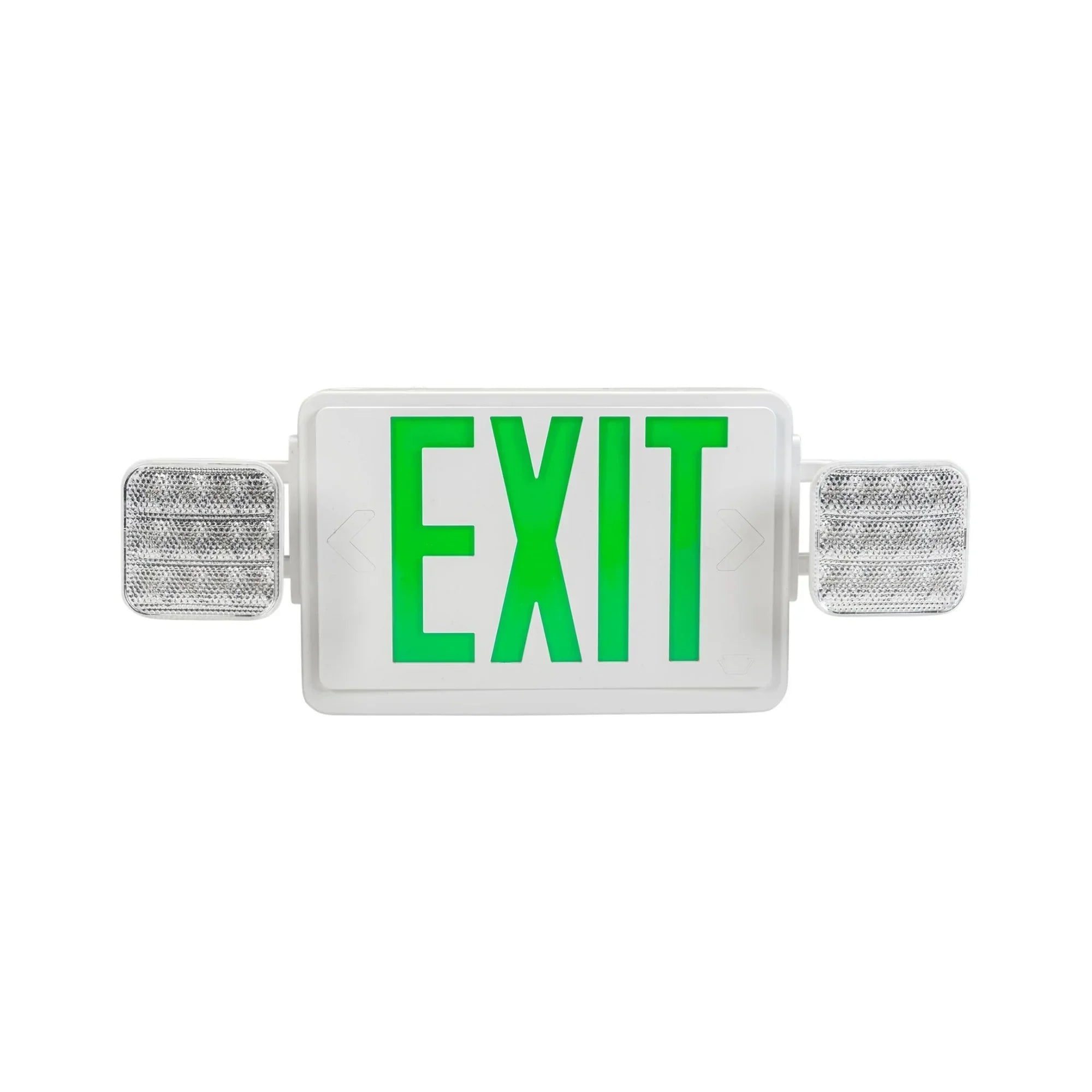

Keystone KT-EC-TP1-WH3RGW-SD-RC Exit Emergency Combo 3.5-4W (Surface Mount) KT-EC-TP1-WH3RGW-SD-RC

Product Description

Keystone KT-EC-TP1-WH3RGW-SD-RC is an LED exit emergency combo with integrated dual LED heads, switchable red/green lettering, and battery backup for emergency illumination. The unit operates on universal 120-277V input, consumes approximately 3.5-4W and delivers about 200 lumens at 6500K. It is remote-head capable, surface mountable (top or back) with a universal J-box pattern, and is certified for damp locations.

• Universal 120-277V input; approx. 3.5-4W power consumption; 200 delivered lumens at 6500K
• Integrated NiMH battery (2400 mAh) providing 90 minutes of emergency backup and 24-hour recharge time
• Surface mountable (top or back) with universal J-box pattern; dual heads; switchable red/green lettering; integrated test switch and charge indicator

Product Highlights

Dual-head LED exit combo, switchable red/green letters, remote-capable, 90-minute NiMH backup

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-EC-TP1-WH3RGW-SD-RC

Technical Specifications

• Brand: Keystone
• MPN: KT-EC-TP1-WH3RGW-SD-RC
• Input Voltage: 120-277V
• Total Wattage: 3.5-4W
• Delivered Lumens: 200 lm
• Color Temperature: 6500K
• Battery Type: Nickel-metal hydride (NiMH)
• Battery Capacity: 2400 mAh
• Battery Backup Duration: 90 minutes
• Recharge Time: 24 hours

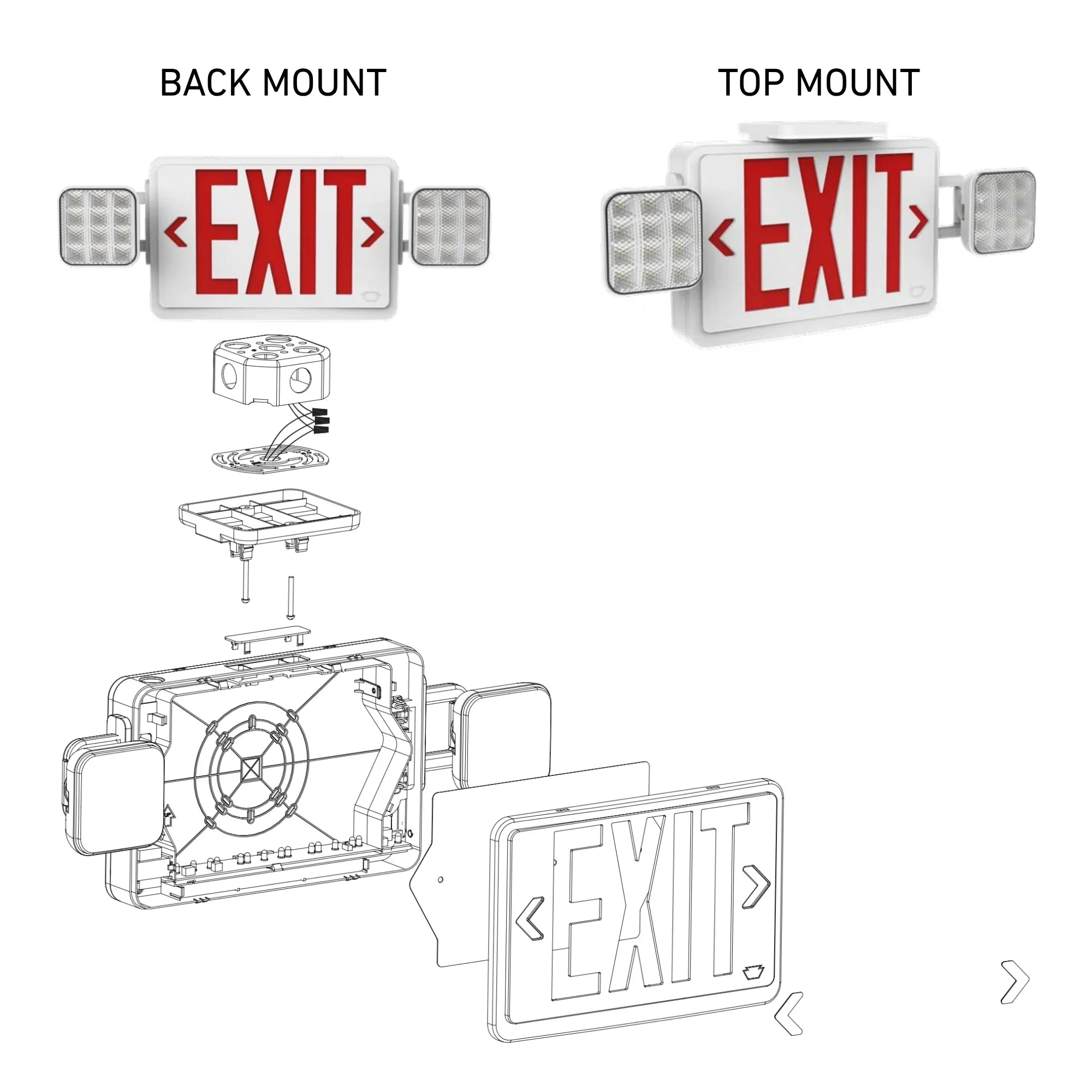

• Mounting Type: Surface mount (top or back); universal J-box pattern
• Housing Material: Thermoplastic (UL 94 5VA)

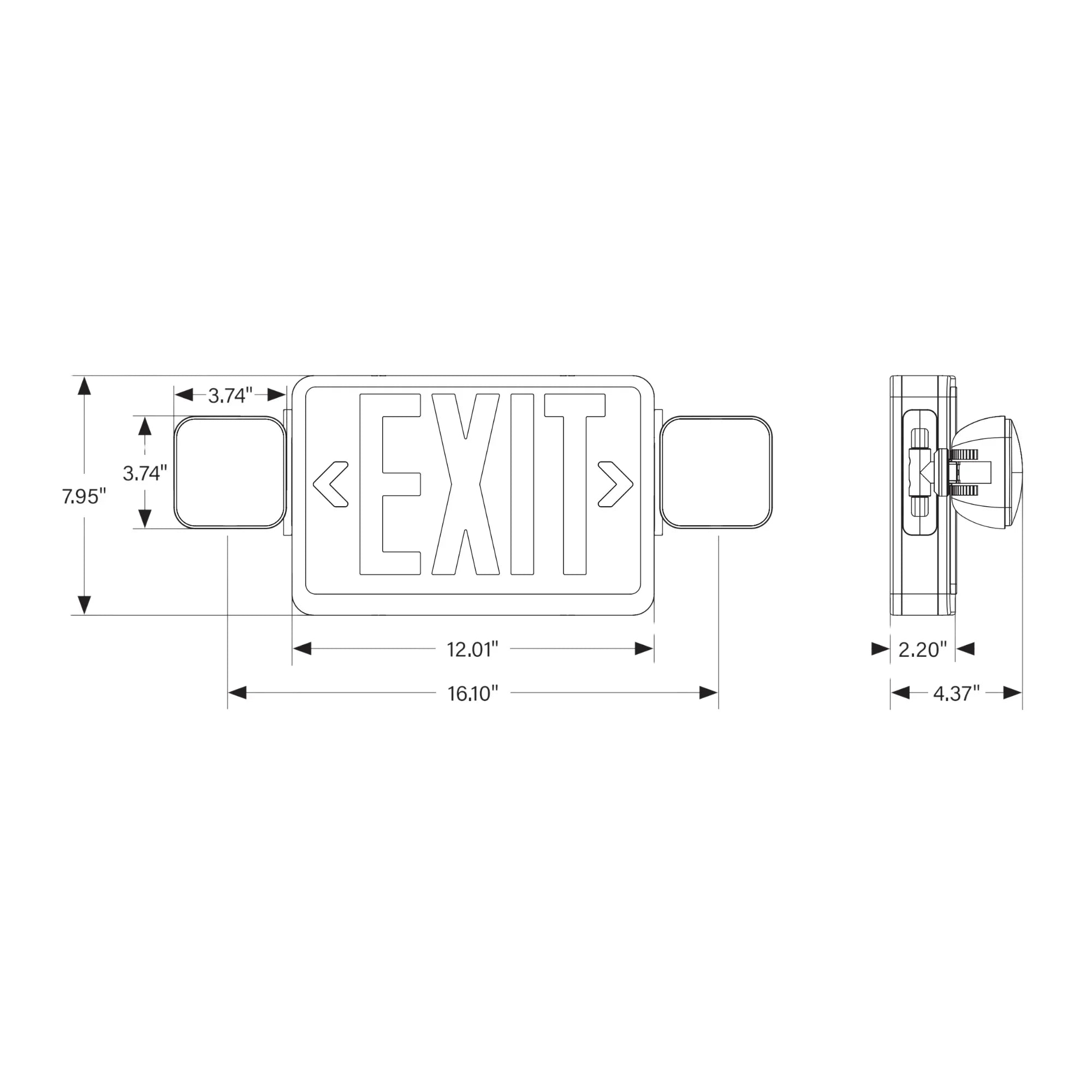

• Dimensions: 16.1 in x 4.37 in x 7.95 in
• Weight: 3.4 lb
• Lamp Heads: Dual heads
• Facing Options: Single or double face

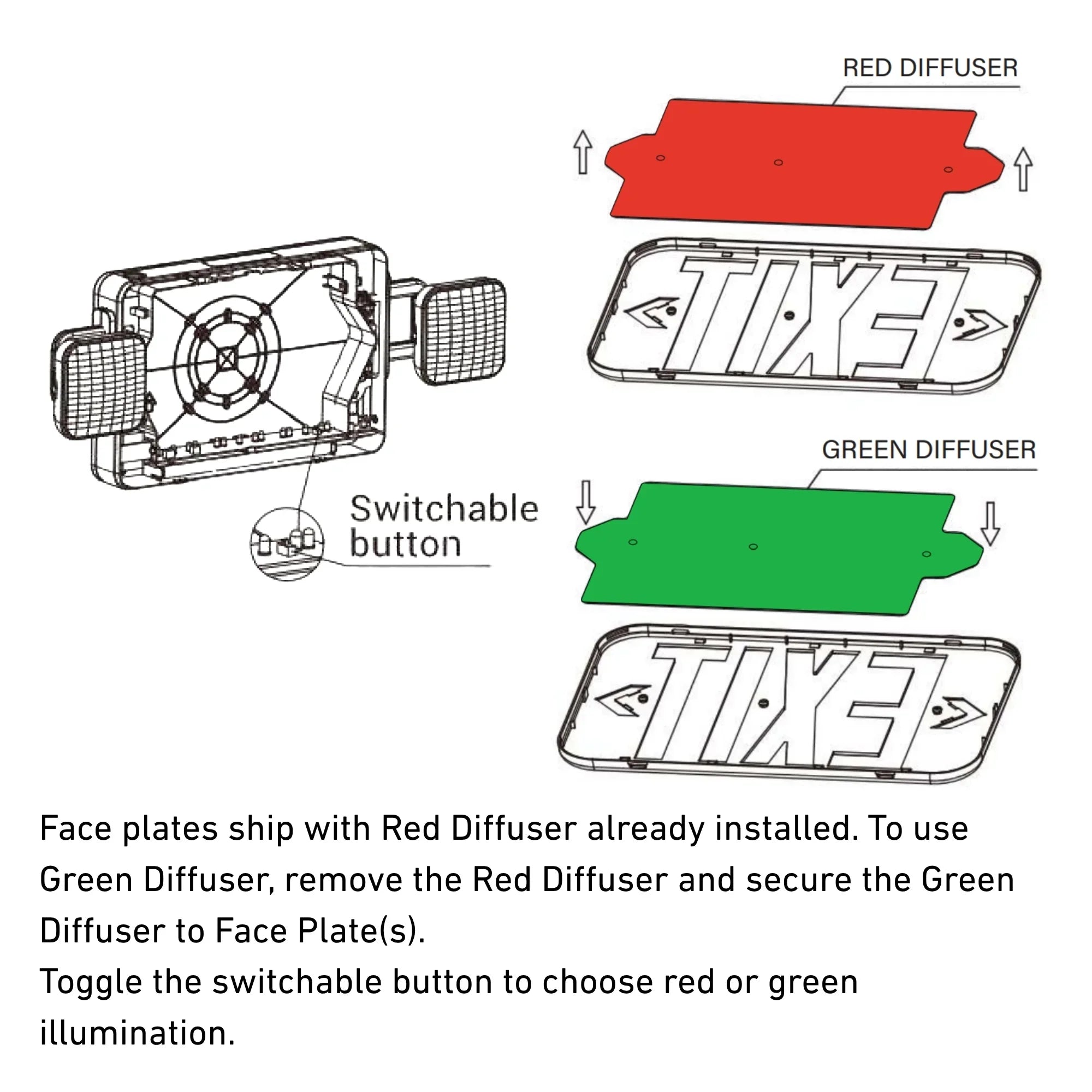

• Lettering: Switchable red and green
• Test Switch: Integrated test switch and charge indicator
• Remote Capable: Yes
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Certifications: cULus; UL 924; RoHS; Damp location rated; Title 20/24 compliant
• UPC: 843654165264
