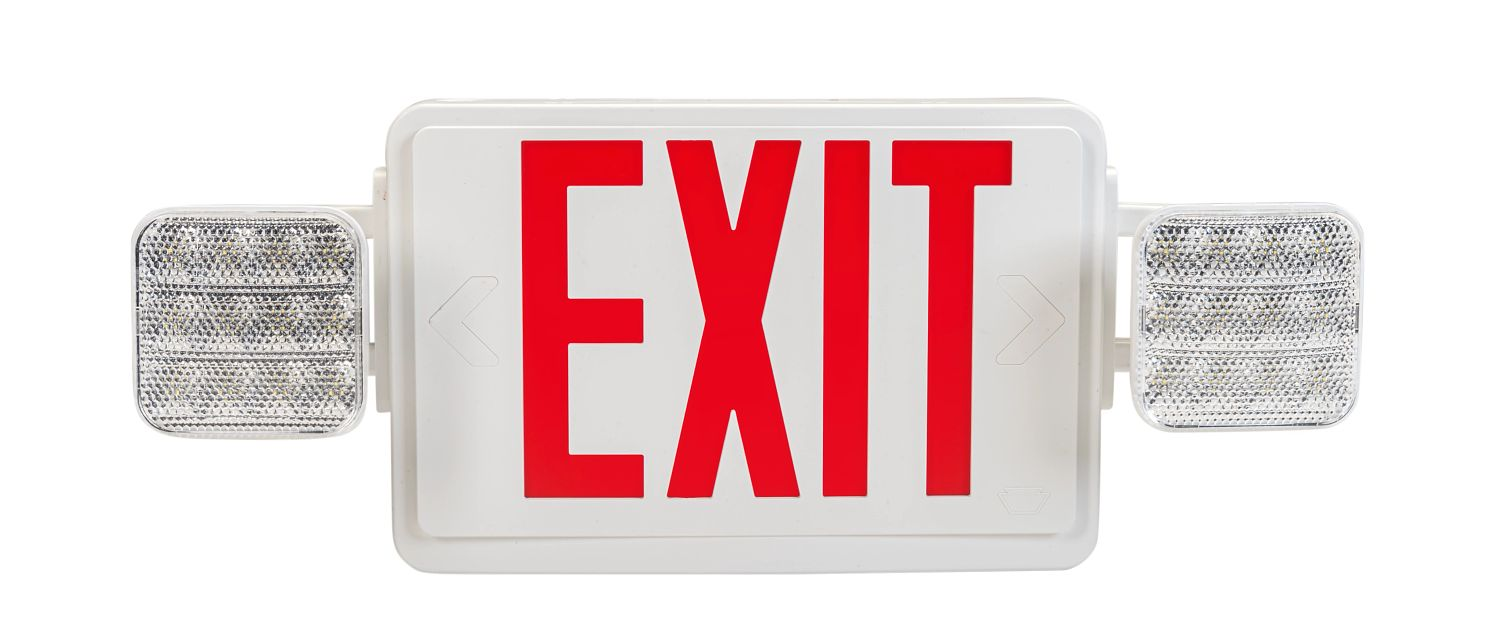

Keystone KT-EC-TP1-WH3RGW-SD Combo Exit Sign 3.5W (KTECTP1WH3RGWSDRC)

Product Description

Keystone KT-EC-TP1-WH3RGW-SD is an LED combo exit sign with integrated emergency battery backup and dual adjustable LED heads designed for surface mounting. It features switchable red or green lettering, 120/277 V input, a NiMH 1200 mAh battery providing 90 minutes of emergency runtime, and a built-in test switch and charge indicator. The unit is UL rated for damp locations and supports single or double facing installations.

• 3.5 W LED combo with dual adjustable heads, 6500 K color temperature and 200 lumens output
• Integrated NiMH 1200 mAh battery backup with 90 minutes emergency runtime, built-in test switch and charge indicator
• Surface mount with universal J-box pattern, 120/277 V input, switchable red or green lettering, UL damp location rating

Product Highlights

Dual-head LED exit combo with NiMH backup, switchable red or green lettering, 120/277 V input, surface mount with universal J-box

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-EC-TP1-WH3RGW-SD

Technical Specifications

• Brand: Keystone
• Manufacturer Part Number: KT-EC-TP1-WH3RGW-SD
• Product Type: Combo exit sign (exit and emergency heads)
• Power Consumption: 3.5 W
• Input Voltage: 120/277 V
• Max Input Current: 31 mA
• Heads: Dual adjustable LED heads
• Facing: Single or double facing (universal)
• Lettering: Switchable red or green
• Battery Type: Nickel-Metal Hydride (NiMH)
• Battery Capacity: 1200 mAh
• Emergency Runtime: 90 minutes
• Mounting Type: Surface mount (back and top) with universal J-box mounting pattern
• Housing Material: Thermoplastic
• Housing Flame Rating: UL 94 5VA
• Color Temperature: 6500 K
• Lumens: 200 lm
• CRI: >70
• Operating Temperature: 0 C to 40 C (32 F to 104 F)
• Certifications: UL certified for damp locations; UL 924; cUL/UL Listed; RoHS Compliant; Title 20
• Dimensions: 16.10 in x 4.37 in x 7.95 in
• Weight: 4.90 lbs
• Features: Integrated test switch and charge indicator; remote capable
• Replacement Part Number: KTECTP1WH3RGWSDRC
