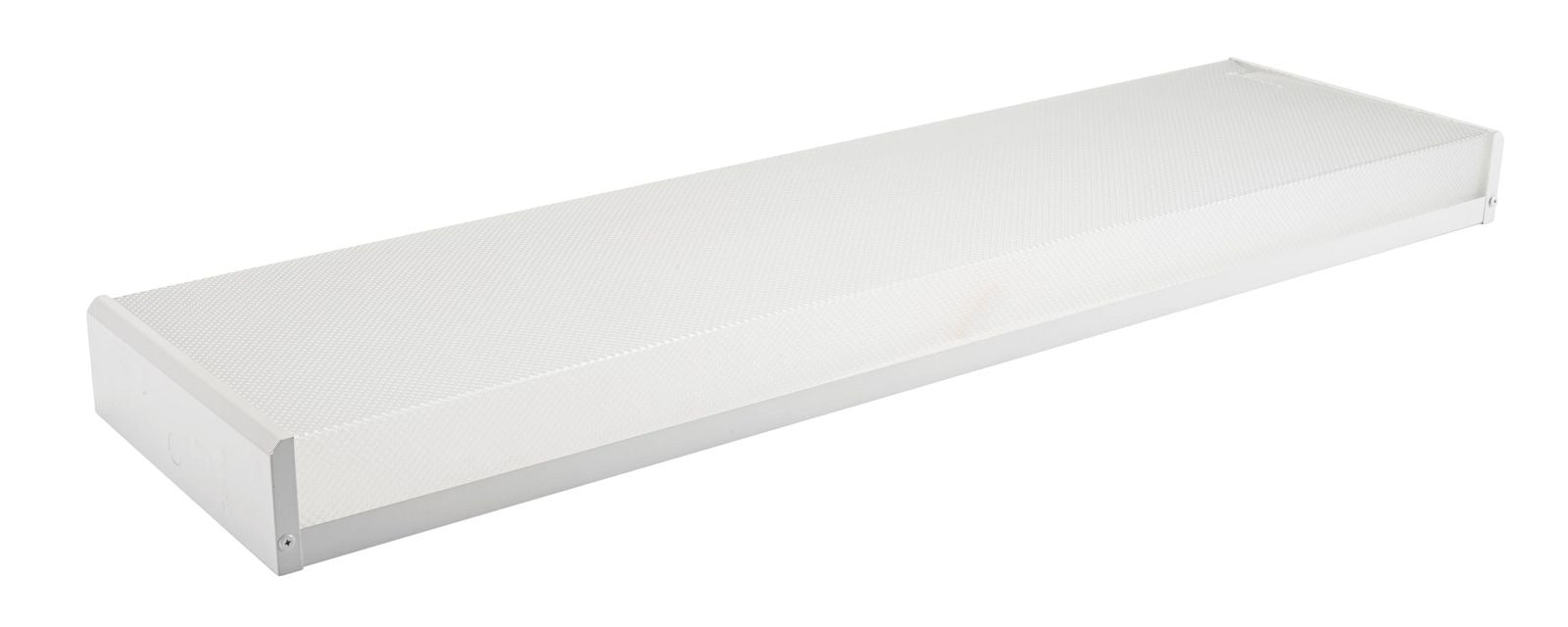

Keystone kt-ddwledt8-4-4l-dp 4ft 4-lamp Led Wrap Fixture

Product Description

The KEYSTONE TECHNOLOGIES kt-ddwledt8-4-4l-dp is a 4-foot, 4-lamp LED-ready wrap fixture designed for direct-wire ballast bypass T8 LED tube installations. This fixture ships without a ballast and comes pre-fitted with unshunted tombstones, making it compatible with Type B ballast bypass LED tubes out of the box. It is a surface-mount wrap-style luminaire intended for general commercial and industrial lighting applications such as storage areas, utility rooms, stairwells, and similar spaces. Electricians and lighting contractors install this unit as a new fixture or as a replacement for aging fluorescent wrap fixtures being converted to LED.

This fixture is suited for retrofit and new-construction projects where the goal is to eliminate the ballast from the circuit entirely. The 4-lamp, 4-foot configuration supports a standard linear lamp layout common in light commercial, warehouse, and institutional settings. Because no ballast is included, lamp compatibility is determined by the T8 ballast bypass LED tube selected for the application. The unshunted tombstone sockets are the correct socket type required for ballast bypass wiring.

Key Features

• LED-ready wrap design with no ballast included, supporting direct-wire T8 LED tube installations
• Ships with unshunted tombstones required for ballast bypass T8 LED tubes
• 4-foot length with 4-lamp capacity for broad area coverage
• Eliminates ballast-related failures and reduces long-term maintenance
• Suitable for retrofit replacement of fluorescent wrap fixtures

Compatibility

Designed for use with ballast bypass Type B T8 LED tubes in a 4-foot length. Unshunted tombstones are required for ballast bypass wiring, and this fixture ships with that socket type installed. Confirm tube wattage and driver requirements with the selected LED tube manufacturer before installation.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Disconnect and lock out power at the circuit breaker before beginning any wiring work. Ballast bypass wiring connects line voltage directly to the lamp sockets, so correct polarity and secure terminations are critical. Do not install shunted tombstone sockets or standard fluorescent ballasts with this fixture.
