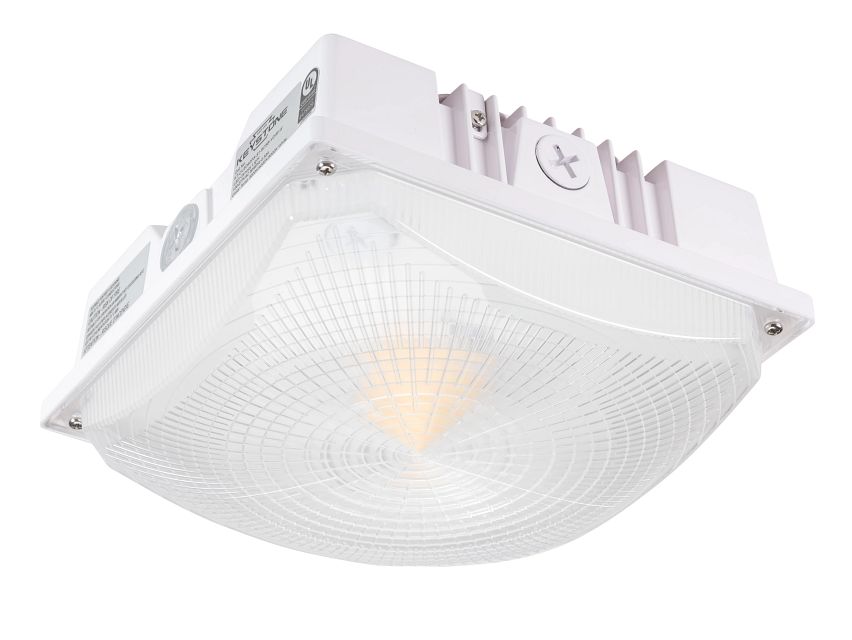

Keystone KT-CLED40PS-S1-8CSB-VDIM-W LED Canopy Light 20/30/40 Watt

Product Description

The Keystone KT-CLED40PS-S1-8CSB-VDIM-W is an LED canopy light suited for parking garages, covered walkways, and building overhangs. This light offers selectable wattage and color temperature for flexibility. It includes a built-in photocell that allows for dusk-to-dawn operation, making it efficient for outdoor use.

• Power and color select technology for customizable settings.
• Integrated photocell for automatic operation based on light levels.
• 0-10V dimming capabilities enhance energy savings.

Product Highlights

This canopy light is designed with a robust die-cast aluminum housing suitable for wet locations. Its various features make it ideal for commercial installations.

Product Information

Standard Information

• Brand: Keystone
• Manufacturer Part Number: KT-CLED40PS-S1-8CSB-VDIM-W

Technical Specifications

• UPC: 843654151960
• Input Voltage: 120-277V
• Wattage: 20/30/40 Watt
• HID Equivalent: 175 Watt
• Lumens: 2,500-5,600 Lumens
• Color Temperature: 3000K, 4000K, 5000K
• Beam Angle: 160 Degrees
• CRI: 80+
• Dimmable: Yes, 0-10V
• Operating Temperature: -40 Degrees F to 122 Degrees F
• Life Rating: 100,000 Hours
• IP Rating: IP65
• Location Rating: Wet
• Length: 8.12 inches
• Width: 8.12 inches
• Height: 3.99 inches
• Housing Material: Polycarbonate
• Finish: White
• Options: Photocell
• Mounting: Junction Box
