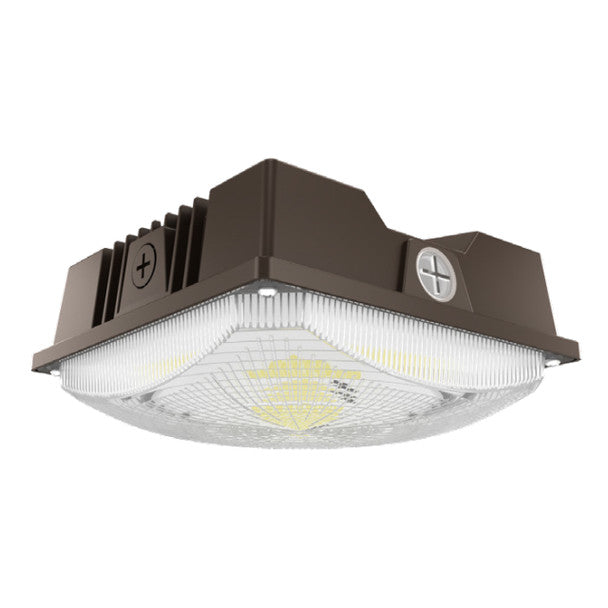

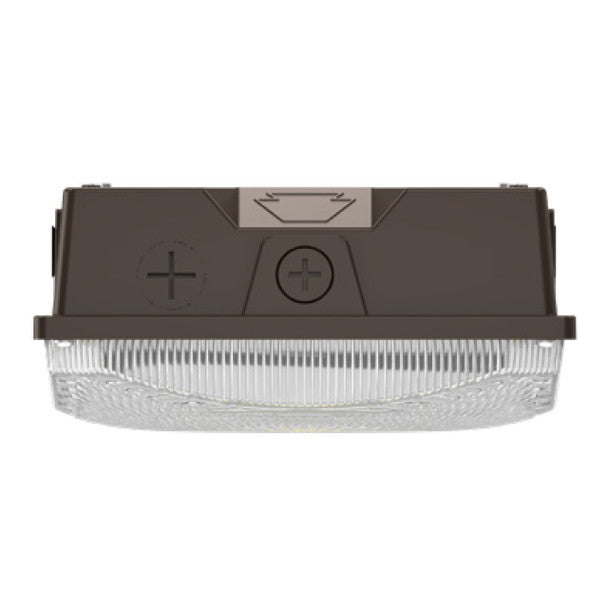

Keystone KT-CLED40PS-S1-8CSB LED Canopy Light 20W/30W/40W

Product Description

The KEYSTONE KT-CLED40PS-S1-8CSB LED Canopy Light accepts universal 120-277V input and generates 2500-5600 lumens. This canopy light features selectable 20W/30W/40W power and 3000K/4000K/5000K color temperature options. Ideal for parking garages, covered walkways, and building overhangs, it offers capabilities that separate them from the pack.

• Features Keystone Power Select technology (40/30/20W).
• Offers Keystone Color Select technology (3000K/4000K/5000K).
• Includes a heavy-duty die-cast aluminum housing with (3) 1/2" NPT threaded conduit hubs.

Product Highlights

This LED canopy light is designed for easy installation and durability, suitable for wet locations and standard junction box mounting.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-CLED40PS-S1-8CSB

Technical Specifications

• Brand: Keystone
• Lamp: LED Canopy Lights
• Wattage: 20W/30W/40W
• Lumens: 2500, 2600, 2800, 3750, 3900, 4200, 5000, 5200, 5600
• Color Temperature: 3000K/4000K/5000K
• Input Voltage: 120-277V
• CRI: 80+
• Dimming: Analog (0-10V)
• Dimensions: 8.12" L x 8.12" W x 3.99" H
• Fixture Length: 8"
• Finish: Bronze
• Warranty: 5-Year Manufacturer Warranty
• Rated Hours: 100,000 Hours
• Beam Angle: 160 Degrees
• Min Operating Temp: -40 Degrees F
• Special Features: CCT Selectable, Photocell Installed, Wattage Selectable, Wet Location Rated
• Length: 8.03"
• Width: 8.03"
• Height: 3.66"
• Manufacturer: Keystone Technologies
• MPN: KT-CLED40PS-S1-8CSB-VDIM
• Model: KT-CLED40PS-S1-8CSB-VDIM
• Equivalent: 175 Watt Metal Halide
• Efficacy: 125-140 lumens / Watt
• Life Rating: 100,000 Hours
• Voltage: 120/208/240/277
• Frequency: 60 Hz
• Power Factor: >0.90
• THD: <20%
• Operating Temperature: -40°F to 122°F
• Dimmable: Yes, 0-10V
• Options: Photocell
• Mounting: Junction Box
• Housing Material: Polycarbonate
• Lens Material: Plastic
• IP Rating: IP65
• Location Rating: Wet
• UL: Yes
• FCC: Yes
• DLC: Yes
• Certificate: cUL/UL Listed, DLC Premium, FCC
• Maximum Voltage: 120V-277V
