Keystone KT-ALED140PS-M2-OSB-SF-8CSB-VDIM-P Area Light 140W

Product Description

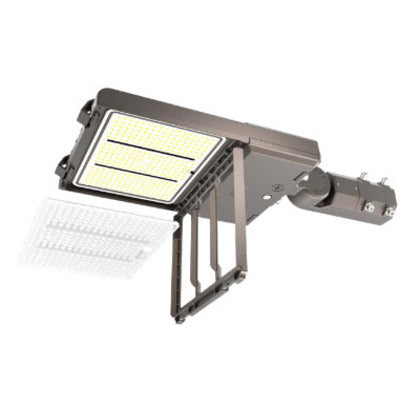

The KEYSTONE KT-ALED140PS-M2-OSB-SF-8CSB-VDIM-P is a 140W Optic Swap LED Area Light. It features power and color selection, with included Type III, IV, and V optics. The area light operates with a 120-277V input and has a bronze housing. It also includes a shorting cap and 3-pin twist-lock photocell and is 0-10V dimmable.

• OpticSwap is a Keystone innovation that makes switching optics tool free
• Fixture retains its weather-resistant IP65 rating
• XFit Area Lights with OpticSwap stocking specials include everything in a single box: fixture, three optics – Type III, IV, and V – pre-installed mount, dusk-to-dawn photocell, and shorting cap

Product Highlights

This LED area light offers versatile lighting solutions with its selectable wattage and color temperatures, making it ideal for various outdoor applications.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: KT-ALED140PS-M2-OSB-SF-8CSB-VDIM-P

Technical Specifications

• Color Temperature: 3000 (Warm White), 4000 (Cool White), 5000 (Bright White), Selectable
• Wattage: 140 Watt
• Color: Bronze
• Light Technology: LED
• Volts AC Range: 120 - 127
• Brand: Keystone
• Pack Size: 1/ea
• UOM: ea
• Input Voltage: 120-277V
• Manufacturer Part Number: KT-ALED140PS-M2-OSB-SF-8CSB-VDIM-P
• Type of Area: Pole / Street / Parking Lot, Road & Street
• Color Temp: Selectable CCT
• Lamp Life: 100,000 Hours
• Lumen Output: 9,310 - 20,780
• Ballast Start Type: Instant Start
• CRI: > 80
• Dimmable: Yes
• Minimum Start Temperature: -40 Deg F
• Voltage: Multivolt 120V-277V
• Manufacturer: Keystone Technologies
• Technology: LED
• Average Life: 50000 hr
• Ballast Type: 0 to 10 V Dimming
• Color Rendering Index (CRI): >80
• Lumens: 20700 Lumens
• Mounting Type: Slip Fitter
• Type: Type III, IV & V Distribution
• Lamp Type: LED
• Voltage Rating: 120 to 277 V
• Housing Material: Die Cast Aluminum
• Housing Finish: Bronze
• Light Output: 125 Lumens/W
• Lamp Wattage: 140 W
• Enclosure Type: IP65
