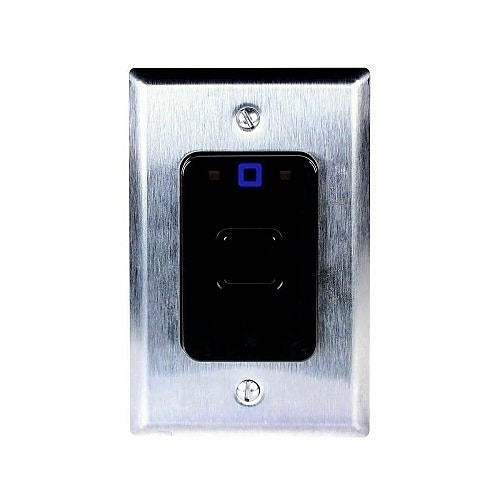

Keyscan SRK-RNFC2 SRK Series Single Gang Flush Mount Reader with Ambiance and Aurora Software

Product Description

The Keyscan SRK-RNFC2 is a single gang flush mount reader designed for secure access control applications. It is compatible with the dormakaba lodging and multihousing credential format. The reader includes a stainless steel plate, a BLE module, and a wall plate retainer. The connection is standardized with Wiegand output and features a terminal strip connection on the back.

• Compatible with multiple ACU models
• Includes a stainless steel plate and BLE module
• Standard maximum distance of five hundred feet with six-conductor reader cable

Product Highlights

This reader works with dormakaba ACUs such as CA150, CA250, CA4500, and CA8500. It requires either the CF10004 or CF10010 ACU reader firmware for operation. It does not support elevator ECU systems.

Product Information

Standard Information

• Brand Name: Keyscan by dormakaba
• Country of Origin: United States

Technical Specifications

• Model Number: SRK-RNFC2
• Power Supply: 12 Vdc @ 200 mA
• Maximum Distance: 500 feet
• Credential Format: 17 byte
• Output Standard: Wiegand
