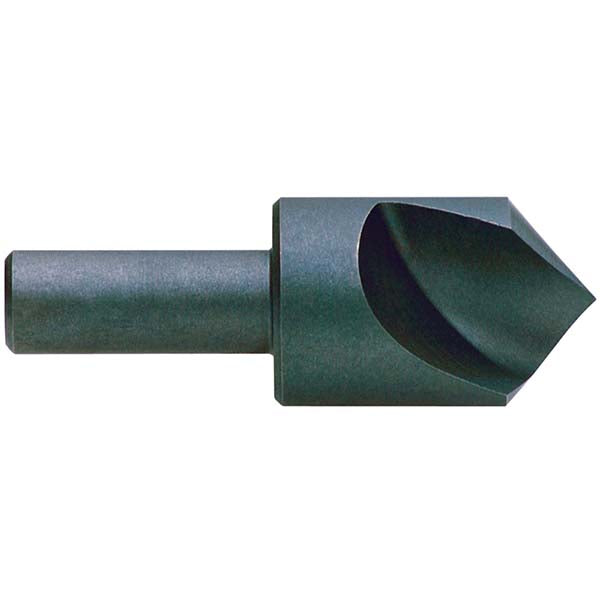

Keo 919-000-135 KEO 1.1/2x3/4 SNGL FLUTE 90DEG COUNTERSINK HSS 53229

Product Description

The Keo 919-000-135 is a high-speed steel countersink designed for precision drilling and finishing. It features a diameter of one and one-half inches and a shank diameter of three-quarters of an inch, suitable for various milling applications. This countersink allows for accurate angle cutting at ninety degrees.

• Material: High-Speed Steel
• Flute Count: 1
• Right-Hand Cut

Product Highlights

Ideal for creating smooth finishes on drilled holes, this countersink is efficient in metalworking. It is used extensively in the milling process and suitable for different materials.

Product Information

Standard Information

• Brand: Keo
• Part Number: 1-169-924

Technical Specifications

• Material: HSS
• Coating: Uncoated
• Diameter: 1.5000 inches (38.100 mm)
• Shank Diameter: 0.7500 inches (19.050 mm)
• Overall Length: 2.8750 inches (2 7/8)
• Flutes: 1
• Direction: Right Hand
• Angle: 90 degrees
• Shank Length: 1.2500 inches (31.750 mm)
