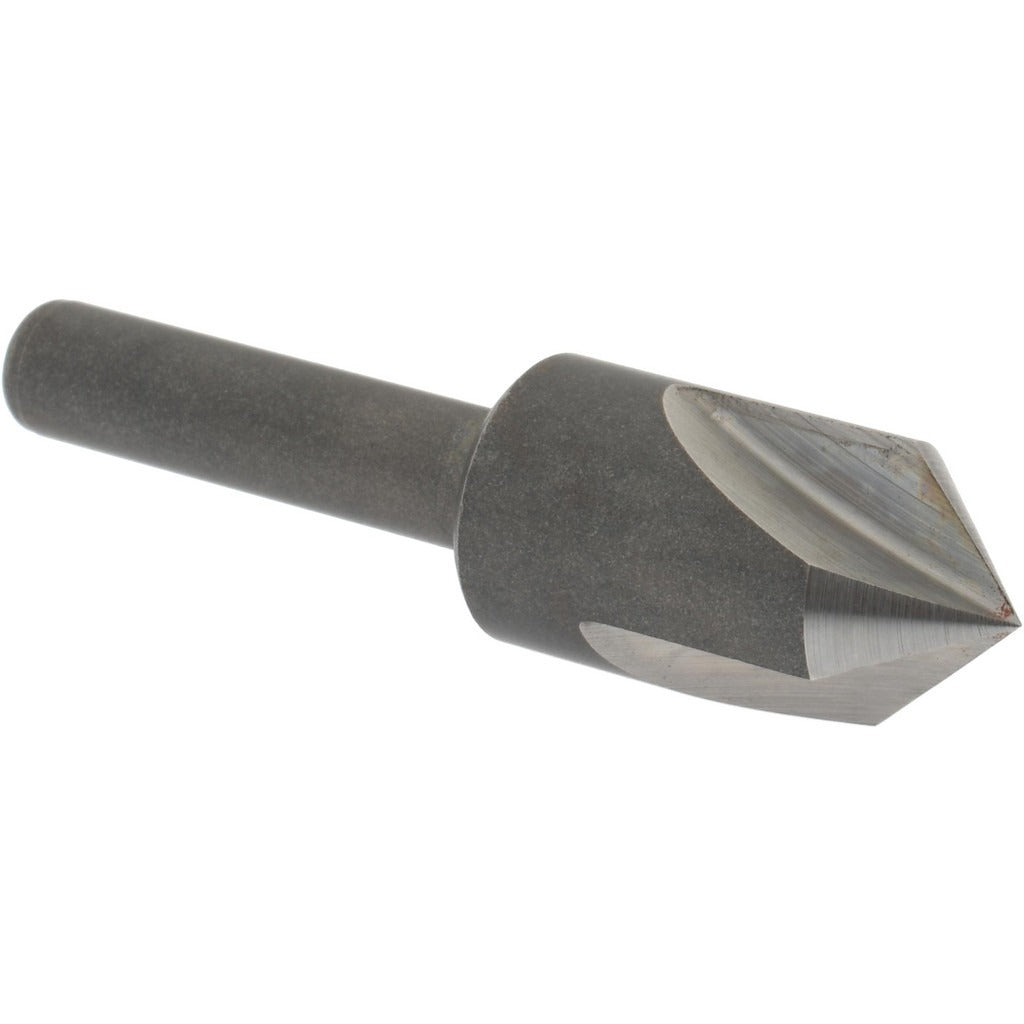

Keo 917-000-023 Countersink 1/2 in 90 Degree 3 Flute Hss

Product Description

The KEO 917-000-023 is a single-end countersink designed for creating clean, accurately angled seat recesses in metal workpieces. It features a 1/2 inch head diameter with a 90-degree included angle and 45-degree centerline angle, producing the chamfered seat geometry required for flat-head fasteners. Three flutes provide efficient chip evacuation and a smooth finish on the countersunk surface. The tool is machined from high-speed steel, offering reliable performance across a range of ferrous and non-ferrous materials. A straight cylindrical shank with a 1/4 inch diameter and 1 inch shank length allows secure clamping in standard drill chucks, collets, and quick-change holders. This countersink is suited for machine shop, maintenance, and fabrication work.

This countersink is intended for right-hand cutting operations on drill presses, CNC machining centers, milling machines, and hand drills where a controlled countersink seat is required. It does not include a pilot, making it appropriate for use in pre-drilled holes where the operator or fixture controls concentricity. Typical applications include deburring drilled holes and preparing seats for flat-head screws and bolts in steel, aluminum, brass, and similar materials. It is sized and configured for production and maintenance applications where a 90-degree seat angle is the specified fastener requirement.

Key Features

• 1/2 inch head diameter with 90-degree included angle for standard flat-head fastener seating
• 3-flute geometry for smooth cutting action and effective chip clearance
• High-speed steel construction for durability across common ferrous and non-ferrous materials
• Straight cylindrical 1/4 inch shank fits standard drill chucks and collets
• Right-hand cutting direction compatible with conventional clockwise-rotation tooling setups
• Single-end design without pilot for use in pre-drilled holes with external alignment control

Compatibility

Designed as a standard single-end countersink for use in drill presses, CNC machines, milling machines, and hand drills accepting a 1/4 inch straight cylindrical shank.

Installation Notes

A licensed machinist or experienced fabricator should secure the shank fully in the chuck or collet before operation. Ensure the workpiece is firmly clamped and the spindle speed is appropriate for the material being countersunk. Do not exceed the recommended depth of cut in a single pass on hard materials. Inspect the cutting edges for wear before each use to maintain seat quality and prevent tool breakage.
