Kennedy Valve 11500132945W500 Wall Post Indicator 4-12

Product Description

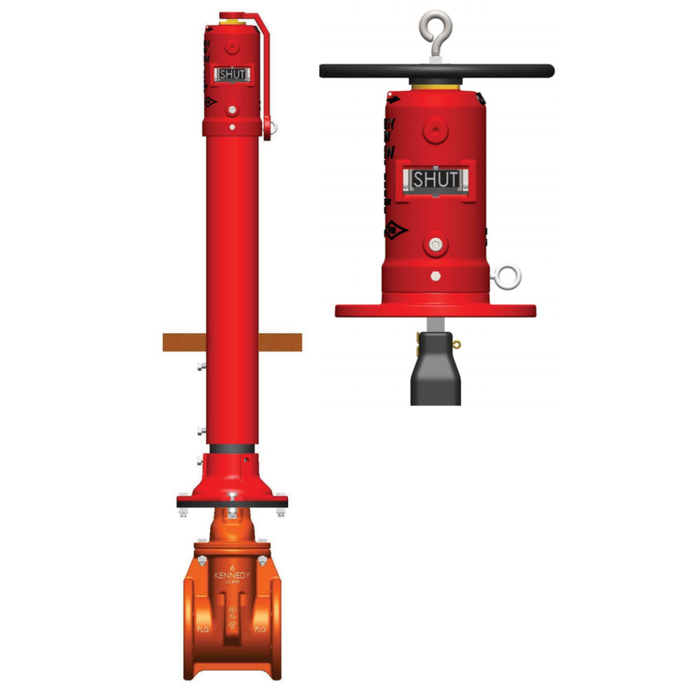

The KENNEDY VALVE 11500132945W500 is a 2945W wall mounted indicator post used for operating a valve through a wall. Kennedy Valve has an angle gear kit available. This option is neither UL listed or FM approved. Wall posts use a handwheel operator. Eyelets are provided for rigging purposes to mount it to the wall until secured.

• Target nut to allow 9 to 45 turns (2945)
• Adjustable indicator plate (open / shut)
• Protected window to indicate the valve open or closed position

Product Highlights

The 2945W wall post is available for use with 4” to 12” Kennedy resilient seated gate valves. It is tapped for supervisory switch.

Product Information

Standard Information

• Brand: KENNEDY VALVE
• Manufacturer Part Number: 11500132945W500

Technical Specifications

• Type: Wall Post
• Style: 2945W
• Valve Size Range: 4 to 12 inch
• Operator: Handwheel
• Stem Material: Steel
• Top Section Material: Cast Iron
• Coating: Base & Housing: Fusion Bonded Epoxy coating Lower Barrel: Black Bitumen coated
• Material: Steel Stem, Cast Iron Top Section
• Series/Model: Model 2945W
• Size: 4 - 12 IN
• Brand: Kennedy Valve
• Vendor Part Number: 11500132945W500
• Length: 15 IN
• Width: 14 IN
