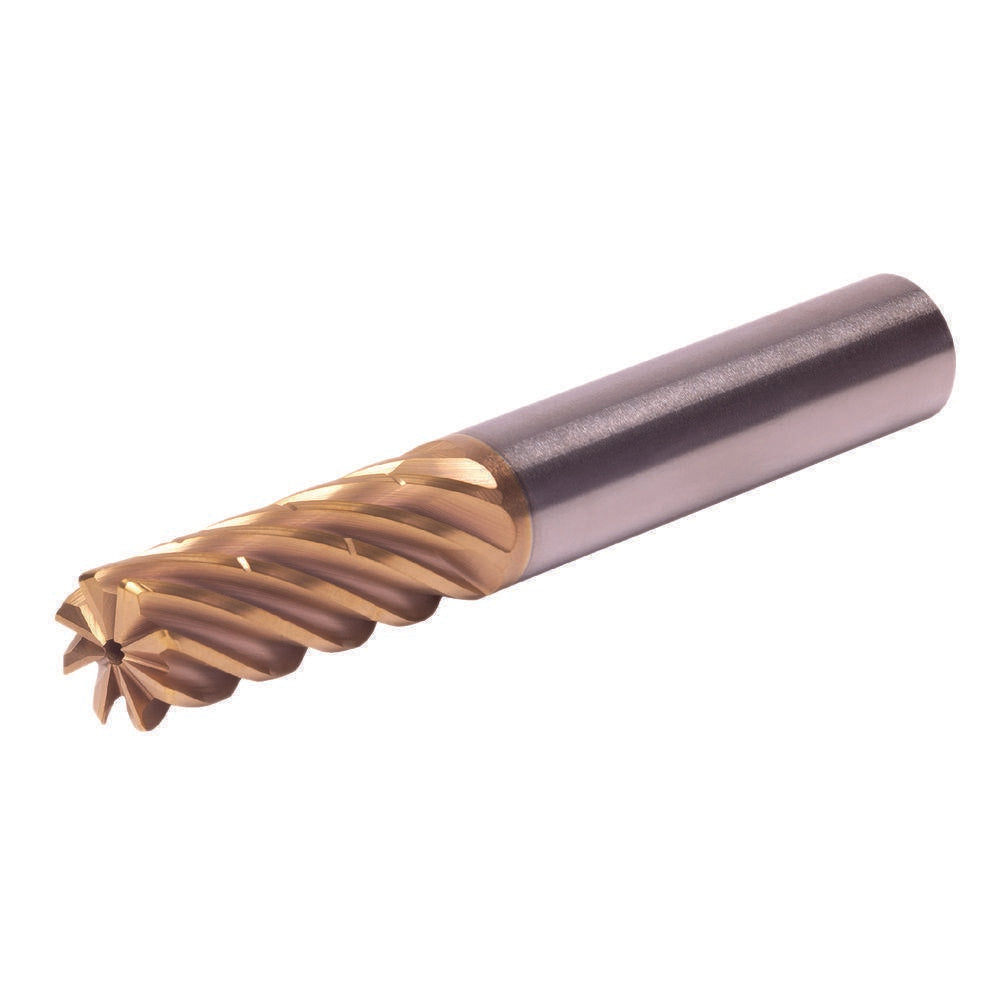

Kennametal 7102857 Corner Radius End Mill 8 Flute Solid Carbide

Product Description

The KENNAMETAL 7102857 is a solid carbide corner radius end mill from the HARVI IV series, designed for high-performance milling in demanding metalworking applications. It features an 8-flute configuration with a 0.030-inch (0.77 mm) corner radius, a 0.5-inch cutting diameter, and a 1.25-inch length of cut. The variable helix and variable index geometry reduce harmonic vibration during aggressive cuts, while the AlCrN coating provides thermal resistance and extended tool life in abrasive materials. Coolant-through capability supports chip evacuation in deep-cavity and high-feed operations. Licensed machinists and CNC tooling technicians are the primary installers and operators.

This end mill is suited for high-speed finishing and semi-finishing passes on hardened steels, stainless alloys, and other difficult-to-machine materials in both production and job-shop environments. The single-end, right-hand cutting and right-hand flute direction are standard for conventional CNC machining center setups. The straight cylindrical shank fits standard collets and end mill holders with a 0.5-inch bore. No centercutting geometry means this tool is not intended for plunge entry.

Key Features

• 8-flute solid carbide construction for high metal removal rates and surface finish quality
• Variable helix and variable index design reduces chatter and vibration in tough materials
• AlCrN coating delivers high-temperature resistance and reduced tool wear
• Coolant-through design supports chip evacuation in deep cuts and high-feed applications
• 0.030-inch corner radius protects cutting edges and reduces stress concentration at part corners
• Chipbreaker geometry included for improved chip control in long-flute cuts

Compatibility

Designed as an OEM-style solid carbide end mill for use in CNC machining centers accepting a 0.5-inch straight cylindrical shank; part of the KENNAMETAL HARVI IV series.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Secure the shank in a properly sized collet or end mill holder torqued to the machine tool manufacturer's specification. Confirm runout with a dial indicator before starting a production run. This tool is not center-cutting and must not be used for direct plunge entry; use a ramping or helical entry strategy instead.
