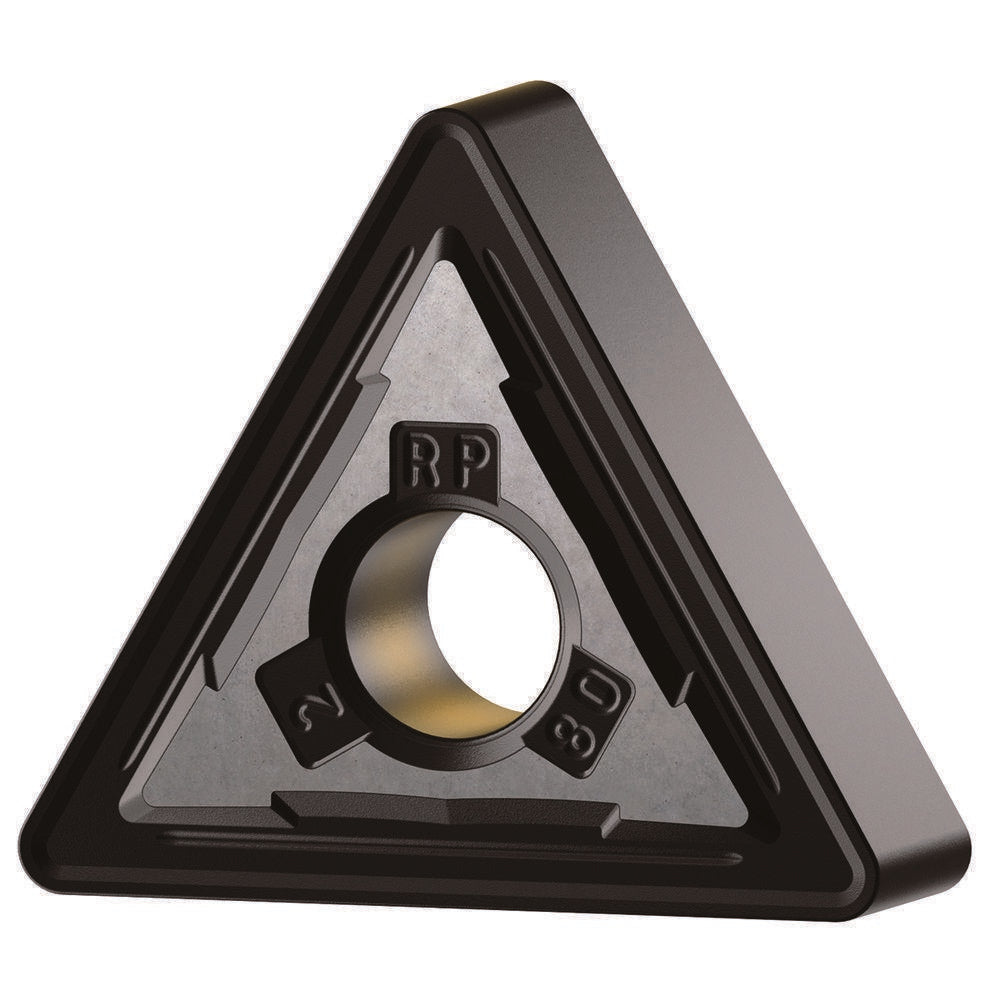

Kennametal 7090631 Tnmg Carbide Turning Insert 0.75 in Ic

Product Description

The KENNAMETAL 7090631 is a TNMG-style carbide turning insert designed for general metal cutting operations on CNC and manual lathes. This neutral-hand insert features a triangular shape with a 60-degree included angle, an inscribed circle of 0.75 inches (19.05 mm), and a corner radius of 0.0938 inches (3/32 inch, 2.38 mm). The KCU10B grade substrate is coated with AlTiN (aluminum titanium nitride) for improved heat resistance and wear life at elevated cutting speeds. Six cutting edges per insert help reduce per-edge tooling cost in production environments. Machinists and toolroom operators use this insert in standard TNMG toolholders.

This insert is suited for turning operations on steel, stainless steel, and similar workpiece materials in both roughing and finishing passes where the RP chip breaker geometry is appropriate. The AlTiN coating supports dry or semi-dry cutting conditions at higher surface speeds. With an insert thickness of 0.375 inches (9.53 mm) and an inscribed circle of 0.75 inches, this is a larger-format insert appropriate for medium to heavy material removal applications on industrial turning centers and engine lathes.

Key Features

• TNMG insert style with triangular shape and 60-degree included angle
• KCU10B carbide grade with AlTiN coating for heat and wear resistance
• Six usable cutting edges per insert
• RP chip breaker geometry for controlled chip formation
• Neutral hand orientation fits standard TNMG toolholders
• Corner radius of 0.0938 inches (3/32 inch) for general turning applications

Compatibility

Designed as an OEM-style replacement insert for standard TNMG toolholders accepting a 0.75-inch inscribed circle triangular carbide insert with a 3/8-inch insert thickness.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Ensure the lathe or turning center is powered down and the spindle is fully stopped before indexing or replacing inserts. Use the correct torque wrench and insert-clamping hardware specified by the toolholder manufacturer — do not overtighten or undertighten the clamping screw. Inspect the toolholder pocket and shim seat for wear or damage before seating a new insert.
