Kennametal 7090556 Cngg Diamond Turning Insert KCU10B

Product Description

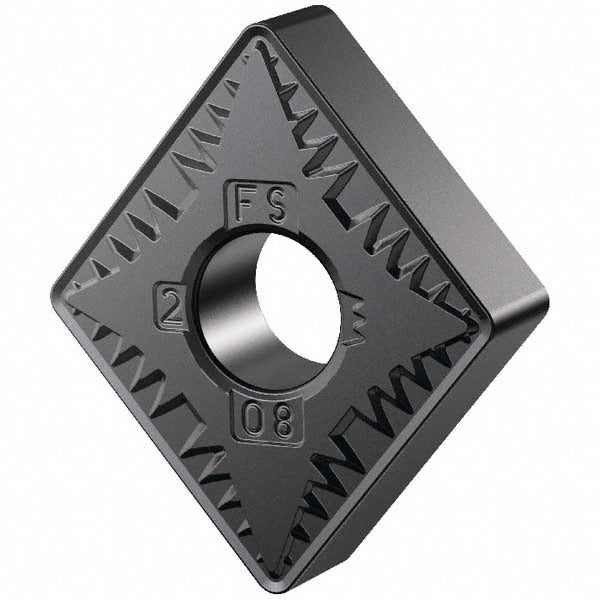

The KENNAMETAL 7090556 is a CNGG-style diamond turning insert designed for precision metal-cutting applications on CNC and manual lathes. Built from carbide substrate with an AlTiN (aluminum titanium nitride) coating and manufactured to grade KCU10B, this insert delivers thermal resistance and wear performance suited to interrupted and continuous turning operations. The diamond insert shape provides an 80-degree included angle with a 0.0157-inch corner radius, offering a balance of edge strength and surface finish capability. With four usable cutting edges per insert, it supports efficient tooling cost management in production environments.

This insert is used in turning operations on a range of ferrous and non-ferrous workpiece materials where a neutral-hand, CNGG geometry is specified. The FS chip breaker geometry assists with chip control during medium to light turning passes. It is suited for use in toolholders requiring a C-shape insert with a 1/2-inch inscribed circle. Machinists and tooling specialists working in production shops, job shops, and maintenance machining environments will find this insert applicable to external turning, facing, and profiling operations.

Key Features

• CNGG insert style with 80-degree diamond shape for strong cutting edge geometry
• AlTiN coating for elevated heat resistance and extended tool life in demanding cuts
• KCU10B carbide grade optimized for toughness and wear resistance
• Four cutting edges per insert for reduced per-edge tooling cost
• FS chip breaker design for effective chip control in medium to light turning
• Neutral hand orientation for broad toolholder compatibility

Compatibility

Designed for use in toolholders that accept CNGG-style inserts with a C insert shape code, 1/2-inch inscribed circle, 3/16-inch thickness, and N clearance with G tolerance. Verify toolholder specifications against insert size code 431 before installation.

Installation Notes
