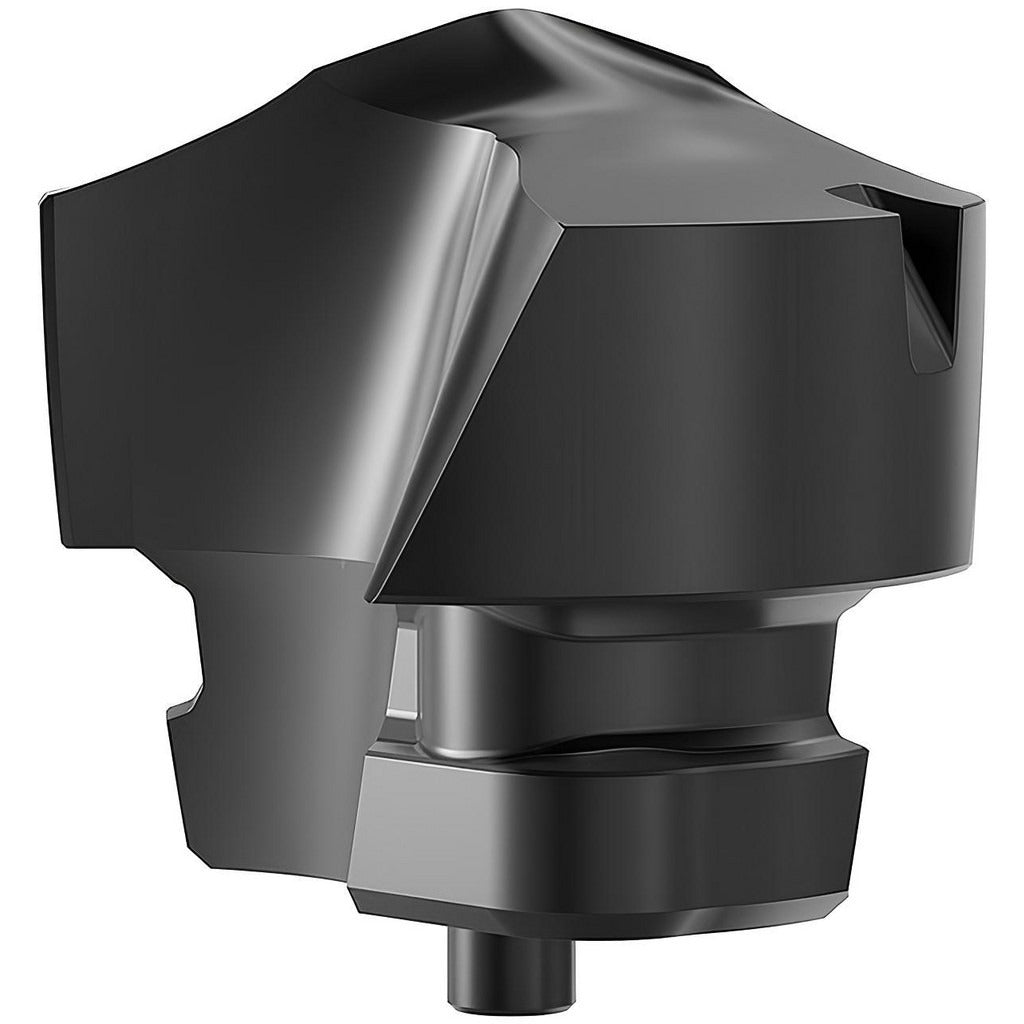

Kennametal 6388772 Replaceable Drill Tip 1 in KCP15A

Product Description

The KENNAMETAL 6388772 is a replaceable drill tip designed for use with KTFSS-series indexable drill bodies. Manufactured from fine-grain solid carbide in grade KCP15A and coated with AlTiN via a PVD process, this tip delivers wear resistance and heat tolerance in demanding cutting environments. It features a 180-degree point angle, helical flute geometry, and an HPG insert geometry profile. The cutting diameter is 1.0000 inches with a functional length of 0.5000 inches and an overall projection of 0.7114 inches. Installed by machinists and tool-and-die professionals, this tip uses a clamp-style insert holding method and fits the ZD insert seat size.

This replaceable drill tip is intended for drilling operations in steel and cast iron workpieces, covering both P and K material grades per ISO classification. It is suited for standard drilling as well as inclined-exit drilling and stacked-plate drilling applications. The two-flute, two-margin design without through-coolant makes it appropriate for setups where coolant-through tooling is not required. It carries ISO number KTFSS10000HPG and integrates directly with compatible KTFSS-series drill bodies.

Key Features

• Fine-grain solid carbide construction in manufacturer grade KCP15A for extended tool life in ferrous materials
• AlTiN coating applied via PVD process for elevated temperature and oxidation resistance
• 180-degree point angle with HPG insert geometry for accurate entry and chip control
• Helical, regular-spiral flute type with two flutes and two margins
• Clamp-style insert holding method with ZD seat size for secure, repeatable tip indexing
• Rated for inclined-exit and stacked-plate drilling in addition to standard drilling operations

Compatibility

Designed for use with KTFSS-series indexable drill bodies requiring a ZD insert seat and accepting ISO number KTFSS10000HPG replaceable tips. Compatible with primary workpiece materials classified as Steel (P) and Cast Iron (K) per ISO material codes.

Installation Notes

Installation should be performed by a qualified machinist following the drill body manufacturer's clamping procedure for replaceable tips. Ensure the spindle is fully stopped and the machine is locked out before indexing or replacing the tip. Seat the tip fully into the ZD pocket and verify clamp torque per the tool body documentation before resuming cutting. Do not exceed the tool body's rated speed and feed parameters for the selected workpiece material.
