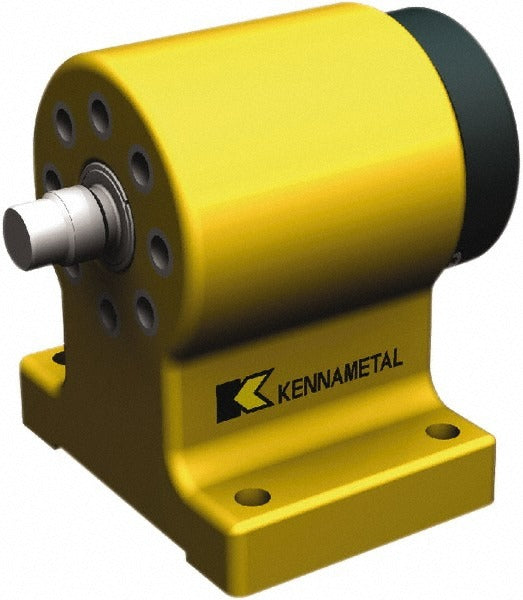

Kennametal 6303102 Tool Holder Tightening Fixture

Product Description

The KENNAMETAL 6303102 is a single-position tool holder tightening fixture designed for use in machine tool setup and maintenance environments. It accepts all taper styles, making it a versatile bench fixture for technicians who need a secure, repeatable platform for tightening or loosening tool holders. The unit measures 4.055 inches in base length, 5.51 inches in base width, and stands 5.906 inches in overall height. Weighing 3.65 pounds, it is a compact, bench-mountable fixture suited for toolroom and production floor use by machinists and tool crib personnel.

This fixture is used in toolrooms, CNC machine shops, and maintenance areas wherever tool holders require consistent torque application during assembly or disassembly. Its compatibility with all taper types means it can service a broad range of tool holder styles without requiring a dedicated fixture for each. It is appropriate for both single-operator bench use and shared toolroom environments. The single-position design keeps the footprint minimal while still delivering a stable base for tightening operations.

Key Features

• Compatible with all taper types, eliminating the need for multiple taper-specific fixtures
• Single-position design provides a focused, stable platform for tool holder service
• Base length of 4.055 inches and base width of 5.51 inches for a compact footprint
• Overall height of 5.906 inches accommodates standard tool holder profiles
• Lightweight at 3.65 pounds for easy repositioning on the bench

Compatibility

Designed as an OEM-style tightening fixture compatible with all taper tool holders, suitable for general toolroom and machine shop applications.

Installation Notes

Installation and use of this fixture should be performed by qualified machinists or tool crib technicians familiar with tool holder assembly procedures. Ensure the fixture is placed on a stable, level work surface before use. Always power down and lock out any associated machine tool before removing or installing tool holders. Follow the tool holder and spindle manufacturer guidelines for appropriate torque procedures.
