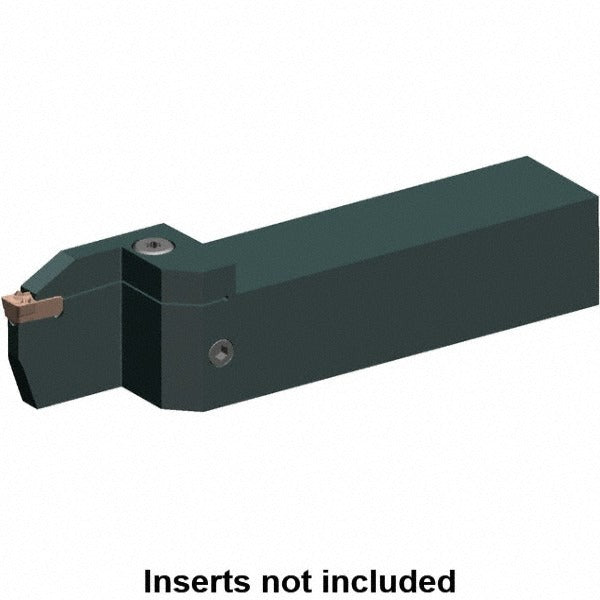

Kennametal 5956541 Indexable Cutoff Toolholder Right Hand

Product Description

The KENNAMETAL 5956541 is a right-hand indexable cutoff toolholder designed for parting and grooving operations on CNC lathes and turning centers. Part of the Beyond Evolution series, it accepts EG0200M02P02 inserts secured by a clamp-style insert holding method. The toolholder features a 3/4 x 3/4 inch shank and an overall length of 4.5 inches. It handles a maximum depth of cut of 22 mm and supports workpieces up to 44 mm in diameter. Machinists and CNC operators working in production turning environments install this holder as a direct OEM-grade solution for precision cutoff work.

This toolholder is suited for right-hand turning setups in both job-shop and production environments. The EVSM toolholder style and 1.55 mm blade width make it appropriate for tight-tolerance parting applications where minimal kerf and repeatable insert indexing are required. It is compatible with coolant-directed setups, though the unit itself does not include through-coolant capability. Typical applications include bar stock parting, workpiece cutoff, and shallow grooving on small to mid-range diameter stock up to 44 mm.

Key Features

• Right-hand orientation with EVSM toolholder style for standard OD parting setups
• Clamp-style insert retention for secure, repeatable indexing of EG0200M02P02 inserts
• Maximum depth of cut of 22 mm suitable for stock up to 44 mm diameter
• 3/4 x 3/4 inch shank cross-section fits common lathe turret pockets
• Blade width of 1.55 mm minimizes material loss per cutoff pass
• Beyond Evolution series construction with Kennametal coating classification

Compatibility

Designed for use with EG0200M02P02 inserts, insert seat size 2. Compatible insert size code is EG0200M02P02 as specified by the manufacturer for the Beyond Evolution series EVSM toolholder style.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Power down and lock out the machine spindle before inserting or indexing the toolholder into the turret. Ensure the shank seating surfaces are clean and free of chips before tightening. Follow the machine tool manufacturer torque specifications for turret clamping bolts, and verify tool centerline height before running the first part.
