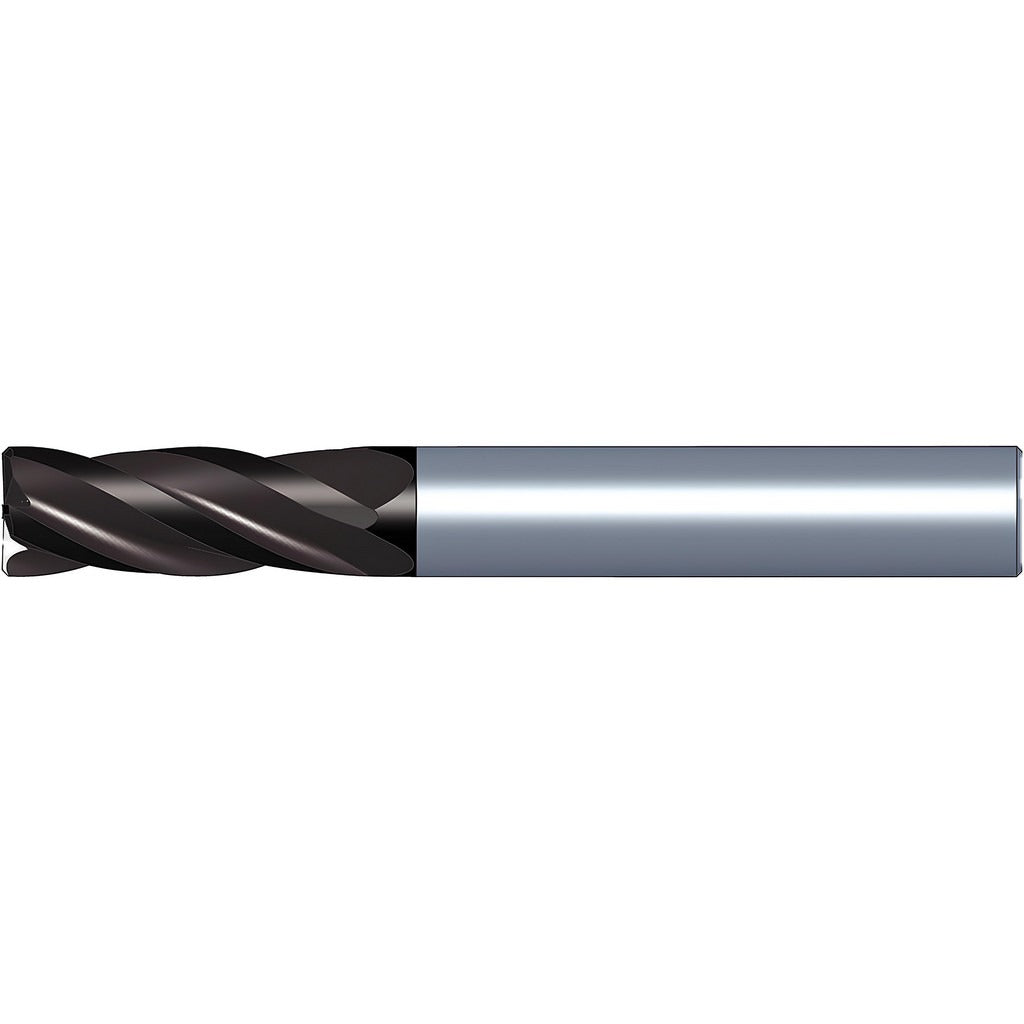

Kennametal 5824176 Corner Chamfer End Mill 5.50mm 4 Flute

Product Description

The KENNAMETAL 5824176 is a solid carbide corner chamfer end mill designed for precision material removal in demanding machining environments. Built to the Series 4CH standard, it features a 5.50 mm diameter, a 13.00 mm length of cut, and four right-hand helical flutes with a 30-degree helix angle. A TiN/TiAlN PVD coating provides heat and wear resistance across a wide range of workpiece materials. The 0.10 mm chamfer width at 45 degrees edges the corner geometry for controlled chamfering and finishing passes. This tool is intended for use by machinists and toolroom professionals running CNC milling operations.

This end mill is suited for both roughing and finishing operations on steel, stainless steel, cast iron, and non-ferrous metals. Its centercutting geometry supports ramp-down entry, helical interpolation, plunging, recessing, drill-mill operations, shouldering, and slotting. The straight-cylindrical shank seats securely in standard collet or end mill holders. With a 6.00 mm shank diameter and 57.00 mm overall length, it fits compact to mid-size machining centers and CNC mills running moderate-depth cavity and profiling work.

Key Features

• Solid carbide construction in material grade KC633M for rigidity and edge retention
• TiN/TiAlN PVD coating for extended tool life on steel and stainless steel
• 0.10 mm chamfer width at 45 degrees for consistent corner geometry
• Centercutting design enables ramp-down, plunge, and helical interpolation entry
• Four right-hand flutes with normal pitch and medium helix style for chip evacuation
• Supports shouldering, slotting, drill-mill, and recessing operations (Series 4CH)

Compatibility

Designed for use on steel, stainless steel, cast iron, and non-ferrous metals (material codes P, M, K, N). Also listed under manufacturer catalog number 4CH0550DL013A. Suitable for standard straight-cylindrical collet and end mill holder systems accepting a 6.00 mm shank.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Ensure the machine spindle is fully stopped and the tool changer is in a safe state before loading or unloading. Seat the shank fully into the holder and torque the collet nut according to the holder manufacturer specification. Verify runout with a dial indicator before cutting, as the mill diameter tolerance is -0.020 to -0.038 mm and shank diameter tolerance is +0.000 to -0.008 mm.
