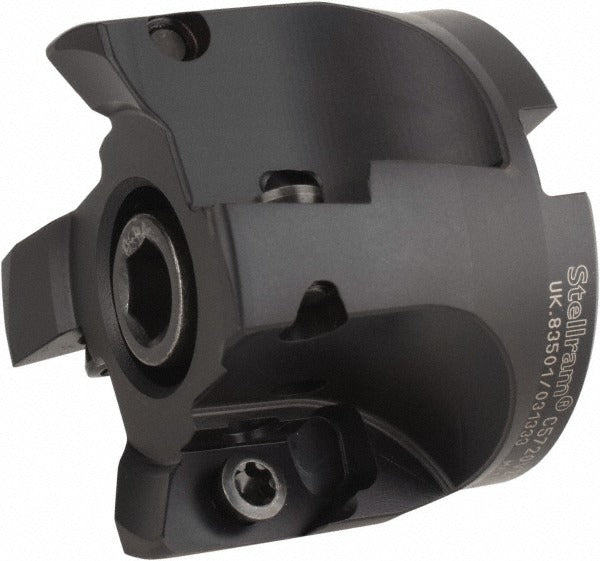

Kennametal 5672871 High-feed Face Mill 2 in 4 Insert

Product Description

The KENNAMETAL 5672871 is an indexable high-feed face mill designed for aggressive material removal in milling applications. With a 2-inch cutting diameter and a maximum depth of cut of 0.63 inches, this cutter is built for high-feed-rate operations where cycle time reduction is a priority. It accepts 4 ZDET16M-series inserts and mounts via a 0.75-inch arbor hole. The overall height is 1.574 inches. This tool is intended for use by machinists and tooling engineers working on CNC machining centers in production or job-shop environments.

This face mill is suited for high-feed milling on ferrous and non-ferrous materials in both roughing and semi-finishing operations. The 4-insert configuration at a 2-inch diameter provides balanced cutting forces at elevated feed rates. It fits standard arbor toolholders with a 0.75-inch bore and belongs to the KENNAMETAL 5720VZ series, a cutter family designed specifically for high-feed indexable applications on horizontal and vertical machining centers.

Key Features

• 2-inch cutting diameter suited for high-feed face milling passes
• Maximum depth of cut of 0.63 inches supports aggressive single-pass material removal
• Accepts 4 ZDET16M-series indexable inserts for quick edge changes without removing the body
• 0.75-inch arbor hole diameter for compatibility with standard arbor toolholding systems
• 1.574-inch overall height provides compact clearance in tight spindle configurations
• Part of the KENNAMETAL 5720VZ series, cutter style C5720VZ16-A2.00Z4R

Compatibility

Designed for use with ZDET16M-series indexable inserts. Cutter style designation is C5720VZ16-A2.00Z4R within the KENNAMETAL 5720VZ series. Fits toolholders with a 0.75-inch arbor bore.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before mounting or removing the cutter body. Confirm arbor and drawbar torque specifications per the machine tool manufacturer guidelines before operation. Inspect insert seating and clamping screws for proper engagement before each run.
