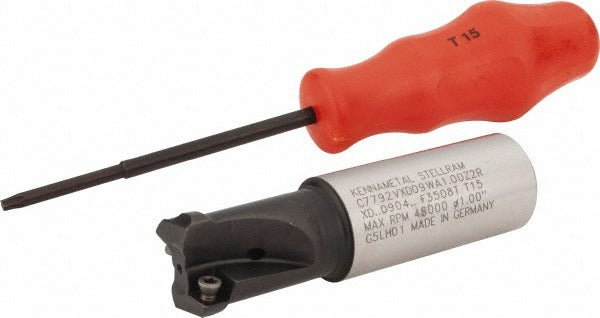

Kennametal 5658075 High-feed End Mill 1 in Weldon Flat

Product Description

The KENNAMETAL 5658075 is an indexable high-feed end mill designed for aggressive material removal in milling applications. Built on a 1.0-inch Weldon Flat shank, this tool accepts two XDLT0904 inserts and supports a maximum depth of cut of 0.059 inches per pass. The overall length measures 3.856 inches, making it a compact, rigid platform suited for high-feed milling strategies in CNC machining centers. It belongs to the Series 7792 toolholder family and carries the toolholder style designation C7792VXD09WA1.00Z02R. Installation and indexing are performed by machining professionals and toolroom technicians running production or job-shop operations.

This end mill is intended for use in CNC vertical and horizontal machining centers where high-feed, low-depth-of-cut strategies are required. High-feed milling reduces radial and axial cutting forces, which extends spindle and machine life while improving cycle times. The 1.0-inch cutting diameter and Weldon Flat shank make it compatible with standard end mill holders and Weldon-style collet systems. It is appropriate for both roughing and semi-finishing passes in steel, stainless, cast iron, and similar workpiece materials depending on insert grade selection.

Key Features

• 1.0-inch cutting diameter with a matching 1.0-inch Weldon Flat shank for secure, repeatable seating
• Accepts two XDLT0904 indexable inserts for fast, in-machine insert changes without tool removal
• Maximum depth of cut of 0.059 inches supports high-feed, low-engagement milling strategies
• 3.856-inch overall length provides a compact, low-overhang profile to minimize vibration
• Series 7792 platform with toolholder style C7792VXD09WA1.00Z02R for organized toolcrib management
• Weighs 0.648 pounds — lightweight for its diameter class, reducing spindle load

Compatibility

Designed for use with XDLT0904 series indexable inserts. Fits standard Weldon Flat end mill holders with a 1.0-inch bore. Part of the KENNAMETAL Series 7792 high-feed milling system.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Secure the Weldon Flat shank fully in the holder bore and tighten the set screw to the holder manufacturer's specified torque before use. Inspect each XDLT0904 insert seat and seating pocket for chips or debris before indexing or replacing inserts. Power down and lock out the spindle before any insert change or tool adjustment in accordance with applicable machine safety procedures.
