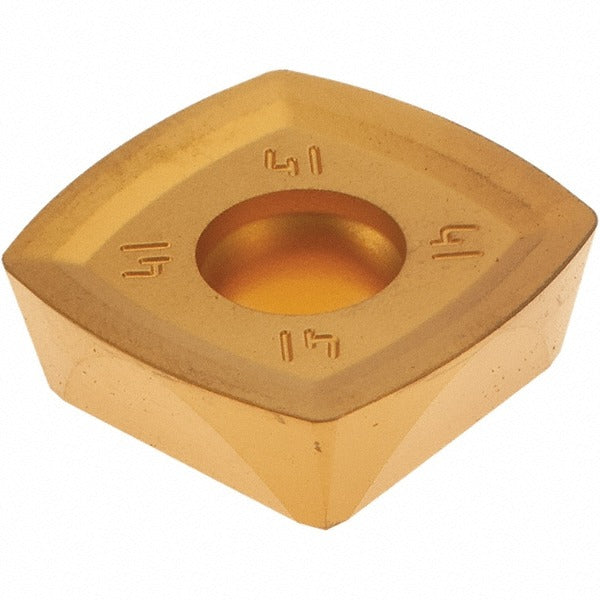

Kennametal 5653139 Milling Insert X500 Solid Carbide Square

Product Description

The KENNAMETAL 5653139 is a solid carbide milling insert in the XELT series, grade X500, designed for high-performance metal cutting in demanding milling applications. The insert features a square shape with a right-hand cutting orientation and provides four usable cutting edges per insert, extending tool life between changes. A CVD-applied TiN/TiC/TiN multilayer coating improves wear resistance and heat tolerance at the cutting zone. With a positive rake geometry and honed cutting edge style, the 5653139 is suited for productive cutting in steel, stainless steel, and superalloy or titanium workpieces. Licensed HVAC and metalworking professionals installing precision components will recognize this as an OEM-matched consumable for compatible cutter bodies.

This insert is intended for use in ferrous and high-temperature alloy milling operations, including roughing and finishing passes on steel and stainless steel components, as well as superalloys and titanium. The D41 chip breaker geometry manages chip flow effectively across these material groups. The insert mounts via screw-holding method and is confirmed compatible with the Kennametal 7792VXE16 cutter series. It carries both ANSI and ISO designations, making it straightforward to cross-reference on engineering drawings or maintenance logs.

Key Features

• Grade X500 solid carbide substrate with CVD-applied TiN/TiC/TiN multilayer coating for extended wear life
• Square insert shape with four cutting edges, maximizing index count per insert
• Positive rake angle with honed cutting edge reduces cutting forces on steel, stainless steel, superalloys, and titanium
• D41 chip breaker geometry supports controlled chip evacuation across primary workpiece material types
• ANSI and ISO dual-standard designation (XELT160512ERD41) simplifies procurement and drawing cross-reference
• Screw-holding mount for secure, repeatable seating in compatible cutter bodies

Compatibility

Confirmed compatible with the Kennametal 7792VXE16 cutter series. ANSI and ISO code XELT160512ERD41 can be used to verify fit with other XELT-series cutter bodies designed for size 16 square inserts.

Installation Notes

Milling insert replacement is performed by machining technicians or toolroom personnel with the spindle locked out and all machine power isolated per applicable shop safety procedures. Use the specified torque wrench and insert screw recommended by the cutter body manufacturer when seating the insert — do not over-tighten or substitute fasteners. Inspect the insert pocket and clamping screw threads for damage before indexing or replacing inserts. Dispose of worn carbide inserts according to applicable local regulations for metallic waste.
