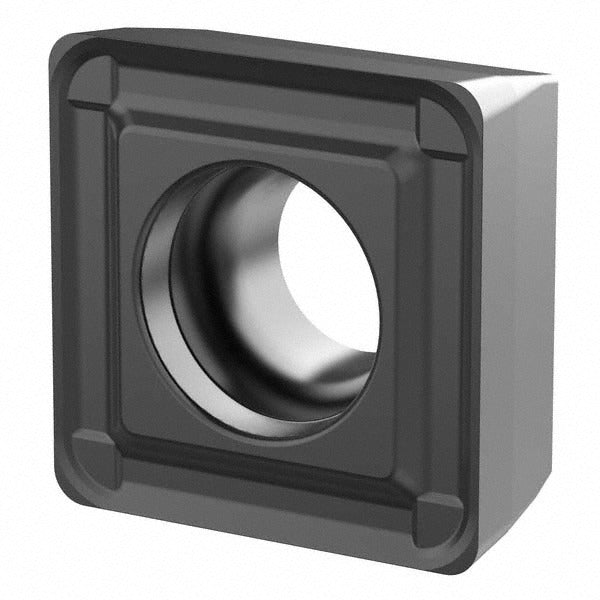

Kennametal 5534231 Spgx KCU40 Indexable Drill Insert

Product Description

The KENNAMETAL 5534231 is a solid carbide indexable drill insert in the SPGX style, designed for use in compatible indexable drill bodies in metalcutting applications. It carries the KCU40 manufacturer grade and features a PVD-applied TiN and TiAlN coating for wear resistance and thermal stability during high-speed drilling operations. The square insert shape with an 11-degree relief angle supports clean chip evacuation and controlled cutting geometry. The RHP chipbreaker promotes efficient chip formation across a range of workpiece materials. This insert is installed by machinists and toolroom technicians operating CNC or manual drilling setups.

This insert is suited for production drilling in ferrous and non-ferrous materials where indexable tooling is preferred for repeatability and insert changeout efficiency. The right-hand cutting direction and SPGX geometry make it appropriate for center and peripheral insert positions in compatible indexable drill bodies. Each package contains one insert, with a minimum order quantity of five units per purchase.

Key Features

• Solid carbide substrate with KCU40 grade for toughness and wear resistance
• PVD-applied TiN and TiAlN multilayer coating for thermal and abrasion resistance
• SPGX insert style, square shape with 11-degree relief angle
• RHP chipbreaker geometry for controlled chip formation
• Right-hand cutting direction
• Inscribed circle of 0.3126 inches (7.94 mm) with a 0.0157-inch (0.40 mm) corner radius

Compatibility

Designed as an OEM-style replacement indexable drill insert for compatible SPGX-style indexable drill bodies requiring a square, right-hand insert in KCU40 grade.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Before changing inserts, power down and lock out the machine spindle in accordance with facility LOTO procedures. Use the appropriate torx or hex key to secure the insert clamp to the specified seating torque listed in the drill body documentation. Inspect the insert pocket and clamp for wear or damage before seating the new insert.
