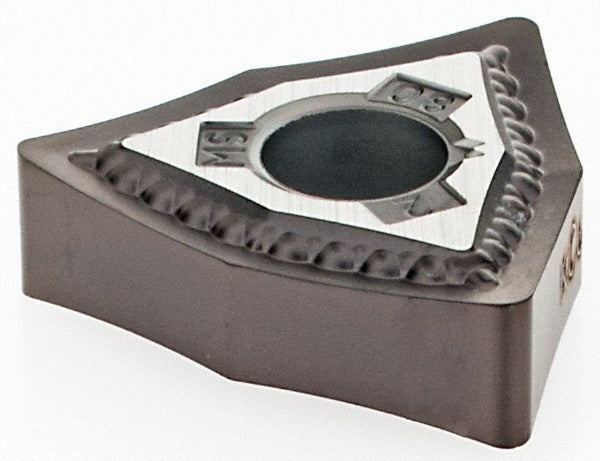

Kennametal 5090894 WNMG432MS KCU10 Turning Insert

Product Description

The KENNAMETAL 5090894 is a solid carbide turning insert in the WNMG432MS geometry, grade KCU10, with a PVD-applied TiAlN coating. It belongs to the KENLOC series and features an 80-degree trigon (W-shape) with a neutral hand orientation and negative rake and side clearance. The inscribed circle measures 0.5 inches, the corner radius is 0.03125 inches (1/32 inches), and insert thickness is 0.1875 inches. With six cutting edges and a honed cutting edge style, this insert delivers high wear resistance to moderate wear resistance and toughness across a range of workpiece materials. It is suited for roughing and medium machining operations and is compatible with clamp and pin holding methods.

This insert is designed for turning, facing, and boring operations on steel, stainless steel, cast iron, superalloys, titanium, aluminum, and non-ferrous materials. The MS chip breaker geometry supports both roughing and medium machining, making the insert a versatile choice for production turning where consistent performance across multiple material categories is required. Licensed machinists and CNC turning center operators working in job shops, aerospace, and general metalworking environments are the primary installers and users of this insert.

Key Features

• WNMG432MS geometry with 80-degree trigon shape and negative rake for stable, controlled cutting
• KCU10 grade with PVD TiAlN coating for high wear resistance on steel, stainless steel, and cast iron
• Six cutting edges per insert for extended tool life and lower cost per edge
• MS chip breaker supports roughing and medium machining applications
• Compatible with clamp and pin insert holding methods in KENLOC toolholders
• Conforms to ANSI (WNMG432) and ISO (WNMG080408MS) insert standards

Compatibility

Designed for use in KENLOC series toolholders that accept WNMG-style inserts with clamp or pin holding. Conforms to ANSI insert code WNMG432 and ISO insert code WNMG080408MS. Multi-use application covers turning, facing, and boring operations.

Installation Notes

Insert installation and indexing should be performed by a qualified machinist or CNC operator with the spindle fully stopped and the machine in a safe, locked-out state. Seat the insert firmly against the toolholder pocket before engaging the clamp or pin to avoid seating errors that can cause edge breakage. Inspect the insert pocket and clamp mechanism for wear or debris before each insert change. Follow the toolholder manufacturer's clamping torque specifications and do not exceed the maximum depth of cut of 0.2278 inches to maintain edge integrity.
