Kennametal 5090685 DNMG332MS KCU10 Carbide Turning Insert

Product Description

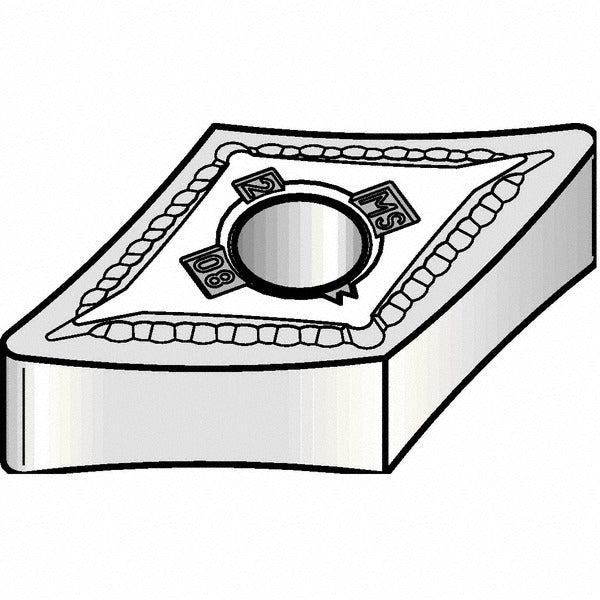

The KENNAMETAL 5090685 is a solid carbide turning insert in the DNMG332MS geometry, grade KCU10, finished with a PVD-applied TiAlN coating. It carries a 55-degree diamond (rhombic) shape, a neutral hand orientation, and a negative rake and side clearance configuration. The insert measures 0.9156 inches in length with a 3/8-inch inscribed circle, a 3/16-inch thickness, and a 1/32-inch corner radius. Four cutting edges are available per insert. The MS chip breaker geometry is optimized for roughing and medium machining operations. Licensed machinists and CNC turning specialists install this insert in KENLOC-compatible toolholders for high-productivity material removal.

This insert is suited for turning, facing, boring, back turning, and back boring operations on steel, stainless steel, cast iron, superalloys, and titanium. The KCU10 grade delivers high wear resistance to moderate wear resistance with toughness across P, M, K, N, S, and H workpiece material classifications. It is appropriate for both light-production and high-demand roughing passes in industrial CNC turning centers and manual lathes where a DNMG-style insert seat and clamp or pin holding method are used. Maximum depth of cut is 0.200 inches (5.08 mm).

Key Features

• DNMG332MS geometry with 55-degree diamond shape and negative rake for strong edge support
• KCU10 grade with PVD TiAlN coating for wear resistance across steel, stainless steel, and superalloys
• MS chip breaker designed for roughing and medium machining chip control
• Four usable cutting edges per insert, reducing per-edge tooling cost
• Compatible with clamp and pin insert holding methods
• Honed cutting edge style for consistent surface finish and edge stability
• Conforms to ANSI (DNMG332) and ISO (DNMG110408) insert standards

Compatibility

Designed for use in KENLOC-series toolholders that accept DNMG-style inserts with a clamp or pin holding method. Conforms to ANSI insert code DNMG332 and ISO insert code DNMG110408, making it interchangeable with any toolholder seat dimensioned to those standards.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before indexing or replacing inserts. Use the correct torque tool for the clamping screw as specified by the toolholder manufacturer — do not overtighten. Inspect the insert seat and chip pocket for debris before seating a new cutting edge.
