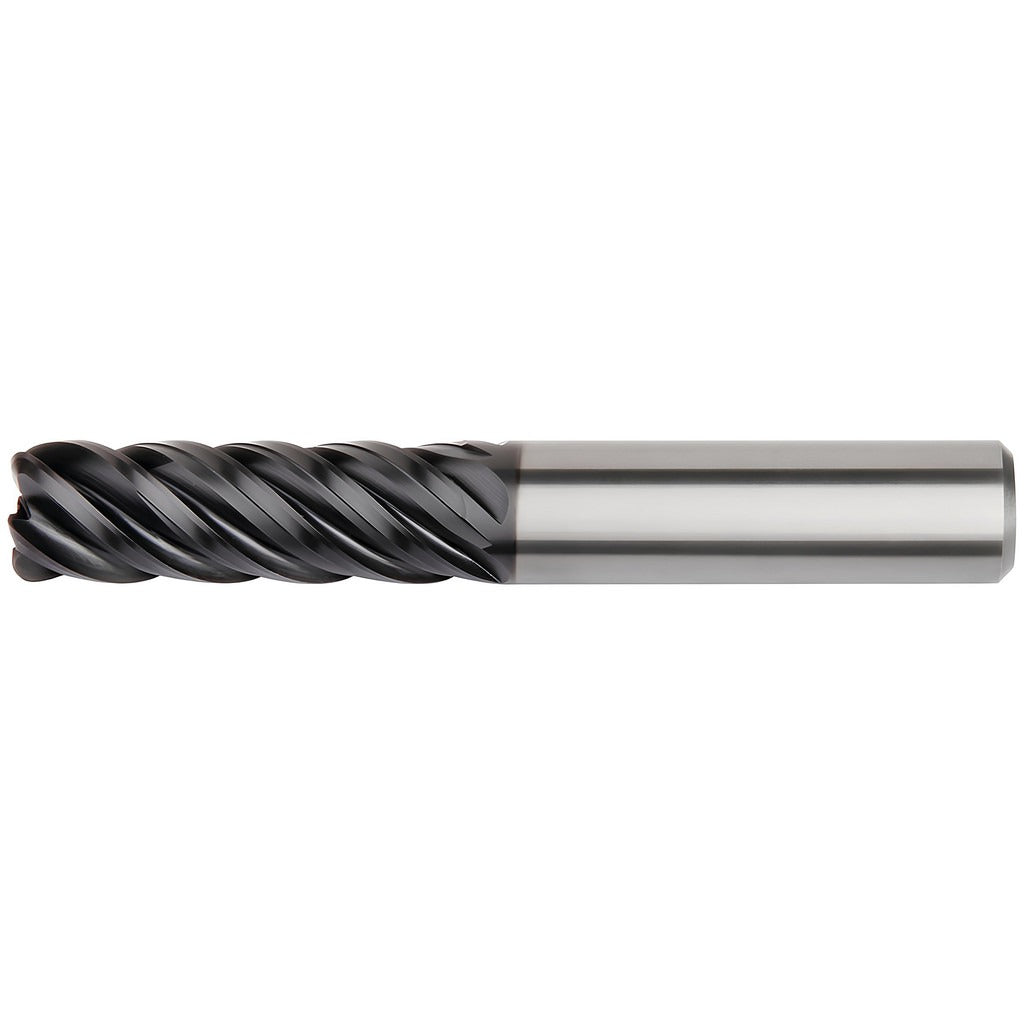

Kennametal 5060120 Corner Radius End Mill 1in 5 Flute Altin

Product Description

The KENNAMETAL 5060120 is a solid carbide corner radius end mill designed for high-performance material removal in demanding machining environments. Built to the UGDE series standard, it carries a 1 inch cutting diameter, a 3 inch length of cut, and a 0.06 inch corner radius that reduces stress concentrations at the cutting edge. The five-flute geometry supports both roughing and finishing passes in a single tool, and the AlTiN PVD coating provides thermal resistance and extended tool life at elevated cutting speeds. With a 6 inch overall length and extended reach design, this end mill suits deep-pocket and contour work where tool clearance is critical.

This end mill is engineered for use on steel, stainless steel, cast iron, superalloys, titanium, and hard materials. It is suited for CNC machining centers running right-hand cutting spindles. The straight cylindrical shank is compatible with HC-HSK Form A, HC-CV Form AD, and ER single angle standard collet toolholding systems. The high helix angle at 43 degrees promotes efficient chip evacuation during continuous cuts in tough alloys. Typical applications include aerospace, die and mold, and general precision machining where consistent edge geometry and tight tolerances are required.

Key Features

• 1 inch cutting diameter with 0.06 inch corner radius for reduced edge chipping and improved surface finish
• 5-flute configuration supports both roughing and finishing in steel, stainless, cast iron, superalloys, and hard materials
• AlTiN PVD coating provides high-temperature wear resistance for dry and semi-dry cutting
• 43-degree high helix angle promotes efficient chip evacuation in deep pockets
• Extended reach design with 3 inch reach length accommodates deep-pocket milling applications
• Submicron carbide grade delivers edge stability in hard and abrasive workpiece materials

Compatibility

Compatible with HC-HSK Form A, HC-CV Form AD, and ER single angle standard collet toolholding systems. Intended for right-hand cutting CNC spindles. Primary workpiece materials include steel, stainless steel, cast iron, superalloys, titanium, and hard materials.

Installation Notes

Installation should be performed by a qualified CNC machinist or tooling technician. Ensure the machine spindle is fully stopped and the tool changer is in a safe state before mounting or removing the end mill. Secure the straight cylindrical shank in a collet or toolholder to the torque specification of the toolholding system manufacturer. Verify runout with a dial indicator after mounting to confirm concentricity before cutting.
